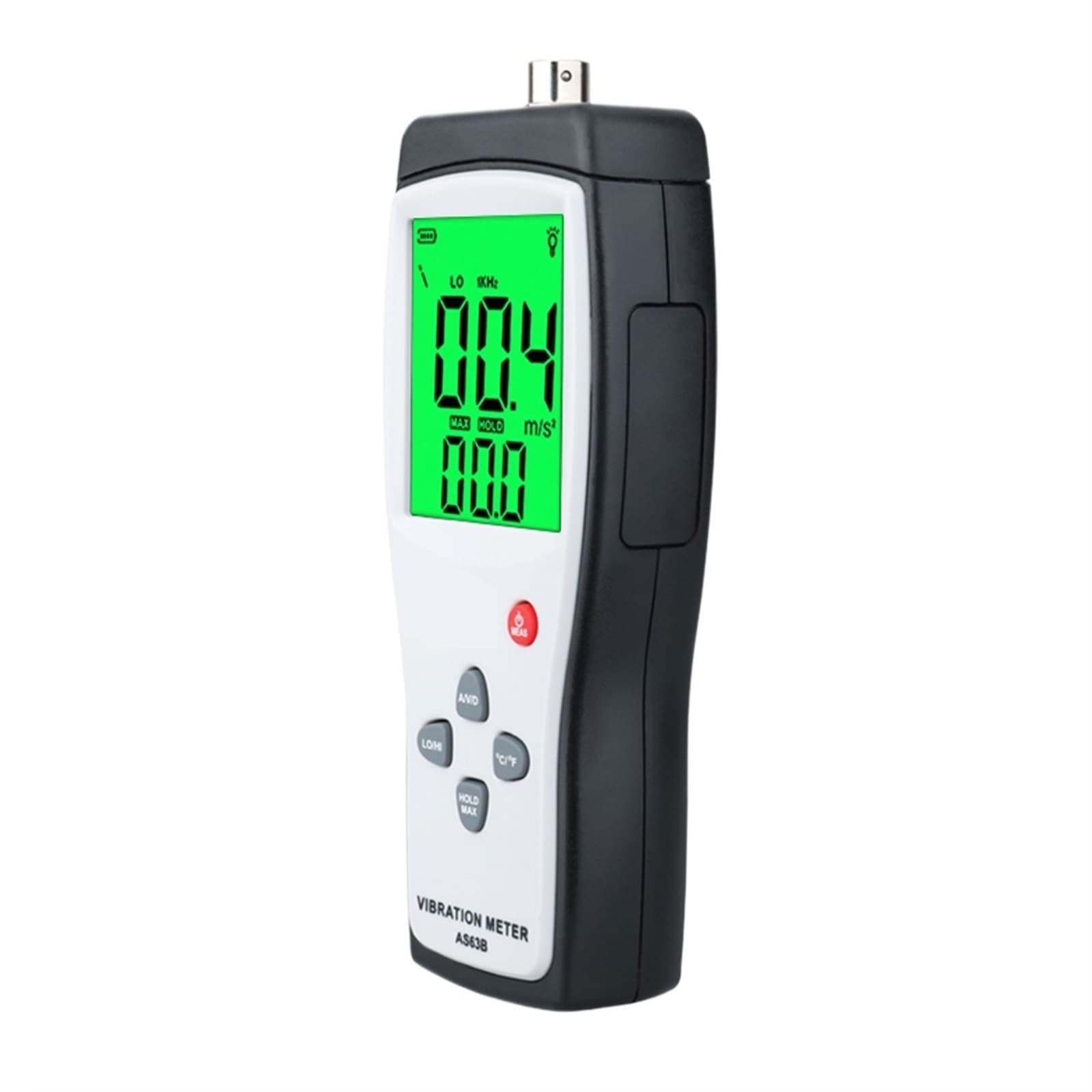

AS63B Digital Vibration Meter 10HZ~1KHZ 0.1~199.9m/s Precision Vibration Measurer Tester Gauge Analyzer

What is a vibration meter? A vibration meter is a device used to measure the amplitude, frequency, and acceleration of vibrations in machinery and equipment. It helps in assessing the condition of machinery by detecting imbalances, misalignments, or other issues that could affect performance. This tool is commonly used in industrial maintenance and quality control to ensure equipment runs smoothly and efficiently. Technical Specification: Piezoelectric ceramic accelerometer (shear-type) Measurement range of acceleration 0.1~199.9m/s2 peak Measurement range of velocity 0.1~199.9mm/s rms Measurement range of displacement 0.001~1.999mm p-p (Velocity and displacement range is limited by acceleration199.9m/s2) Measurement accuracy ±5%+2digits Measurement frequency range of acceleration 10Hz~1KHz (LO) 1KHz~15KHz (HI) Measurement frequency range of velocity 10Hz~1KHz (LO) Measurement frequency range of displacement 10Hz~1KHz (LO) Displays update cycle 1 seconds LCD display 3 1/2 digits display Auto power-off function Turns off automatically after 60 seconds LCD backlight function 7 seconds Operating temperature range 0~40 Operating humidity range 30~90%RH Low battery indication 6.4V±0.2V Product Dimensions 70x30x150mm Product Weight 137g
