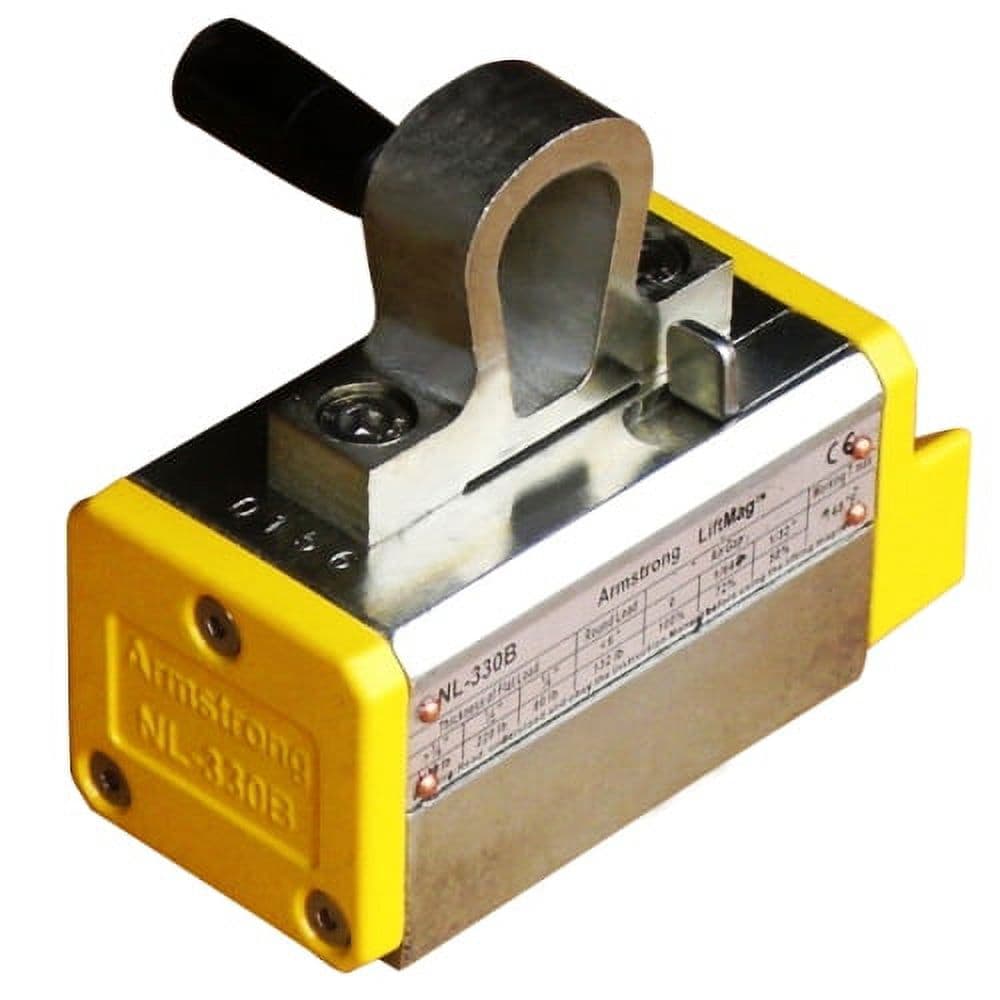

Armstrong Lifting Magnet NL-330B(2) Magnetic Lifter, 330 lb Max. Lift Capacity (990 lbs Break Away Force), Limited Lifetime Waranty

Main Body Length (L) = 5.2" Main Body Width (B) =2.4" Main Body Height (H1) =2.4" Overall Width With Handle (B1) = 6.5" Hoist Ring Height (H2) = 2.0" Bail Opening (CxF) = 0.94"x1.45", Unit Weight = 5.5 lbs Rated Capacity For Flat = 330 lbs, Min. Load Thickness For Rated Capacity = 3/4", Break Off Force Tested at 3" Flat Plate = 990 lbs, Not work if Load Thickness is less than 1/8" Rated Capacity For Round = 132 lbs, Max. Load Diameter for Round = 6" Rated Lifting Capacity at Safety Factor of 3:1 at least, exceeding ASME B30.20. compliance. All Armstrong LiftMag NL-B series Lifting Magnets have Limited Lifetime Warranty. Please check out our Walmart store for more Armstrong Magnetics' lifting magnet products.
