ARCCAPTAIN CUT55 Pilot Digital Cutter sku-11916701699

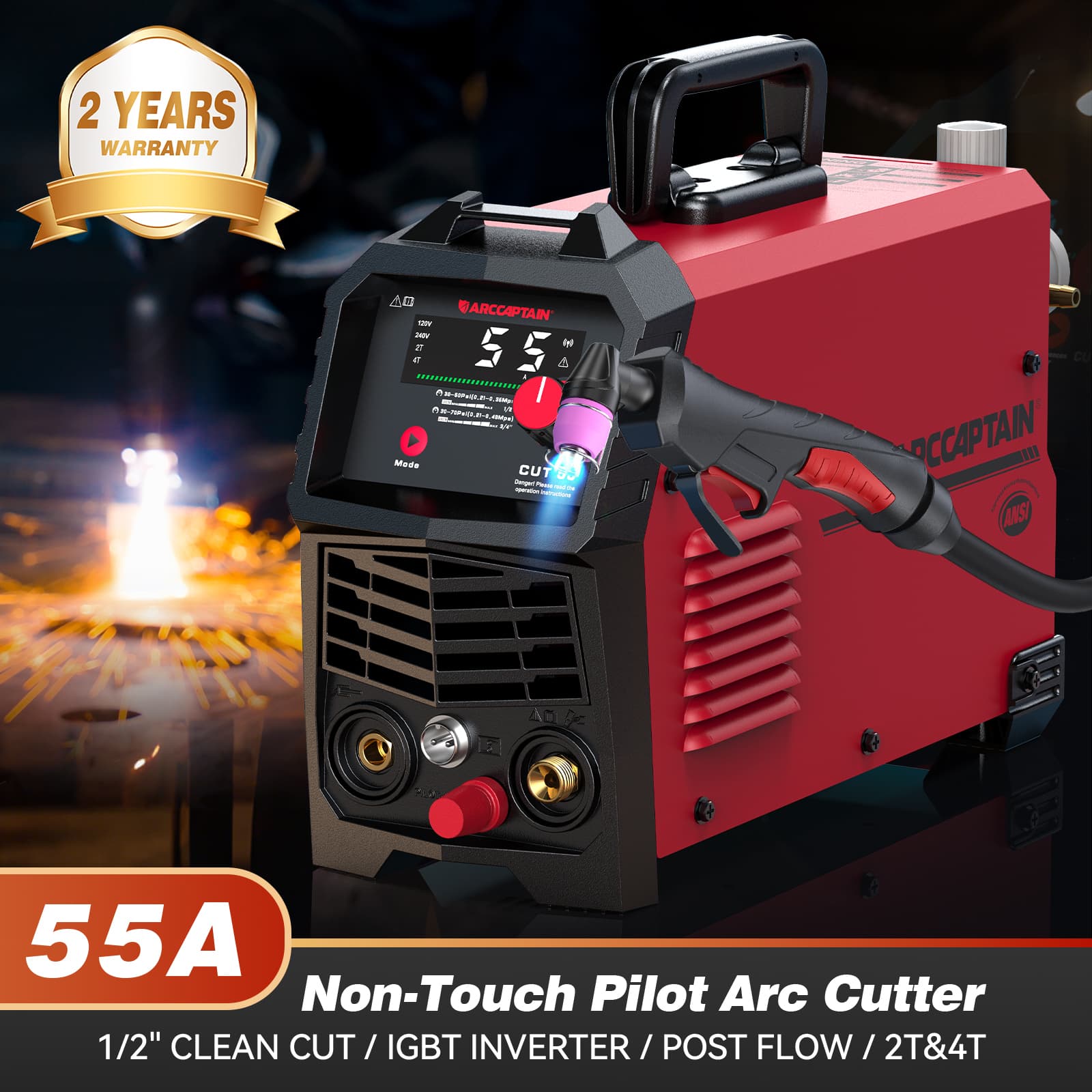

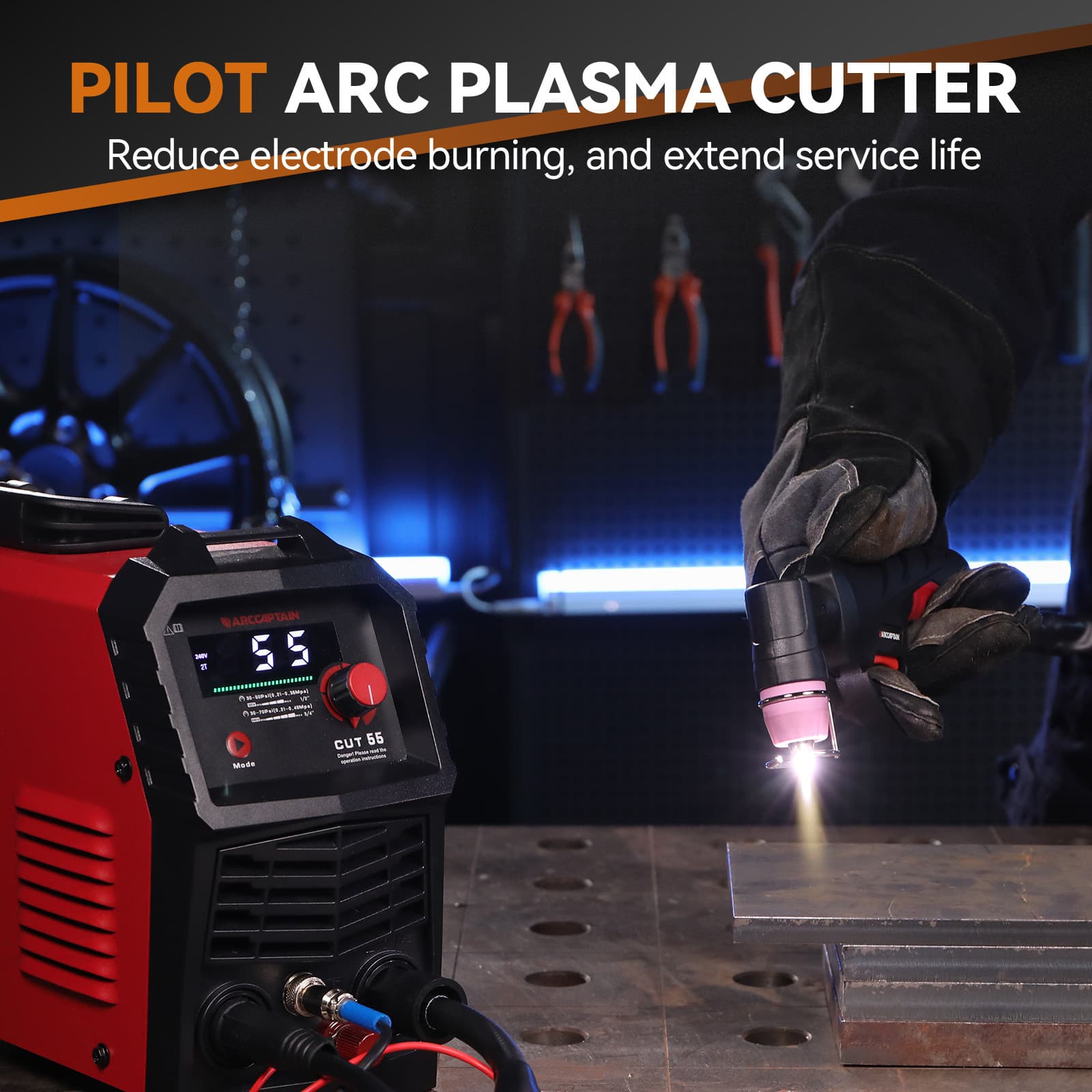

The ARCCAPTAIN CUT55 Pilot Digital is a Red, One Size Metal Cutting plasma cutter (sku-11916701699; UPC 717331555238). Its high-frequency, non-touch pilot arc ignites without the torch head contacting the metal, reducing electrode wear and helping consumables last longer. Keep the machine powered off until the screen goes dark and the fan stops.

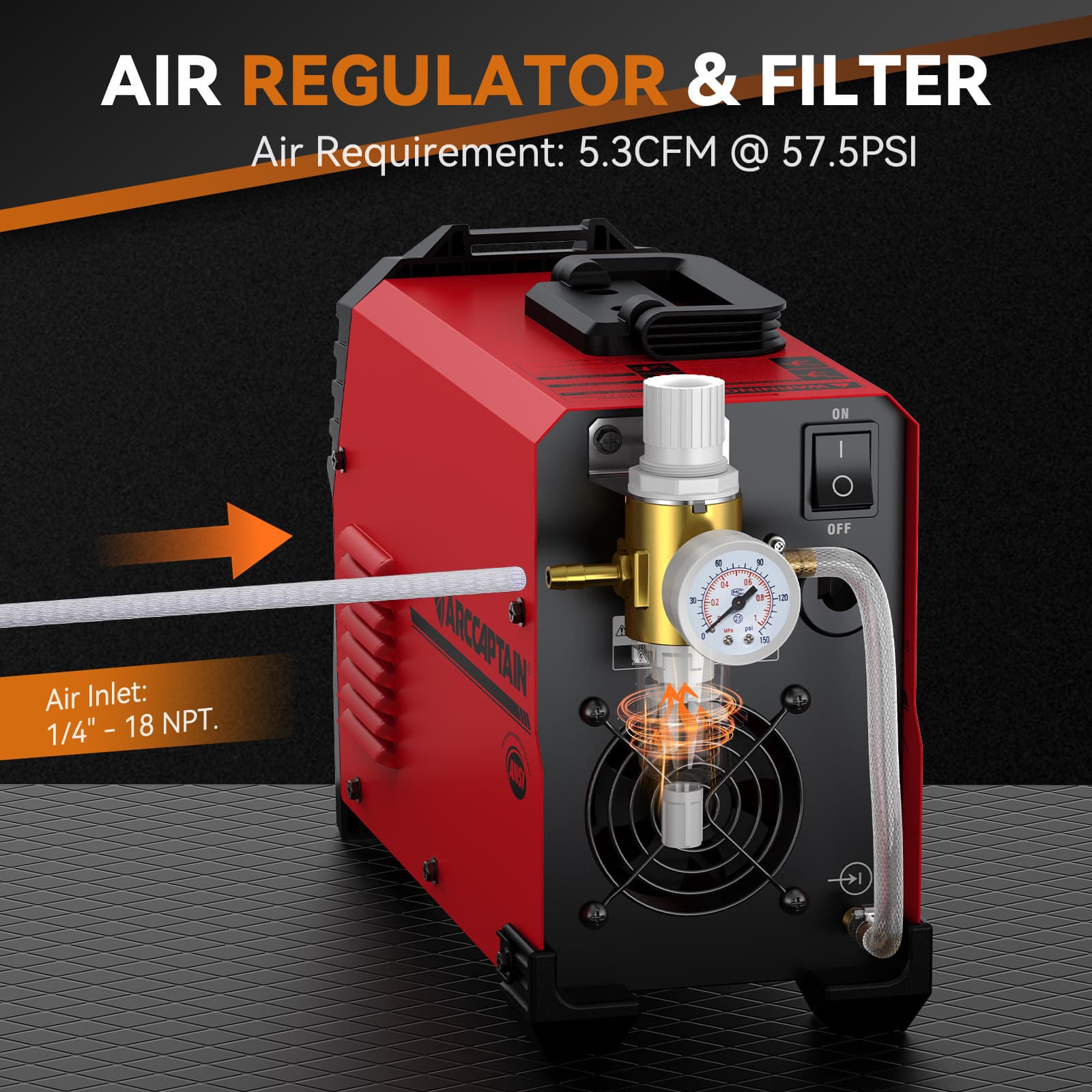

An internal air pressure sensor and built-in regulator allow pressure adjustment. The rear air filter has a 1/4"-18 NPT connection; recommended compressor settings are 90 PSI and 6.5 CFM. The machine uses an AG60 plasma torch. Preset settings include 60 PSI air pressure and 5 seconds of post-flow. Select 120V or 240V and adjust the current dial to cut; 2T/4T automatic cutting modes are available.

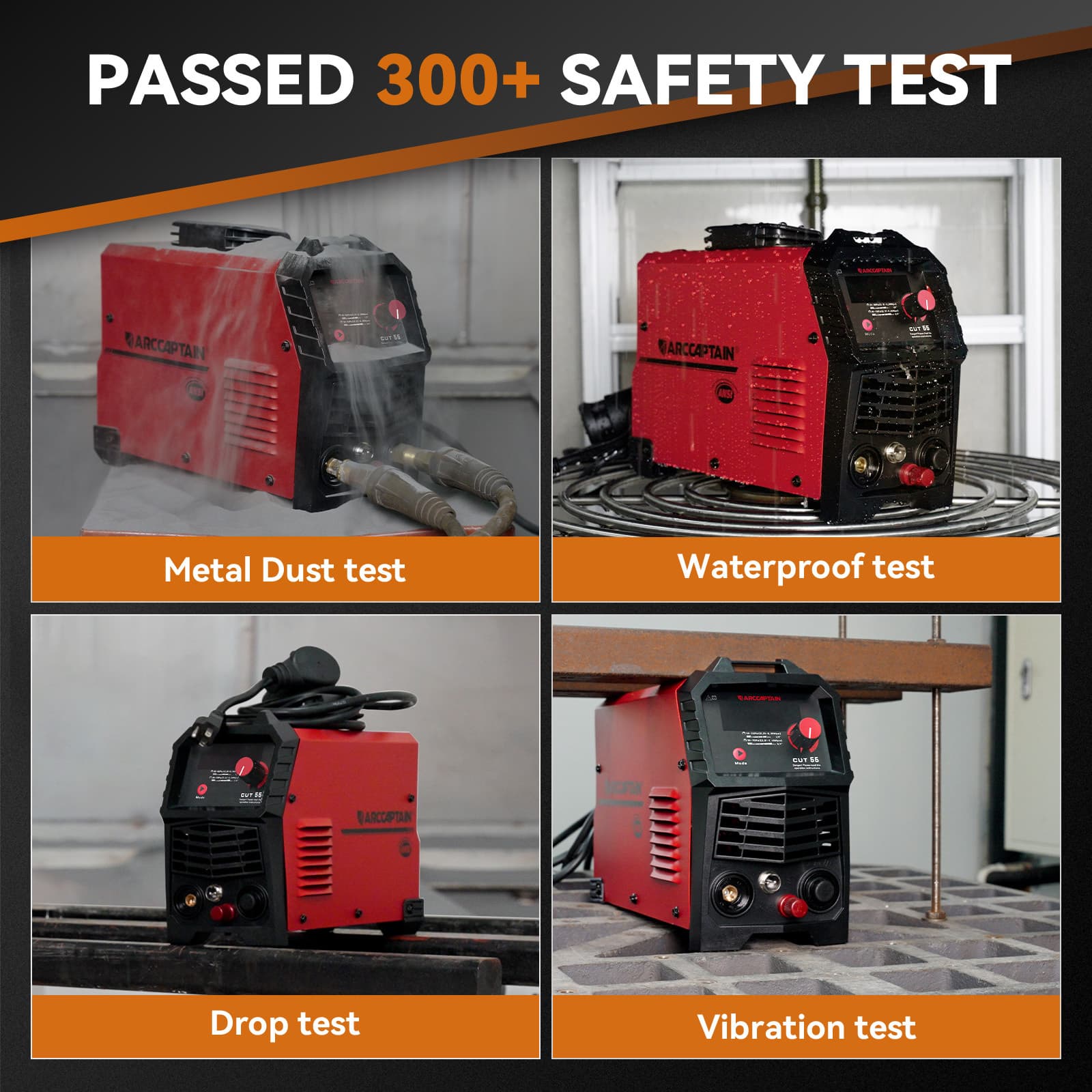

The IGBT inverter operates at 50/60Hz, supports 120/240V input and has a 60% duty cycle. Maximum cutting thickness is 3/4" at 55A and 240V; the specified clean cut is 1/2" at 35A and 120V. It weighs 19.8 pounds and includes a shoulder strap. A post-time setting controls torch-head cooling. The cutter meets TÜV and ANSI standards.
