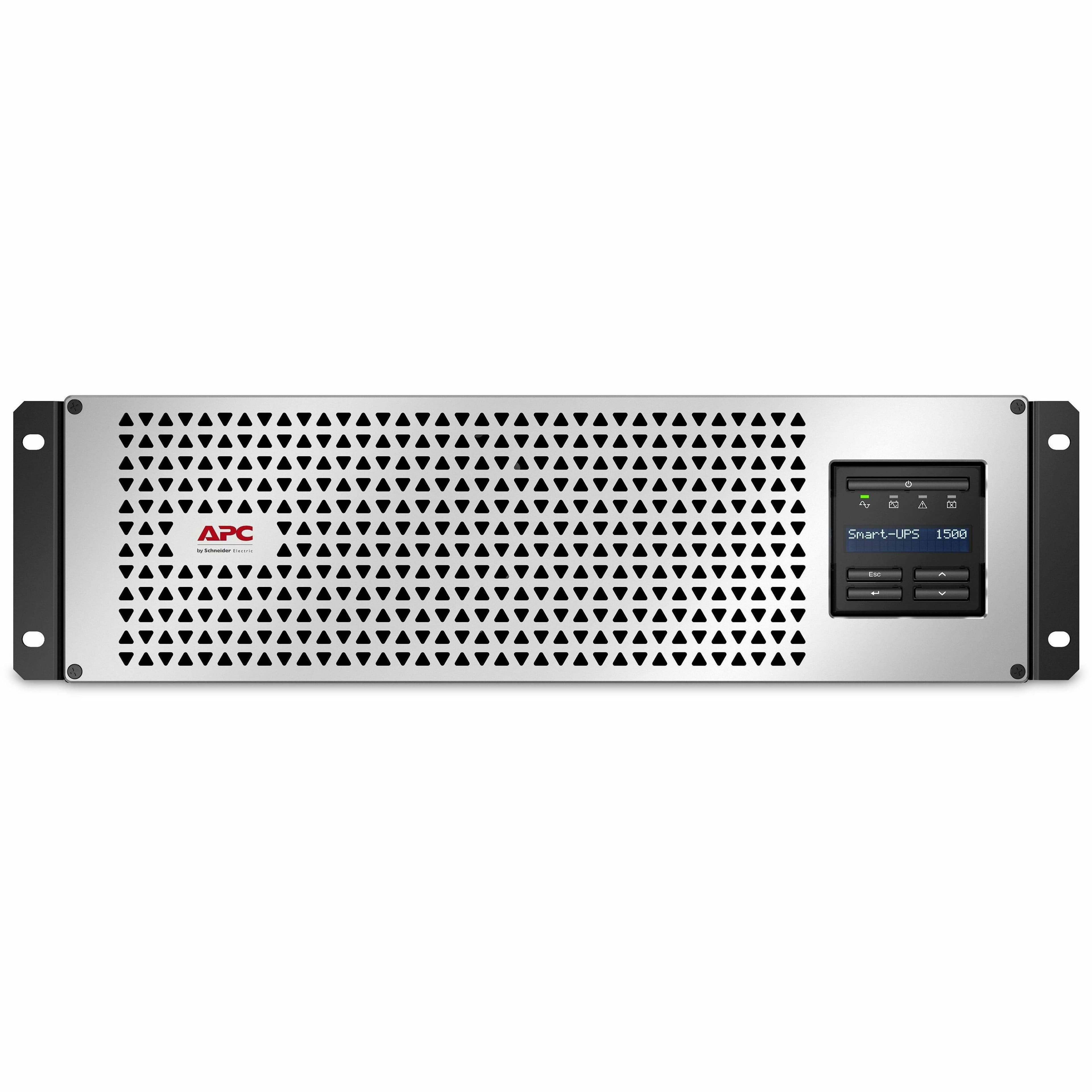

APC Smart-UPS 1500VA Line-Interactive Rack UPS (3U) — Lithium-ion, 120V, 6× NEMA 5-15R, Short Depth, AVR, LCD, SmartConnect + Network Card

Compact 3U rack-mount UPS providing line-interactive power protection for 120 V systems. The APC Smart-UPS 1500VA combines lithium‑ion batteries with AVR and an LCD display for on-site monitoring, and includes SmartConnect port plus network card for remote management. Electrical and performance - Load capacity: 1500 VA / 1350 W - Input voltage: 120 V AC; output voltage: 120 V AC - Input frequency: 60 Hz - Input voltage range: 75 V AC -154 V AC - Input voltage range: 82 V AC - 144 V AC - Transfer time: 6 ms - Waveform type: Sine Wave - Surge energy rating: 680 J - Surge and battery outlets: 6 (Number of Battery & Surge Outlets: 6) - Plug / connector type: NEMA 5-15P; receptacle type/detail: NEMA 5-15R (6 x NEMA 5-15R) - Data line protection: RJ-45 - Overload protection: Yes - Alarms: Low battery; on-battery alarm with configurable delay - Status indicators: Multifunction LCD status and control console Battery and runtime - Battery chemistry: Lithium Ion (Li-Ion) - DC system voltage: 36 V DC - Battery energy: 864 kJ - Typical battery recharge time: 3 Hour - Backup / run time (full load): 3.03 Minute - Backup / run time (half load): 8.87 Minute Communications - Serial port: Yes - Network (RJ-45): Yes - USB (HID compliant) port: Yes Physical - Form factor: Rack-mountable (Short Depth) - Rack height: 3U - Height: 5.2"; Width: 17.2"; Depth: 11.9" - Weight (Approximate): 42.99 lb - Product color: Black - Thermal dissipation: 39.56 W - Sound emission (A-weighted): 45 dB(A) Environment and limits - Maximum operating temperature: 104°F (40°C) - Storage temperature: -40°F (-40°C) - 95°F (35°C) - Maximum operating elevation: 10000 ft - Maximum storage elevation: 25000 ft - Storage relative humidity: 0% - 95% Package contents - Smart-UPS 1500VA Rack-mountable UPS - Installation Guide - Rack mounting support rails - USB cable Compliance, origin and warranty - Environmentally friendly: Yes - Environmental certifications: WEEE; China RoHS - Country of origin: Philippines - Limited warranty: 5 Year
