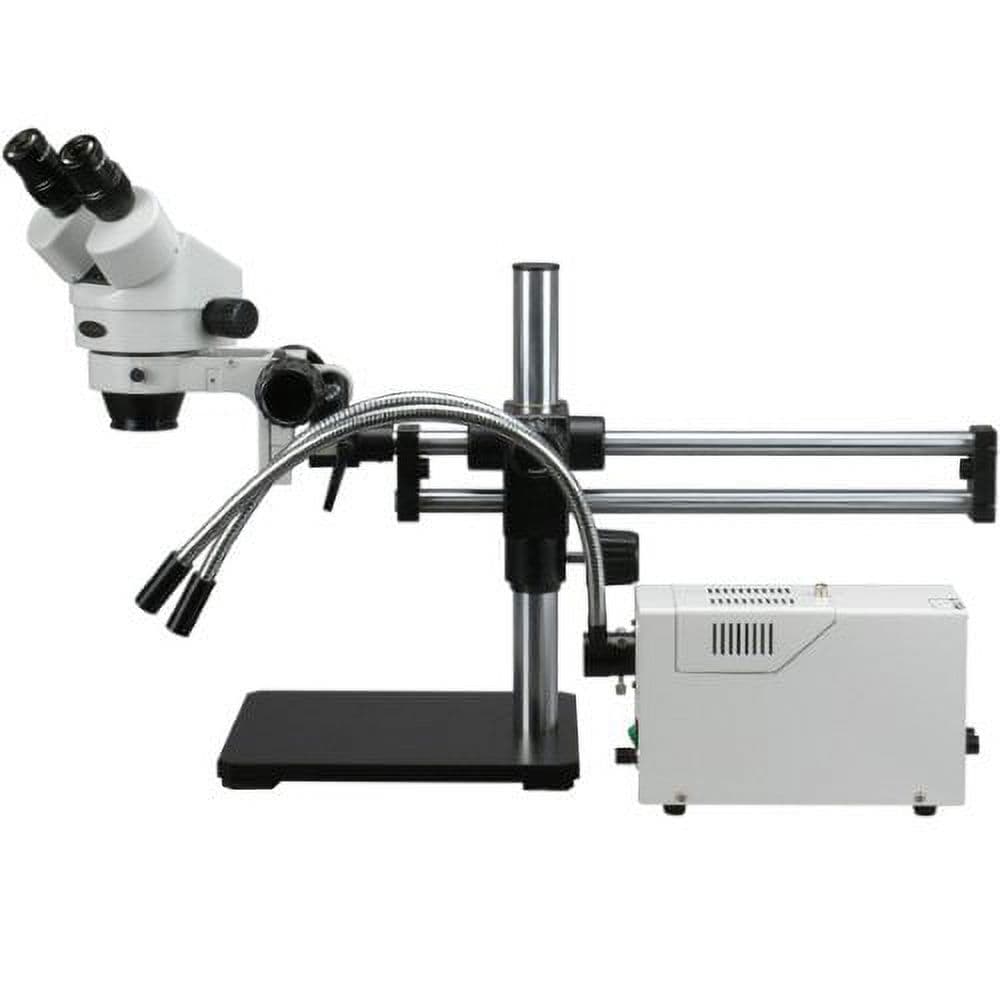

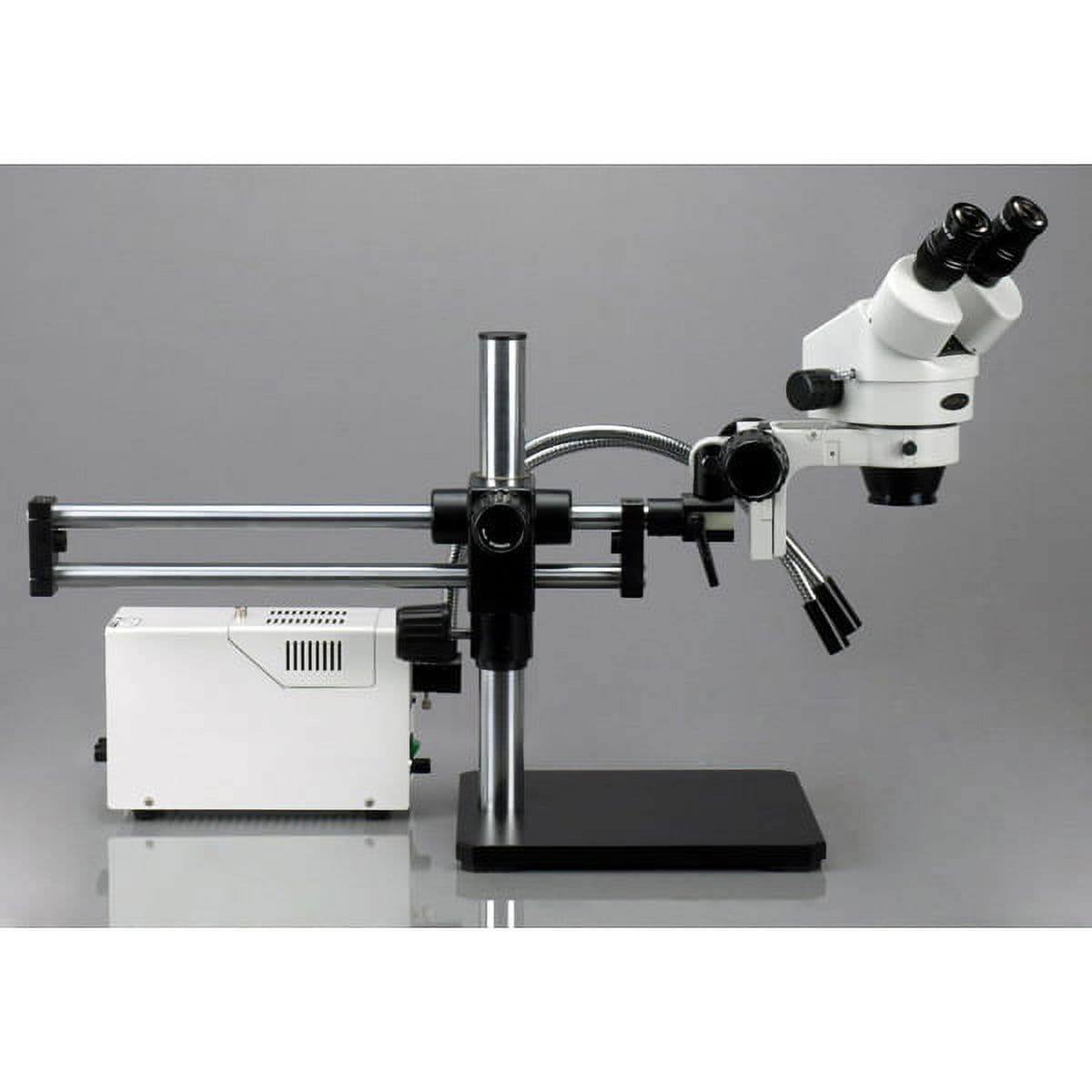

AmScope SM-5BZ-FOD Professional Binocular Stereo Zoom Microscope, WH10x Eyepieces, 3.5X-90X Magnification, 0.7X-4.5X Zoo

The AmScope SM-5BZ-FOD professional stereo zoom microscope has a pair of 10x super-widefield high-eyepoint eyepieces, a 0.7x-4.5x zoom objective, two Barlow lenses, and a ball-bearing controlled double-arm boom stand. The microscope has an overall magnification range of 3.5x-90x. The binocular viewing head has an interpupillary range of 55 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The WH10x20mm super-widefield high-eyepoint eyepieces combine with the 0.7x-4.5x zoom objective to provide continuous zoom magnification and a longer working distance for inspecting large-scale specimens that require handling or repair. The microscope comes with 0.5x and 2.0x Barlow lenses that can be added to the objective to increase the magnification range. A Barlow lens with a magnification of less than 1.0 reduces magnification and increases the working distance, while a Barlow lens with a magnification greater than 1.0 increases the magnification and reduces the working distance. High-eyepoint eyepieces ease viewing for users who wear glasses, and dioptric adjustment accommodates individual eye-strength differences. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected. The dual-gooseneck fiber-optic light has two adjustable lights on a 150W/21V cool-light halogen light source for observing temperature-sensitive specimens. Each 22 light can be positioned independently, and a rheostat controls the amount of light emanating from the lamp. Power and adjustment controls are located on a control box to speed adjustments. The light source has a forced-air cooling system to prevent overheating, and a built-in filter slot can be used to change the light color (filters sold separately). The top-mounted door eases access to the bulb, and automatically turns off the power supply when opened. The light uses a 110V-120V power supply. The microscope has a ball-bearing controlled double-arm boom stand that enables users to position the microscope head on all three axes (X, Y, and Z). Bilateral focus eases use for left- and right-handed users. The stand has 22-1/2 horizontal double arms. The pillar is 24 and the focus rack has a 3 diameter. The solid cast-steel base is 1 x 10 x 15 inches (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back). Specifications Head Binocular Magnification range 3.5x-90x Zoom objective power 0.7x-4.5x Eyepieces (DIN, 30mm) WH10x20mm high-eyepoint Zoom range 26:1 Field of view 2-1/2 Optical working distance Up to 8 Microscope stand Ball-bearing controlled double-arm boom stand Head movement X-, Y-, and Z-axes Illumination type Episcopic (reflected) Light source Gooseneck fiber-optic, 150W/21V halogen Power 110V-120V Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnificati
