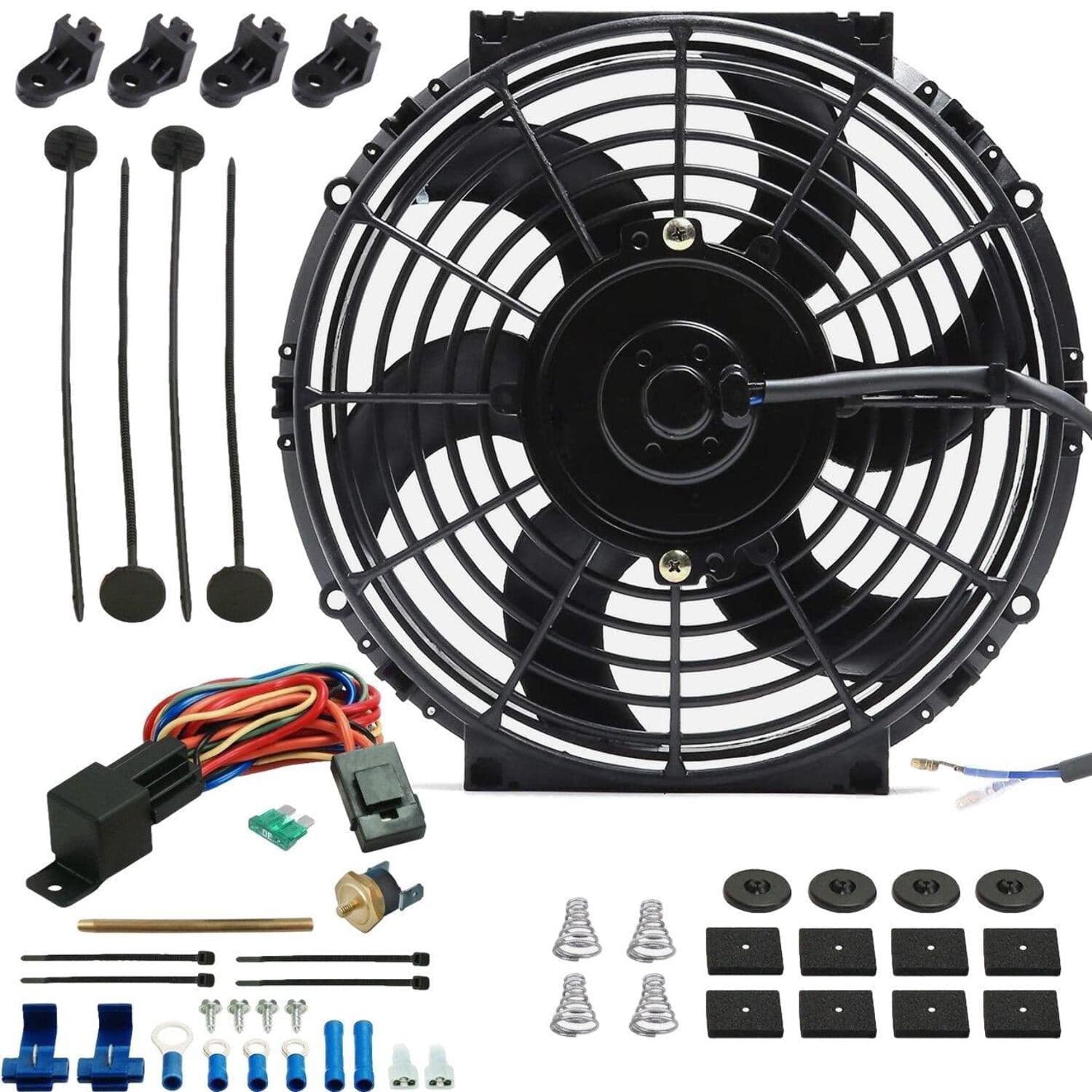

American Volt 10-11 Inch 90w Electric Radiator Fan Kit with Push-In Fin Probe Thermostat & 5-Pin 40A Relay Harness

Complete universal cooling package from American Volt that combines a slim 10" high-performance electric fan, a 5-pin relay wiring harness, and a push-in fin probe thermostat. Fan: Universal 12 volt slim electric cooling fan, 10 inch blade design driven by an upgraded 90 watt motor that draws 9 amps and moves over 1861 CFM. Factory-configured as an air puller but can be reversed to act as an air pusher. Comes with mounting bracket feet plus a full cooler fin tie strap kit. Overall fan dimensions: 11.5" x 10.75" with a thickness of 2.5" at the center and 1.4" at the edge. Wiring Kit: Universal automotive electric fan 5-pin 40A relay switch harness kit using 14AWG wire sized to power 1-2 cooling fans or other 12 volt accessories. Supports a maximum 30 amp continuous draw and includes 30A in-line fuse protection. An A/C override or manual toggle switch wire is built into the harness. Installation instructions, a wiring diagram and all necessary components are included. Thermostat: Universal dual pin electric cooling fan power thermostat with a modifiable 3" solid brass push-in fin probe temperature sensor. The switch is preset to activate the fan or a 12v accessory at the chosen temperature and the probe pins directly to radiator, engine or transmission cooler fins. Capable of measuring the temperature of automotive fluids including oil, water and coolant fluid.
