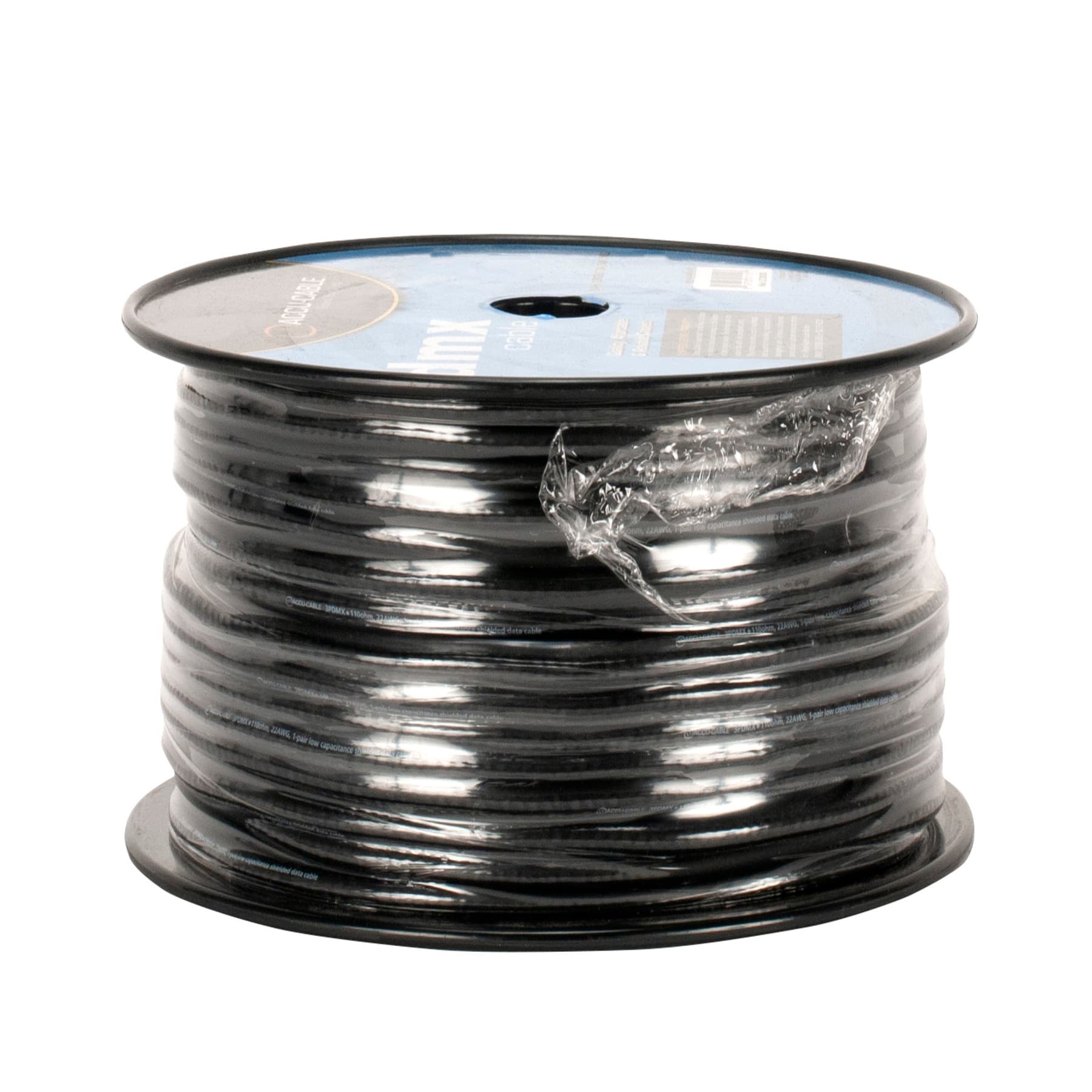

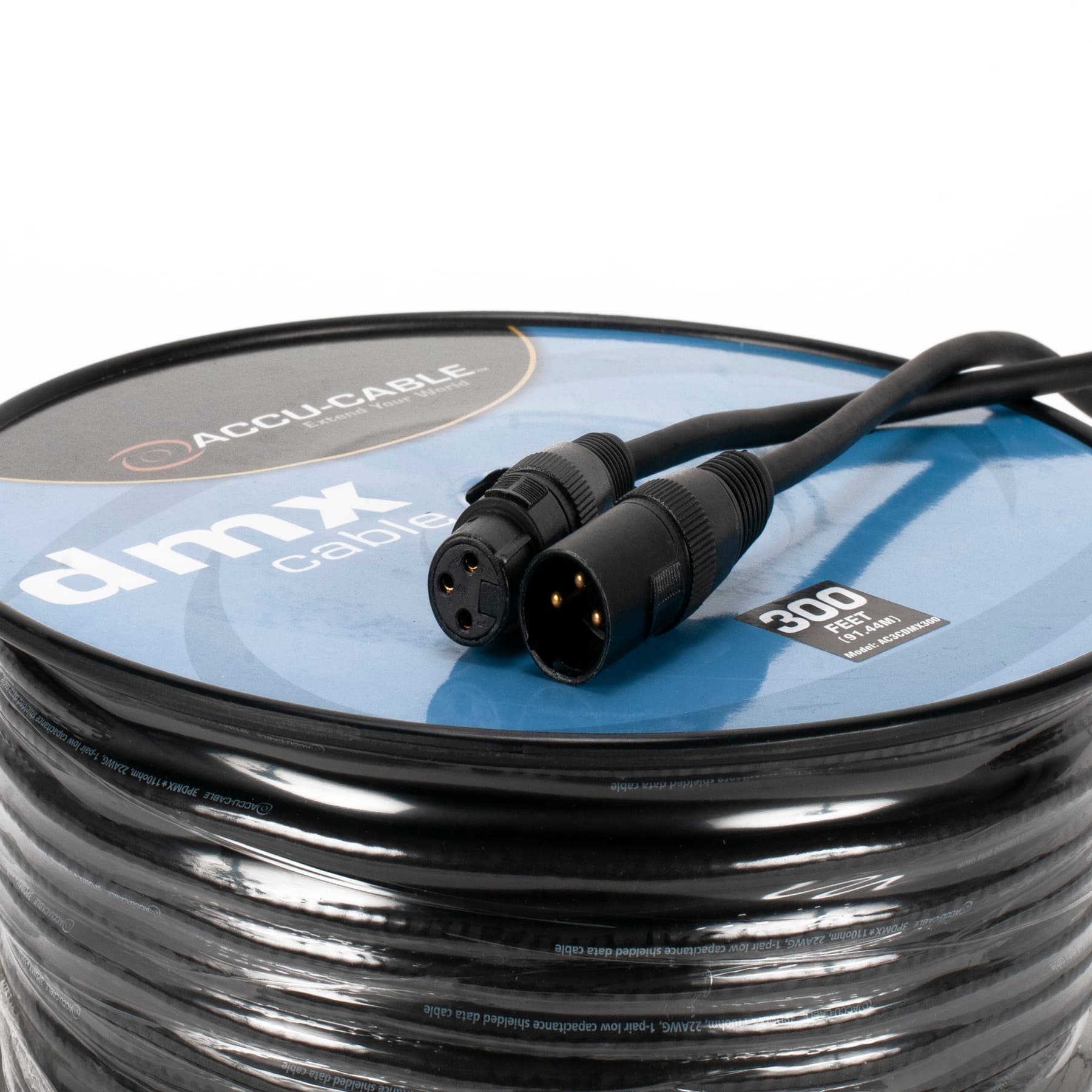

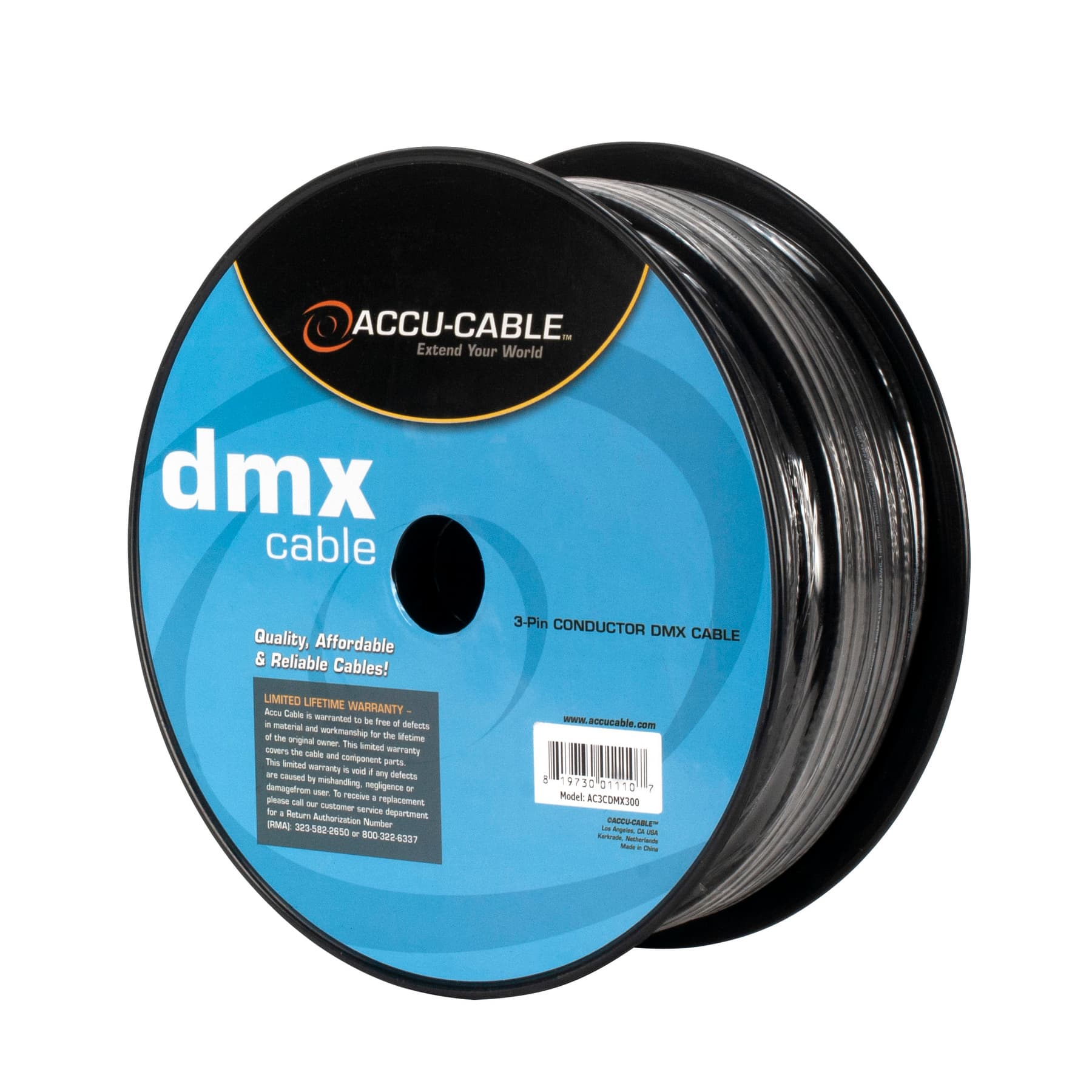

American DJ ADJ Accu-Cable 3-Pin XLR DMX Lighting Cable - Bulk 300 Ft. Spool

Brand New American DJ **Accu-Cable** AC3CDMX300 3 Pin XLR Cable Spool 300 FT Conductor: Number of Pairs: 1 Total Number of Conductors: 2 AWG: 22 Stranding: 0.15 x 19 Conductor Diameter: .0354" Conduct or Material: TC-Tinned Copper Insulation: Insulation Material: PE Polyethylene Lay Length: Lay Length: 2.5" Direction: Left Hand Lay Twists: 4.8 per foot Inner Jacket: Inner Jacket Material: PE Polyethylene Inner Jacket Diameter: .055" Pair Color Code: Black/White Outer Shield: Outer Shield Trade Name: Duofoil® Outer Shield Type: Tape/Braid Outer Shield Material: Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100 Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85 Outer Jacket: Outer Jacket Material: PVC-Polyvinyl Chloride Overall Nominal Diameter: Overall Nominal Diameter: .229" Mechanical Features: Operating Temperature Range: (-30 degrees C To + 75 degrees C) Bulk Cable Weight: 31 lbs/1000 Minimum Bend Radius (Install): 3.2" Maximum Recommended Pull Tension: 72 lbs. Electrical Features: Nominal Characteristic Impedence: 110 Ohms Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft Nominal Velocity of Propagation: 66% Nominal Delay: 1.6 Nanoseconds per foot Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C Product Condition: Brand New Part Number: AC3CDMX300
