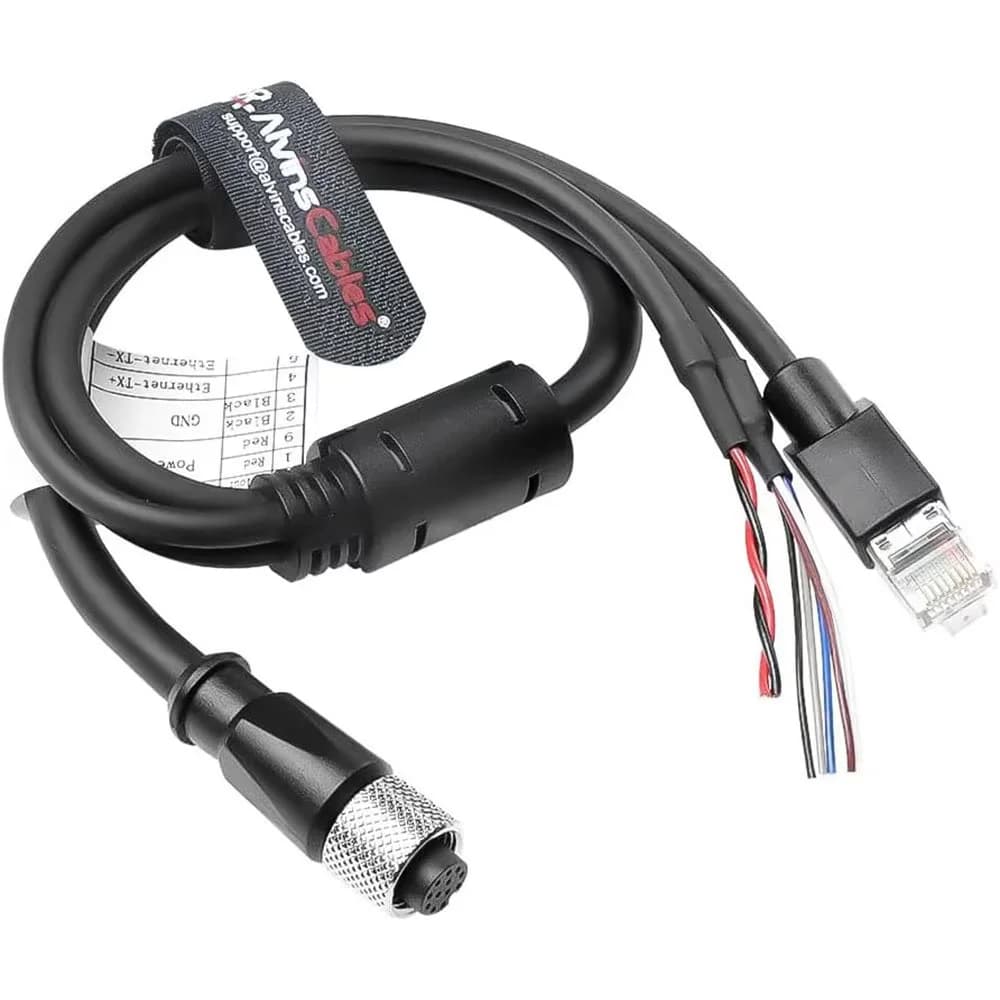

Alvin's Cables M12 12 Pin Power & Functional Ethernet Cable for DJI Livox HAP(TX) Mid-70 Mid-360 LiDAR Sensor — M12 Aviation 12 Pin Female to RJ45 1 to 3 Breakout Cable 65.6ft/20m

Designed for DJI Livox HAP(TX) Mid-70 and Mid-360 LiDAR sensors, this M12 Aviation 12 Pin female cable mates with the sensor's 12 pin male connector to simplify debugging and verification. The single M12 feed carries power, Ethernet and functional signals and breaks out into three leads at the far end for test and integration use. Connections and functions: Plug A: M12 12 Pin Female. Plug B: RJ45 + 2-wire power cable + 5-wire functional cable. The RJ45 provides Ethernet for connecting to a computer during testing, the 2-wire power lead connects to an external DC power supply, and the 5-wire functional lead attaches to the corresponding synchronization source for GPS time synchronization. Cable Length: 20M/65.6ft. We offer custom lengths as well — please message us before placing an order if you need a different length. Every cable is tested before shipping to verify there are no short circuits or potential insulation/breakdown issues. If the cable you receive is defective or does not function, contact us and we will promptly resolve the issue or send a replacement.
