Unbranded Power Tools Router Table Kit | sku-18346016783

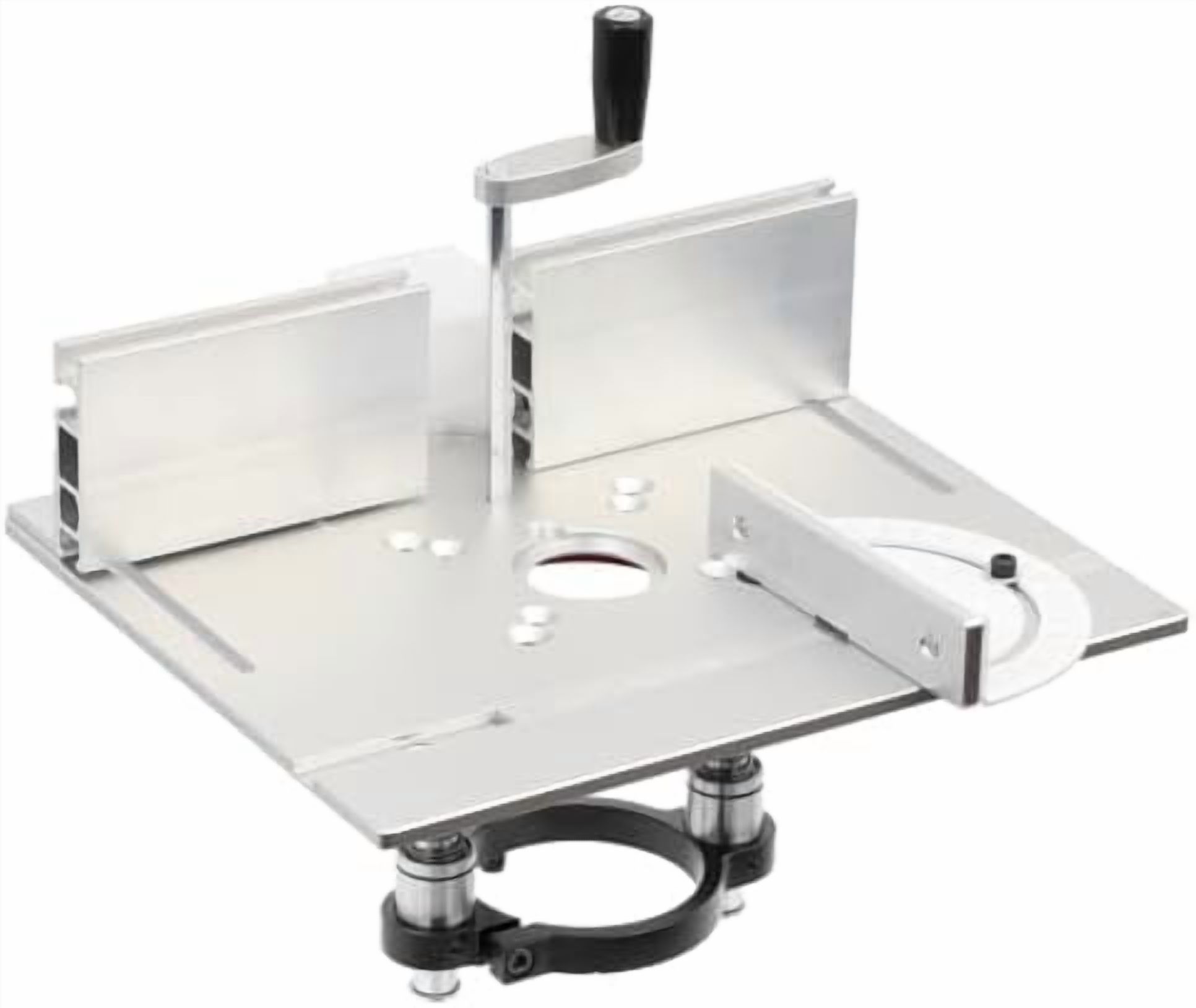

This Unbranded Power Tools router table kit, SKU sku-18346016783 and UPC 741050181133, includes an insert plate, lifting base, height adjustment crank, 180-degree rotating push ruler, sliding adjustment baffle and screw accessories. The plate, base, sliding rods and baffles are anodized aluminum alloy.

The anodized surface is hard, wear-resistant and insulating, while the plate's smooth surface helps workpieces slide. The CNC-machined plate has a laser-printed scale designed to remain readable with use. The plate measures 240 x 200 x 5 mm (9.45 x 7.87 x 0.2 in). Its router fixing hole patterns measure 56 x 45 mm (2.2 x 1.77 in) and 70 x 62 mm (2.76 x 2.44 in).

The lifting base uses a ring clamp for motors 63.5-65 mm (2.5-2.56 in) in diameter, including compatible 65mm trimming machines. It attaches through the 70 x 62 mm (2.76 x 2.44 in) square screw holes. A Z-crank adjusts cutter height from above the table by up to 51 mm (2 in), allowing bit changes above the table. The 180-degree push ruler rotates, and the backing slides to adjust.

If there is a problem with the goods received, contact the seller to request a replacement.
