Alpine Status HDA-V90 Hi-Res Class-D 5-Channel Amplifier — 75W×4 + 300W×1 @4Ω, 100W×4 + 500W×1 @2Ω

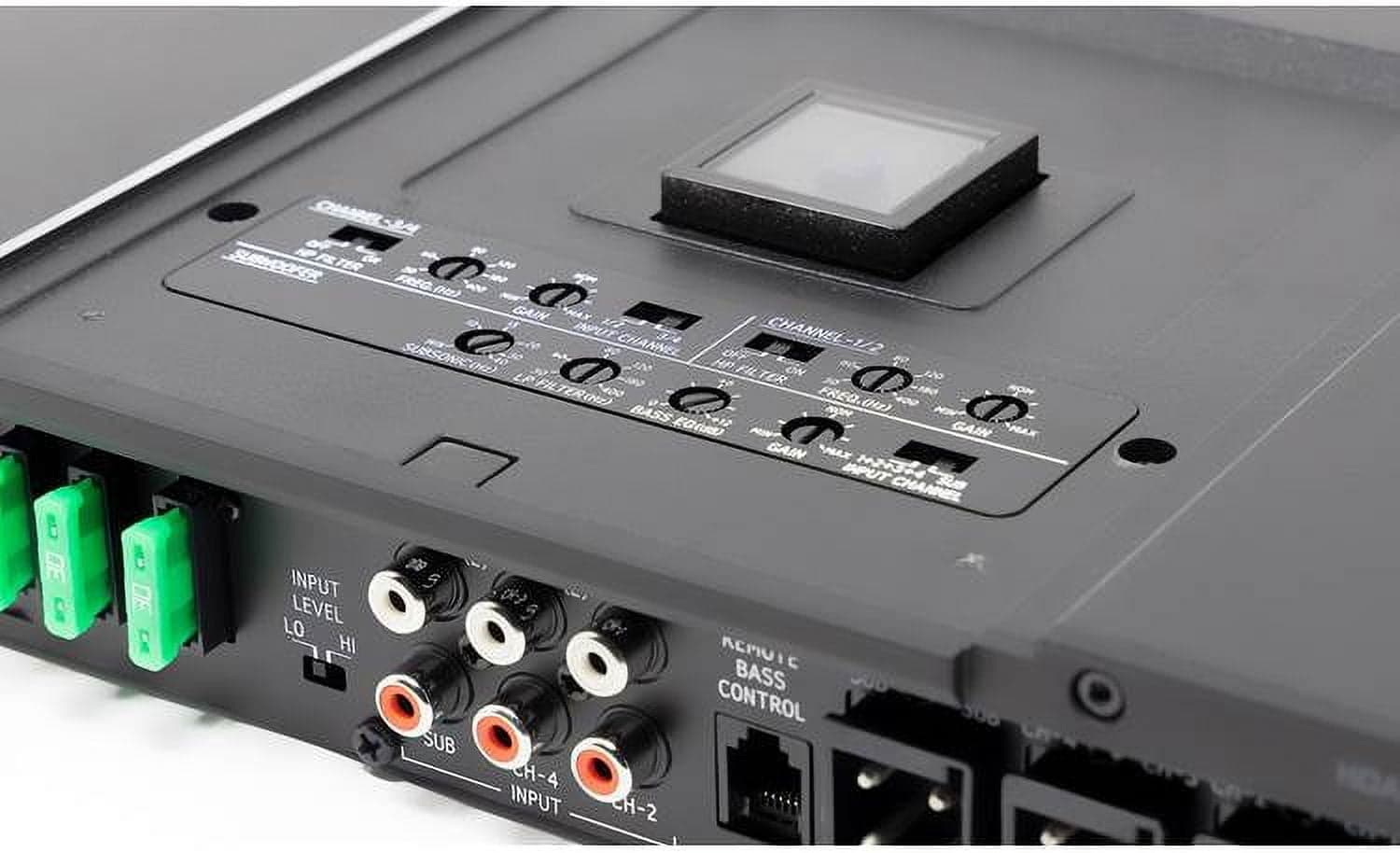

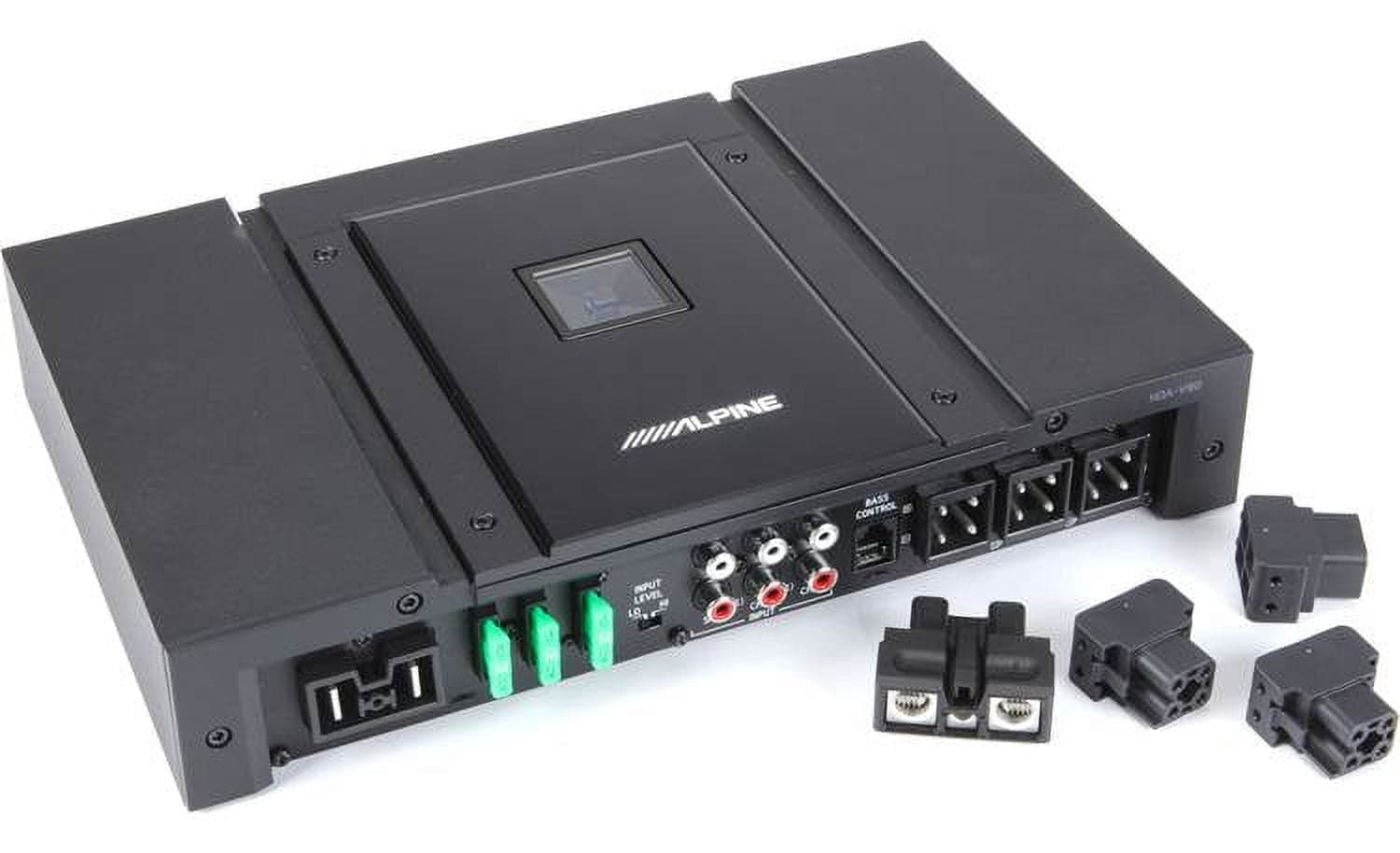

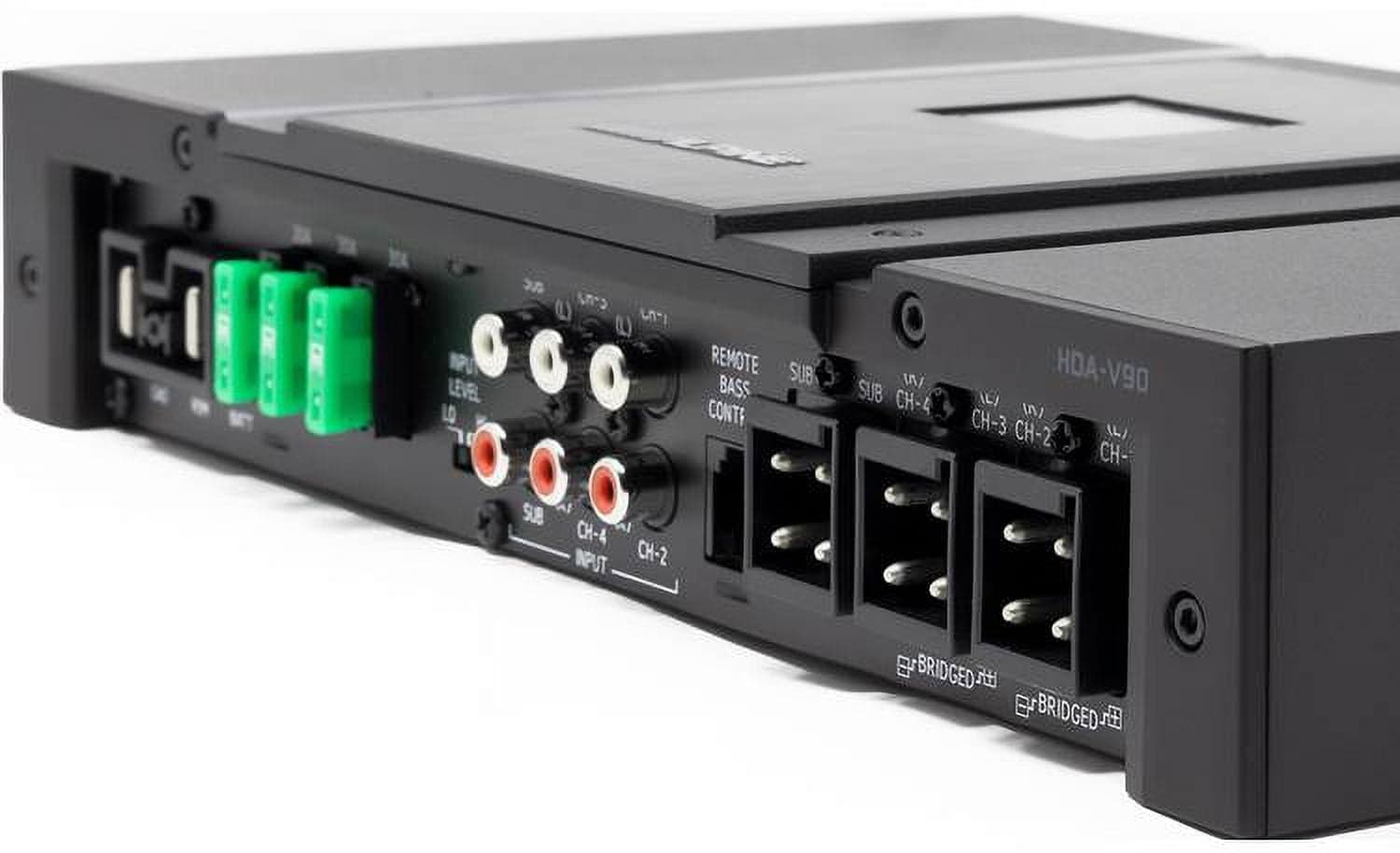

Overview: High-resolution 5-channel amplifier from Alpine’s Status line, built with Hi-Res Class-D technology to drive a full system including a powered subwoofer channel. Power Ratings: - 75 watts RMS x 4 + 300 watts RMS x 1 at 4 ohms - 100 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms - Bridged: 200 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms Audio Performance and Controls: - Frequency response (-3 dB): 8 to 60,000 Hz - Variable high- and low-pass filters: 50-400 Hz, 12 dB/octave - Variable subsonic filter: 8-40 Hz, 24 dB/octave - Variable bass boost: 0-12 dB at 50 Hz Inputs, Outputs and Connectivity: - Preamp and speaker-level (up to 10V) inputs - Speaker-level inputs require speaker wire to RCA adapters - Speaker-level inputs feature signal-sensing amplifier turn-on - Quick-connect power and speaker connectors - Optional RUX-KNOB.2 wired remote level control for sub channel Installation Notes: - Wiring and hardware not included with amplifier - 4-gauge power and ground wire recommended - Fuse rating: 30A x 3 - Physical size: 11.4375"W x 2.125"H x 7.5"D - Warranty: 1 year What’s in the box: - Alpine HDA-V90 owner's manual (If you need assistance accessing this owner's manual, please give us a call.) - 5-Channel amplifier - Three 30-amp ATO fuses (installed) - Top cover (installed) - Power connector plug - 3 Speaker connector plugs - 2 Mounting legs - 2mm Allen wrench - 2.5mm Allen wrench - 4mm Allen wrench - Four 3/4" Screws - Eight 3/8" Screws - Owner's manual (English/ German/ French/ Spanish/ Italian/ Swedish/ Russian/ Chinese) - Alpine verification certificate - Warranty information - Product registration information - Power wiring note
