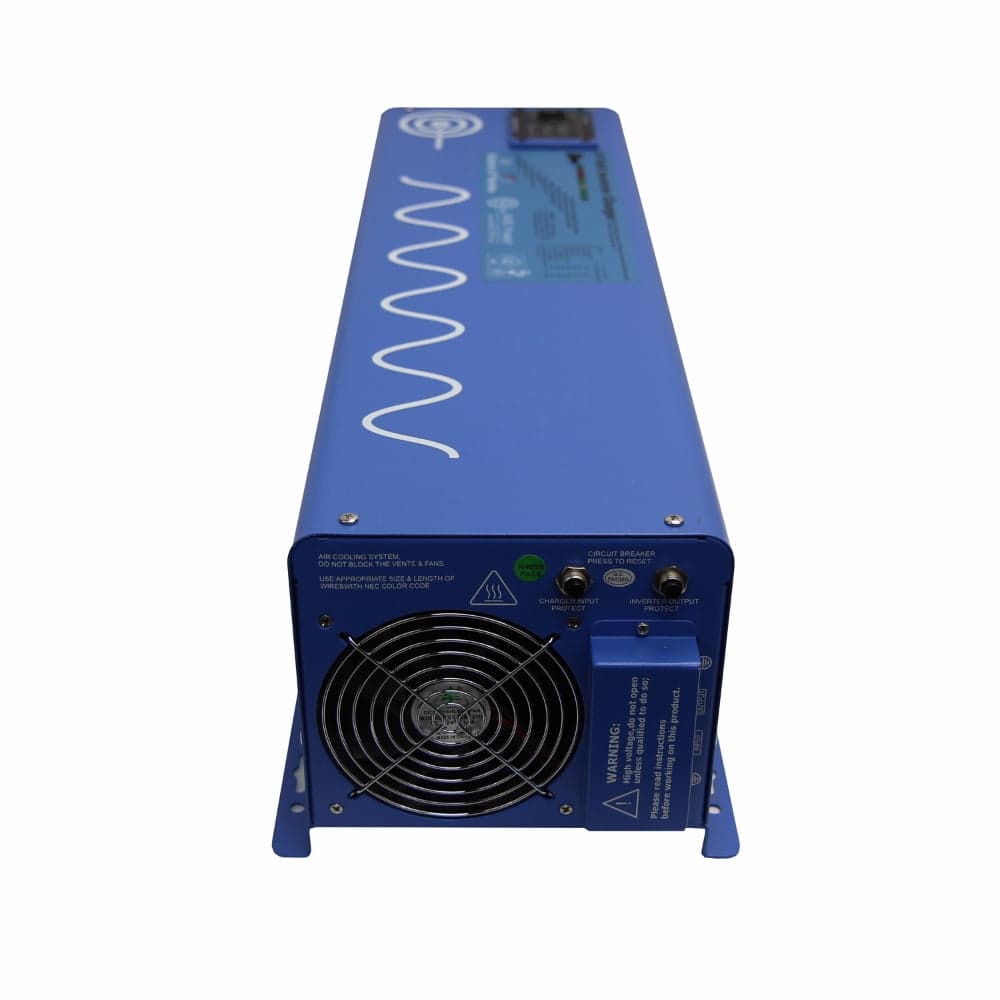

Aims Power PICOGLF40W24V120V — 4000 Watt Low-Frequency Inverter Charger (24V)

Overview: Designed for 24 VDC systems, this low-frequency inverter/charger delivers a continuous 4000 Watt output and can handle a 12000 watt surge for 20 seconds (300% surge capability). It provides a pure sine output (same as input in bypass) with selectable output voltage 100-110-120VAC and supports 50Hz +/- 0.3Hz or 60Hz +/- 0.3Hz operation. Typical transfer time is 10 msec (Max 10ms). Optional 25W power save mode and auto frequency operation are included. Remote panel available. Key features: - 4000 watt continuous inverter; 12000 watt surge for 20 seconds (300% surge capability) - Pure sine output; terminal block connections - Marine coated and protected for harsh environments - Multi-stage smart charger with selectable battery types (7 battery type settings for charger) - 50 Amp charger rate (50A) - Remote panel available; optional 25W power save mode Output specifications: - Continuous output power: 4000 Watt - Surge rating: 12000 Watt (20 seconds) - Output waveform: pure sine/same as input (bypass mode) - Output voltage: 100-110-120VAC - Nominal efficiency: >88% (peak) - Line mode efficiency: >95% - Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz - Typical transfer time: 10ms (Max) - THD: < 10% DC input specifications: - Nominal input voltage: 24.0 VDC - Minimum start voltage: 20.0 VDC - Low battery alarm: 21.0Vdc-22.0 VDC - Low battery trip: 20.0Vdc-21.0 VDC - High voltage alarm: 32.0 VDC - Low battery voltage restart: 26.0 VDC - Idle consumption: 52.5 watts - Idle consumption with power saver mode ON: 20.9 watts Charger specifications: - Output voltage: depends on battery type - Charger rate: 50A - Over charge protection shutdown: 31.4V - Selectable charge setting based on battery type (7 battery type settings for charger) - Adjustable charge current: off-20%-100% - Four stage smart charger Transfer switch specifications: - 30 amp automatic transfer switch - Transfer time: 10 ms (max)
