AHD CCD Rearview Camera for Hyundai New Shengda / IX45 - 12LED Night Vision, IP67/IP68

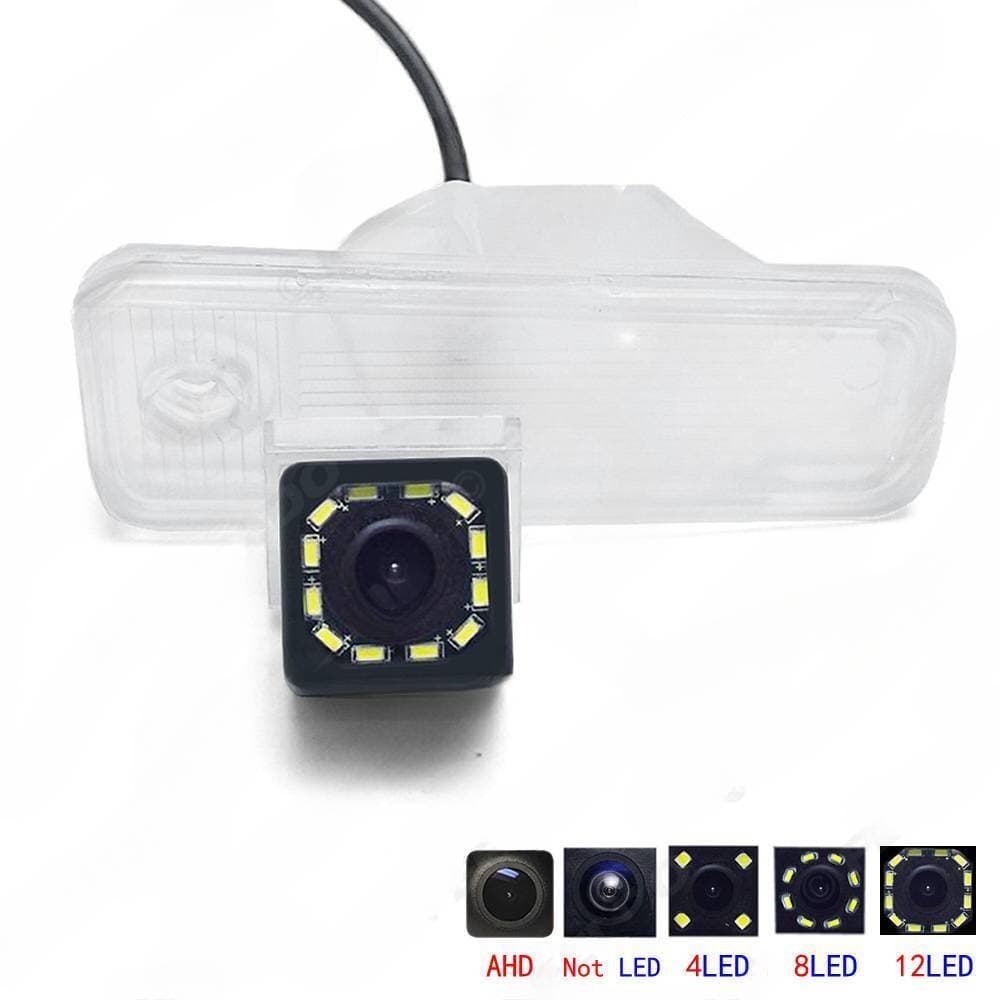

Overview: Direct-fit rearview AHD camera compatible with Hyundai New Shengda/IX45. Built around a CCD image sensor and a 100% glass lens, this unit provides a wide-angle view and low-light performance with optional LED illumination. Specifications: Image sensor: CCD lens Lens material: 100% glass Effective pixel: 640 * 480 pixels Horizontal resolution: 480TV cable Field viewing angle: 170 degrees (diagonal), 138 degrees (H), 125 degrees (V) Night Vision: Support Lens with LED light: AHD/without LED light/4LED/8LE/12LED Parking Wire: Support Wire Switch: No Reversing Image: Mirror Image Mirror/Original Switch: No Television system: NTSC Video output: CVBS RCA connector (1.0VP-P, 70OHM) Minimum illumination: 0.01 Lux/F = 1.2 (0 Lux when infrared is turned on) Power supply: DC12V Power consumption: 120mA Operating temperature: -20 ° C to + 75 ° C, relative humidity 95% MAX Storage temperature: -40 ° C to + 80 ° C, relative humidity 95% MAX Waterproof grade: IP67/IP68 This camera is supplied in the AHD format with multiple LED lighting options (including a 12LED variant) and outputs a mirror image for reversing. It is engineered to withstand harsh environments with IP67/IP68 protection and wide operating and storage temperature ranges.
