AEM 30-5601 CD-5L Restored Automotive sku-138681298

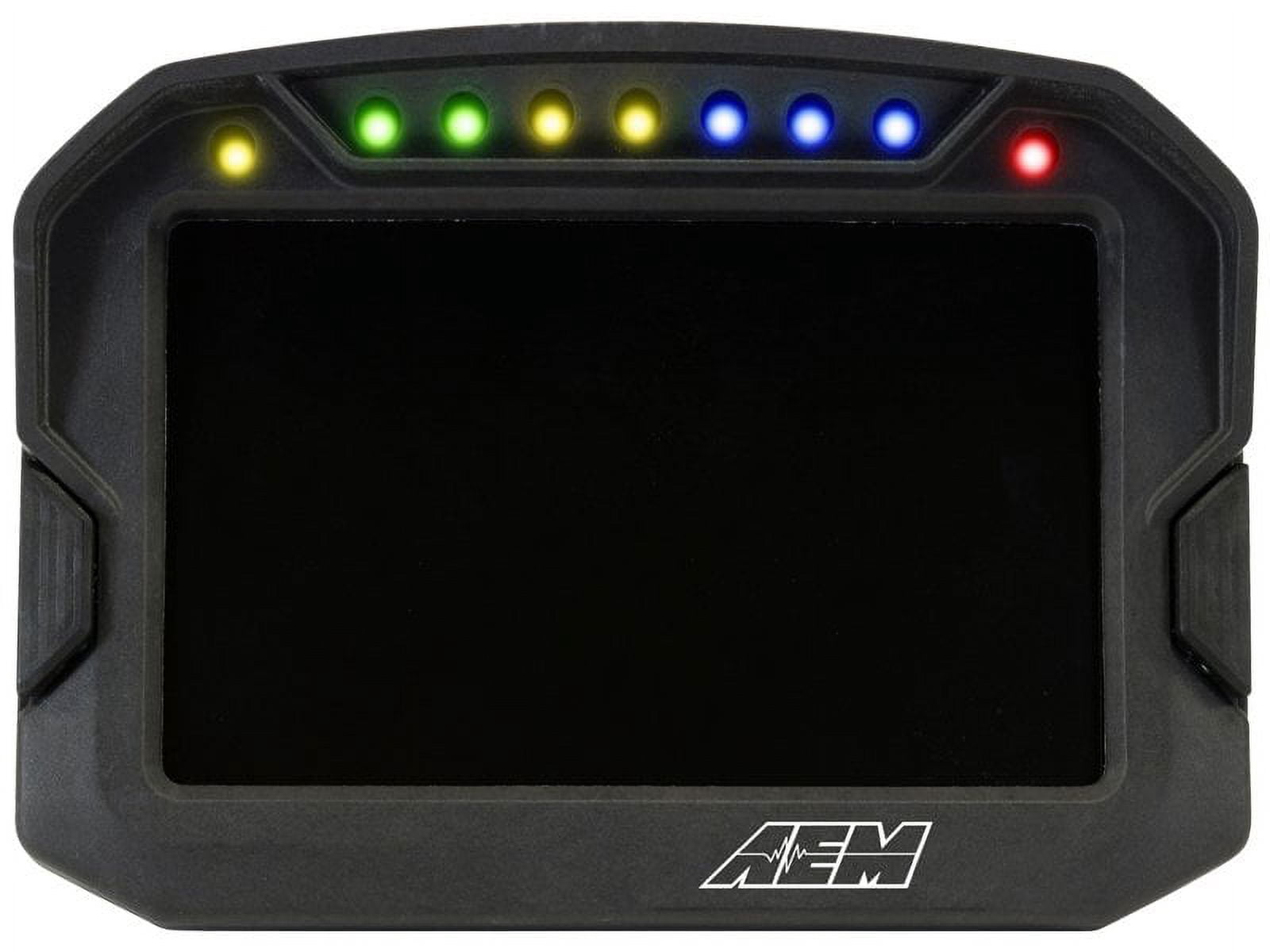

AEM 30-5601 CD-5L is a Multicolor Restored Automotive digital dash, SKU sku-138681298, UPC 840879025922. Its size is listed as Length(In): 13.300, Width(In): 7.900, Height(In): 1.400. The 5-inch full-color screen has 800x480 resolution, 1000cd/m2 brightness and an anti-glare filter for reading in direct sunlight.

A flow-molded carbon fiber composite enclosure keeps the display weight at 11.7 oz./331 grams; the unit has IP66 water resistance for motorcycle and boat use. Two programmable CAN bus inputs can receive channels from separate networks at the same time, including AEMnet devices and third-party equipment. Plug & Play adapter cables are available for Holley, Link, MSD Atomic and Vi-Pec ECUs.

Factory ECUs from 2008 onward can connect through the separately sold Plug & Play OBDII CAN Adapter Cable, PN 30-2217. Carbureted or pre-2008 stock ECU vehicles require the separately sold 22 Channel CAN Sensor Module, PN 30-2212.

The separately sold Vehicle Dynamics Module, PN 30-2206, adds GPS, a 3-axis gyroscope and a 3-axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing. Seven programmable pages include four Main pages and Alarm, On-Change and Start-up pages.

The dedicated Alarm page can display user-defined text in almost any language; the On-Change page can show map switches such as boost, traction or lap times. Use the included layouts or create pages with the free DashDesign Graphics Editor. Seven top-mounted, dimmable LED indicators provide programmable shift/RPM indication.

The dash also has an odometer, two programmable LEDs, over 200 supplied programmable SAE and custom warning icons, support for additional icons, and a 'Headlight-in' connection that dims the display and LEDs at night. Two switch inputs can trigger events such as blinkers or high beams.
