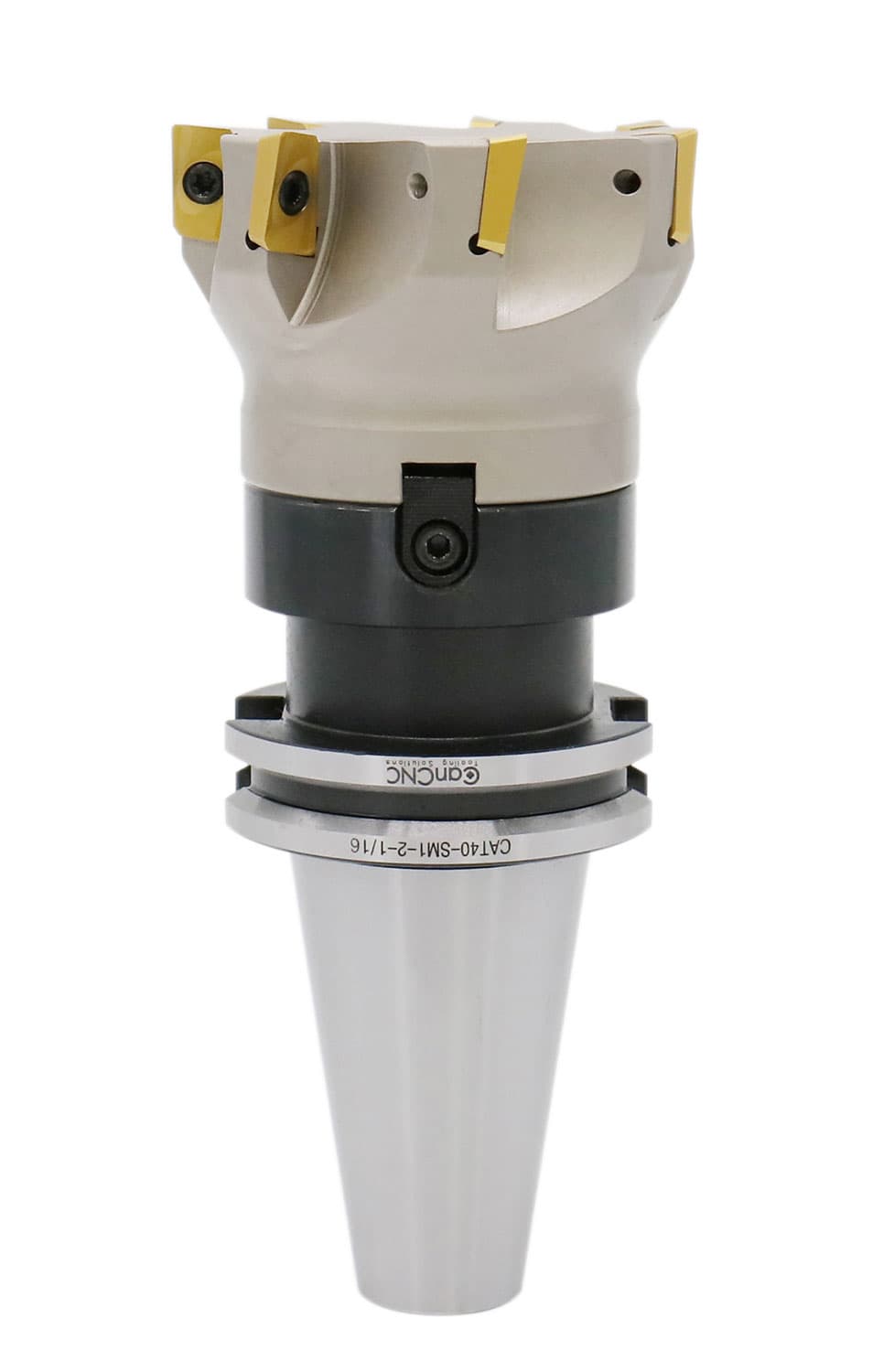

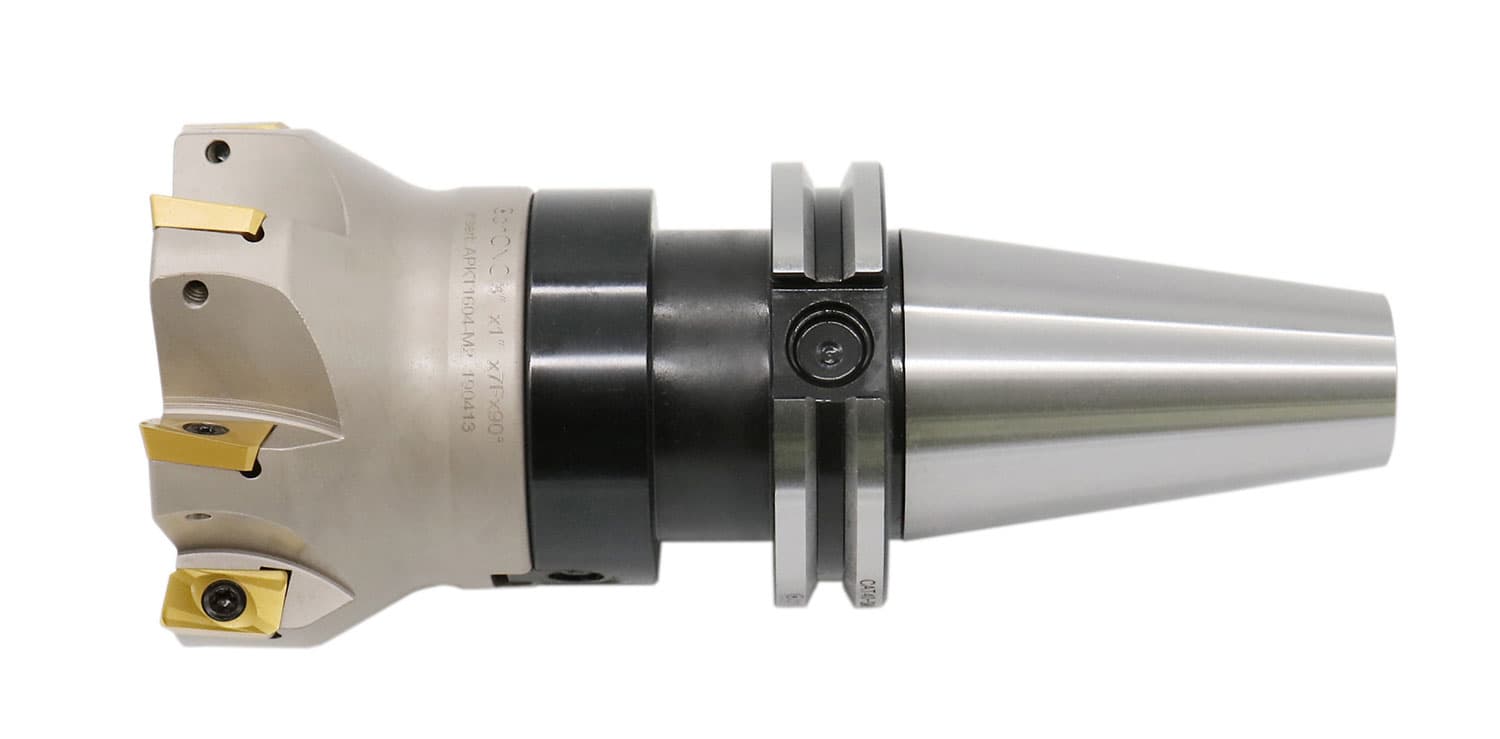

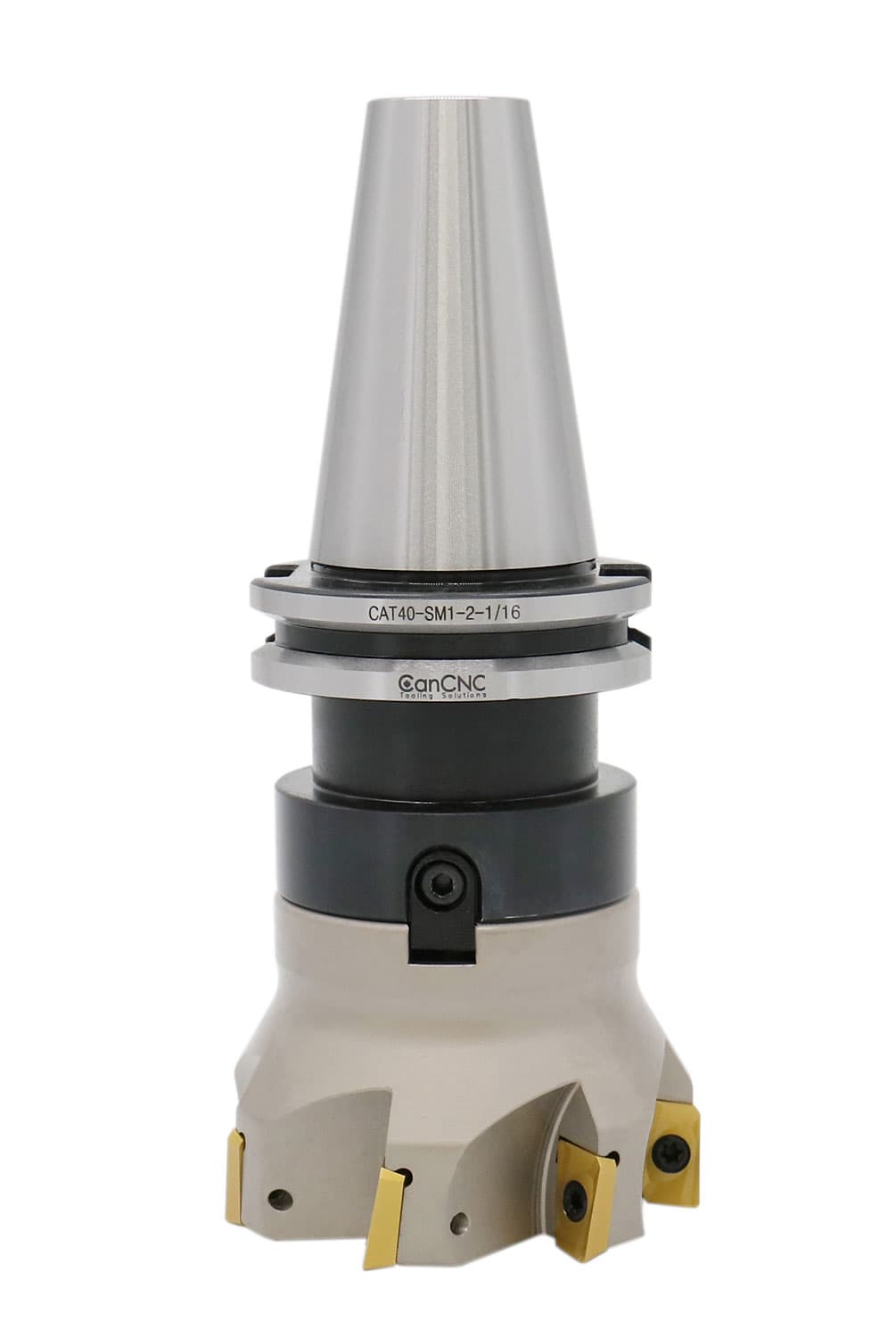

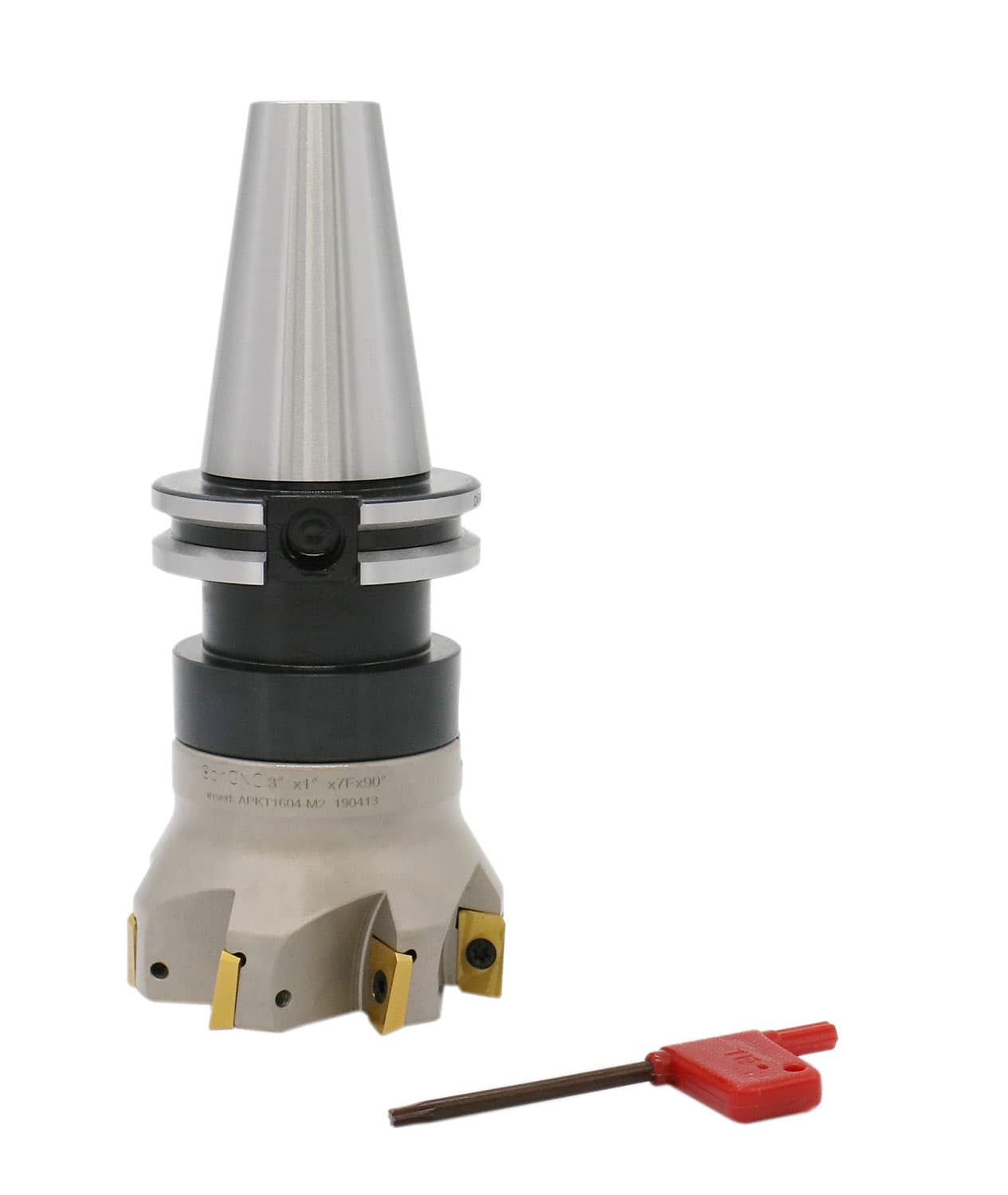

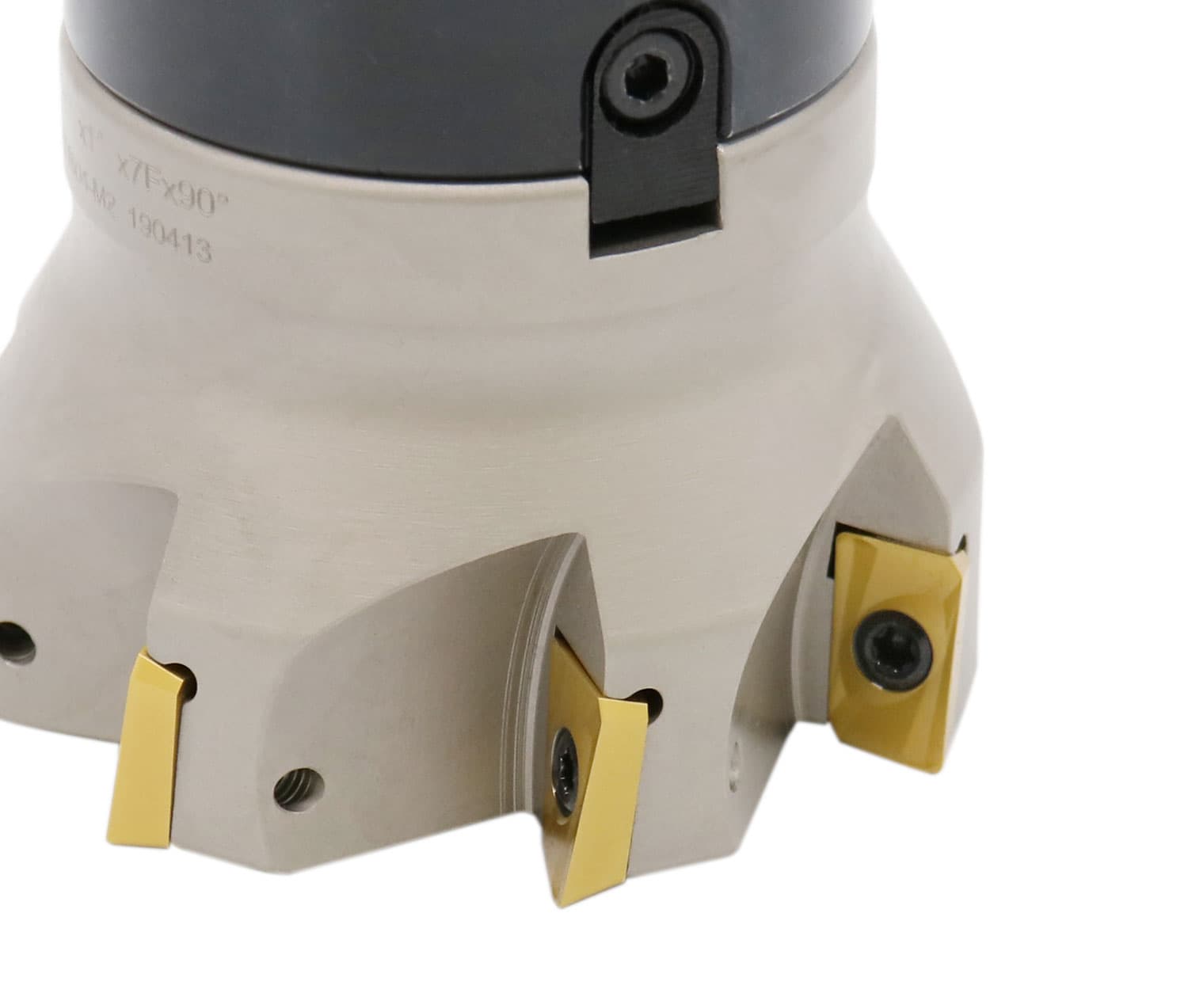

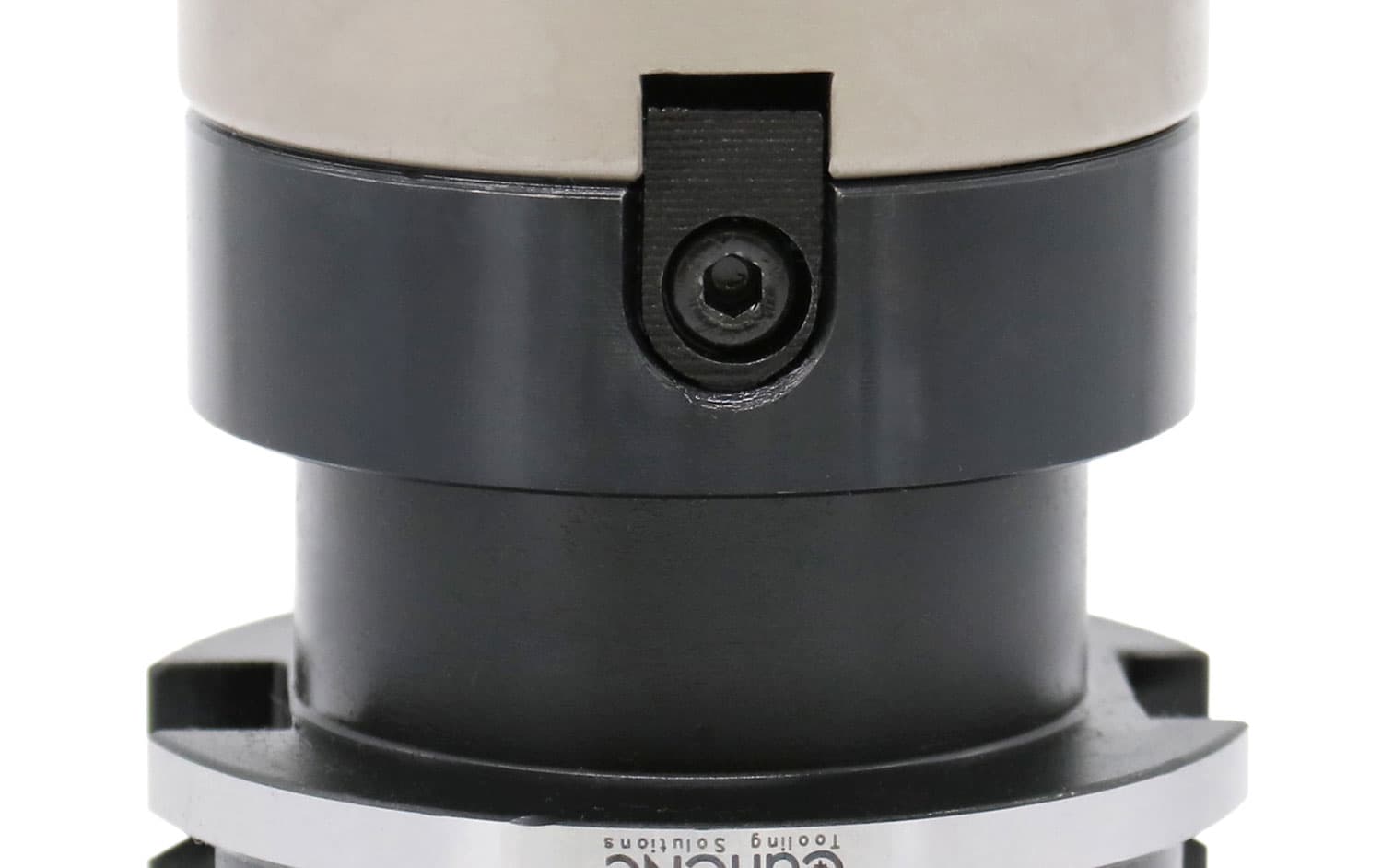

Accusize Cat40 1'' End Mill Holder with 3'' Indexable Face Milling Cutter, 7 Apkt1604 Carbide Inserts Installed, 90 Deg, 7104-4518

CAT40 1'' Diameter Caterpillar V-Flange Shell End Mill Holder, 6780-7104 All "V" Flange Tooling is interchangeable with brown & sharp, Burgmaster, Carboloy, Cincinnati Milacron, De Vlieg, Erickson, Excello, Moog, Pratt & Whitney, Universal, Valenite, White Sund Strand and other machining centers. Packed in Fitted Box D: 1'' L: 2-1/16'' L1: 5-7/16'' A:11/16'' B: 2-11/64'' 3" x 1" 90 Deg. Square Shoulder Indexable Face Mill w/ APKT1604 Insert, 4508-0018 ( including the APKT carbide inserts installed) 90° cutting angle Screw down inserts Radial rake angle: -10° Axial rake angle: +7° All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, case irons and aluminum alloys. Fitted with 10° positive rectangular inserts allow high depth of cut and feed per tooth Uses APKT / APHW / APKR_APht / APMT insert (sold separately) Cutting Diameter: 3" Arbor Hole d: 1" Overall Length: 2.00" ap: 0.551: No. of Inserts: 7 Screw: M4 x 8.4 Inserts: APKT1604 CAT40 1'' Diameter Caterpillar V-Flange Shell End Mill Holder All ''V'' Flange Tooling is interchangeable with brown & sharp, Burgmaster, Carboloy, Cincinnati Milacron, De Vlieg, Erickson, Excello, Moog, Pratt & Whitney, Universal, Valenite, White Sund Strand and other machining centers D: 1''; L: 2-1/16''; L1: 5-7/16''; A:11/16''; B: 2-11/64'' 3" x 1" 90 Deg. Square Shoulder Indexable Face Mill w/ APKT1604 Inserts Bore Dia.: 1'', right hand cut
