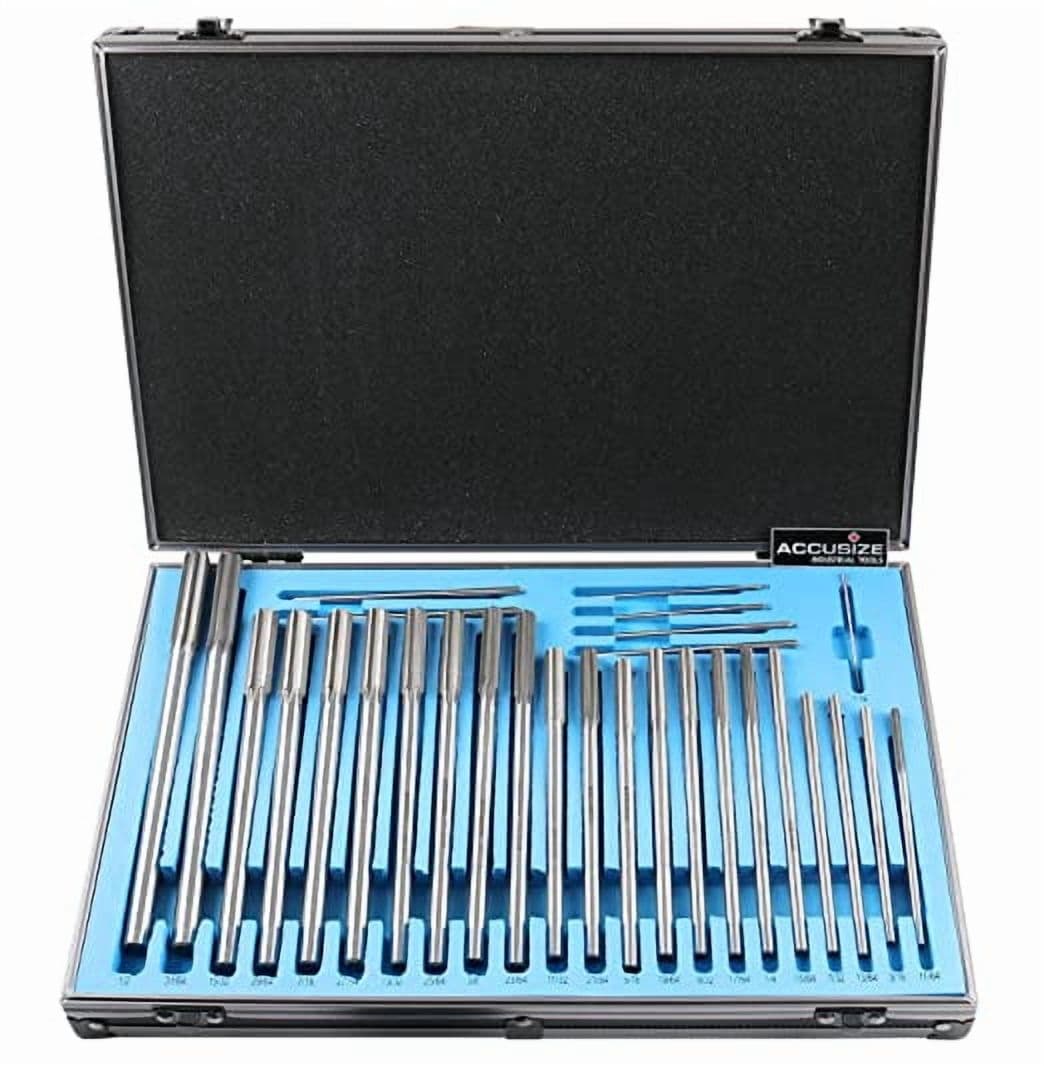

Accusize 29 pc 1/16'' thru 1/2'' by 1/64'' HSS M2 Premium Chucking Reamer Set, Straight Flute, Right Hand Cut, 5528-SF00
Features of the set of 29-piece Fractional size set, item# 5528-SF00: 1/16" thru. 1/2" by 1/64" Sizes: 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16" 13/64", 7/32", 15/64", 1/4", 17/64" 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32" 31/64", 1/2" Made from premium M2 H.S.S. Straight shank, ANSI standard Straight flute, right-hand cut Regularly pointed with a 45°chamfer Diameter tolerance: +0.0001" to +0.0005"-0.0000" Highlight: Finishing the drilled hole to achieve desired tolerance. Ready your tapping work. Each reamer was produced under an extremely high standard. Each reamer has 100%-ground flutes. Made of M2 High-Speed Steel further ensures a fairly long use life. Specifications of each reamer: Size: Dec.Equiv, Flute Length, Overall Length 1/16": 0.0625", 1/2", 2-1/2" 5/64": 0.0781", 3/4", 3" 3/32": 0.0938", 3/4", 3" 7/64": 0.1094", 7/8", 3-1/2" 1/8": 0.1250", 7/8", 3-1/2" 9/64": 0.1406", 1", 4" 5/32": 0.1562", 1", 4" 11/64": 0.1719", 1-1/8", 4-1/2" 3/16": 0.1875", 1-1/8", 4-1/2" 13/64": 0.2031", 1-1/4", 5" 7/32": 0.2188", 1-1/4", 5" 15/64": 0.2344", 1-1/2", 6" 1/4": 0.2500", 1-1/2", 6" 17/64": 0.2656", 1-1/2", 6" 9/32": 0.2812", 1-1/2", 6" 19/64": 0.2969", 1-1/2", 6" 5/16": 0.3125", 1-1/2", 6" 21/64": 0.3281", 1-1/2", 6" 11/32": 0.3438", 1-1/2", 6" 23/64": 0.3594", 1-3/4", 7" 3/8": 0.3750", 1-3/4", 7" 25/64": 0.3906", 1-3/4", 7" 13/32": 0.4062", 1-3/4", 7" 27/64": 0.4219", 1-3/4", 7" 7/16": 0.4375", 2", 8" 29/64": 0.4531", 2", 8" 15/32": 0.4688", 2", 8" 31/64": 0.4844", 2", 8" 1/2": 0.5000", 2", 8"
