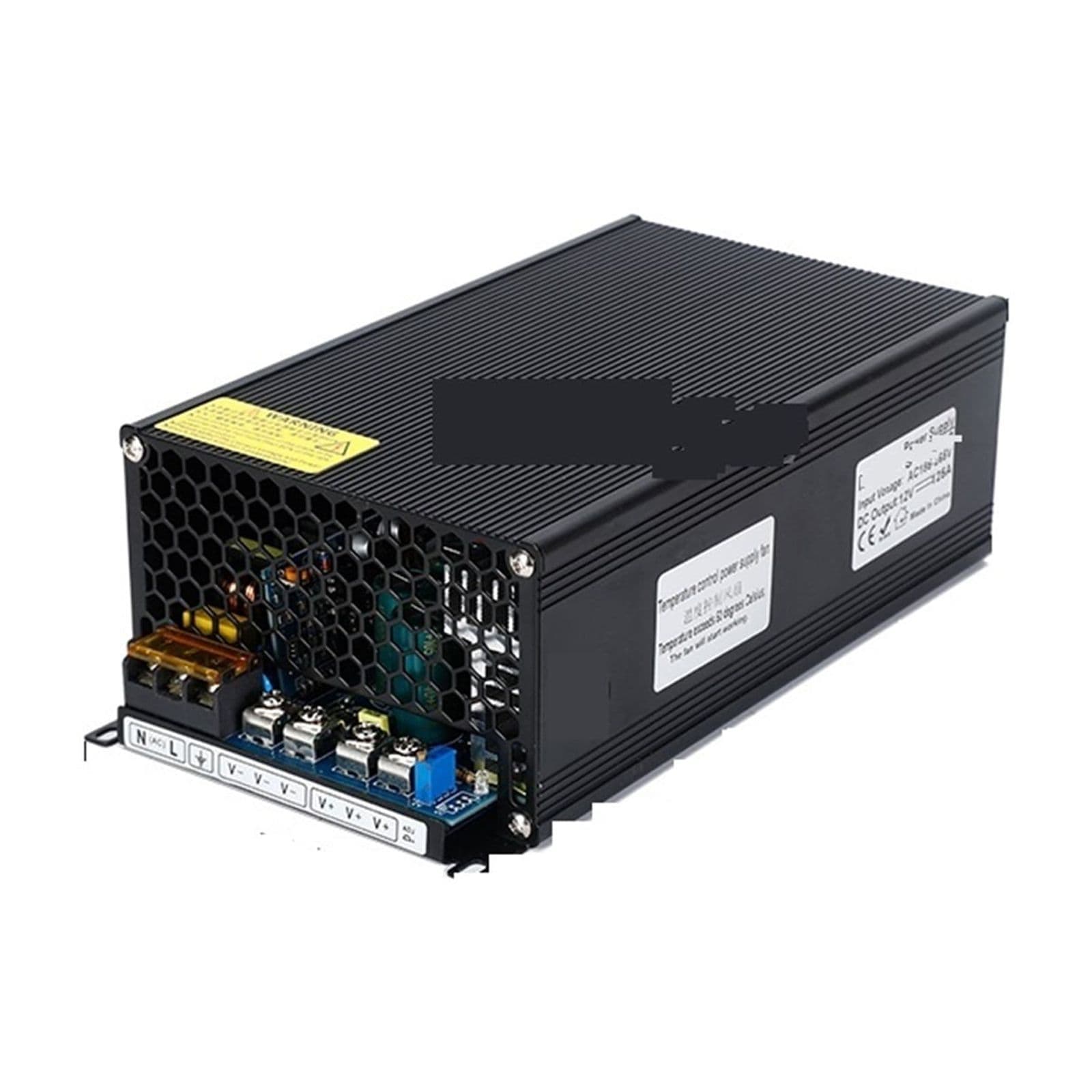

AC to DC 15V 100A 1500W Switching Power Supply， Drive Transformer， for CNC Motor Industrial Electronic Electrical Equipment etc.

Cautions: Please calculate actual power before using product to make sure its lifespan. It 's suggested that total power consumption of the loads to be connected be not more than80%of the rate power of product In the main features Suitable for DC 15Volt:Computers, Automation Cquipment, Motors, LEDs, Industrial Equipment, Electrical Appliances, etc. LED indicates the working status High efficiency, long life, high reliability Lead free process, in line with the requirements of environmental protection RoHS Output Range: DC 15V , 0-100A Rated Power: 1500 Watt Input Voltage: 110(85-145) , 220 (185-265) Can Be Connected In Parallel(For example: 2 Pcs output merge link your device, its rated output power is 3000 Watt) Range Of Difference:±1%；Efficiency: >80% Output adjustable voltage range: ±3% Frequency: 50-60Hz Leakage current: <1mA/230V Temperature coefficient: ±0.03%/°(0-50°) The working temperature and humidity are between -10 and +60, and the temperature ranges from 20% to 90%RH The storage temperature and humidity are -20 ~ +85, 10% ~ 95%RH Product Size: 245*125*75mm；Product Weight: 1.85kg Link line description L:Live Wire (input)；N: Naught wire (input)；E:Earth；+ V: positive pole (output)；- V: negative electrode (output)
