Service Caster SCC-35S820-PUB-RS-BSL-2-R-2 sku-353546411

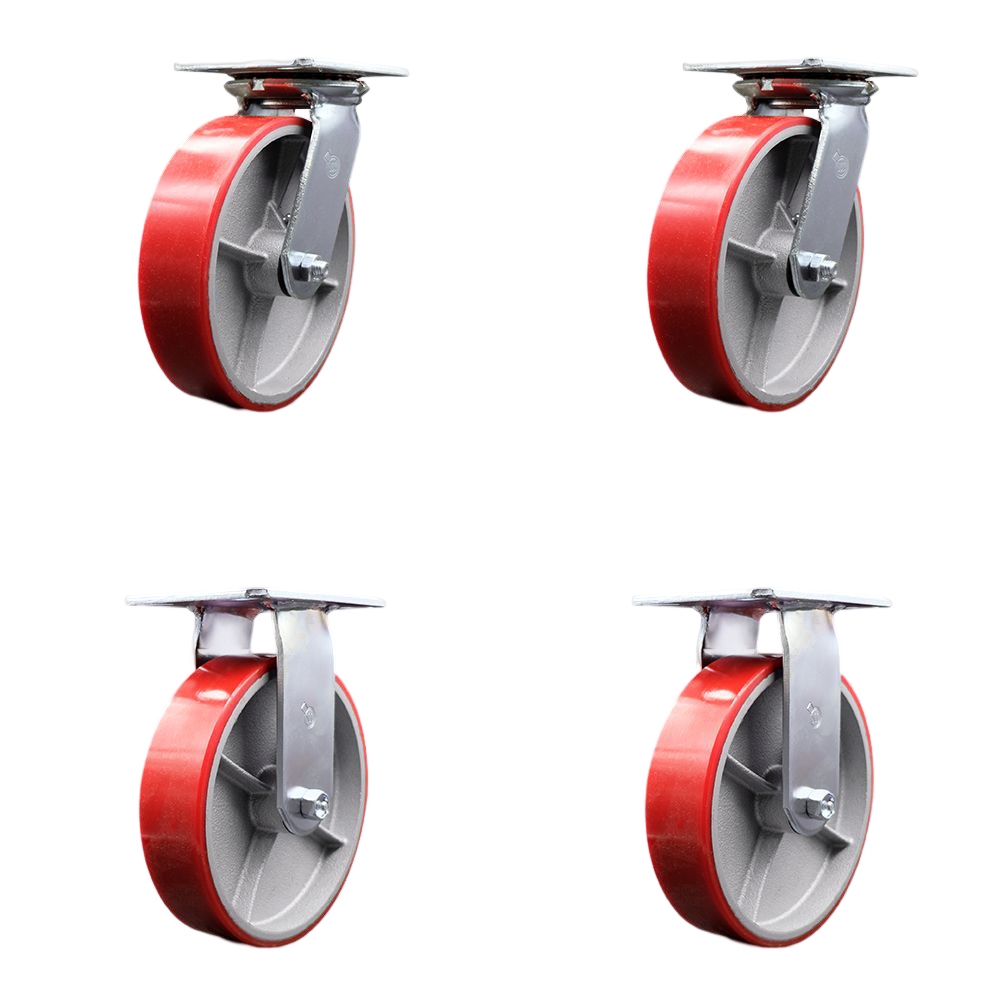

Service Caster Series #35 polyurethane-on-cast-iron caster set, model SCC-35S820-PUB-RS-BSL-2-R-2, is listed as Furniture Hardware in color Other, size 8" Wheel. SKU sku-353546411; UPC 011586595927. The 8 Inch set has ball bearings, 2 swivel-lock casters and 2 rigid casters.

Across the series, a 4" wheel has a 5-5/8" mounting height and a 700 lbs capacity; a 5" wheel has a 6-1/2" mounting height and a 1000 lbs capacity; a 6" wheel has a 7-1/2" mounting height and a 1200 lbs capacity; and an 8" wheel has a 9-1/2" mounting height and a 1250 lbs capacity.

The 4-1/2" x 6-1/4" top plate has a bolt-hole pattern ranging from 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can be bolted or welded on. A side-lock brake presses against the wheel hub to stop wheel movement. A bolt-on swivel lock fits into one of 4 raceway notches, holding the swivel for straight-line travel at any 90 degree angle. Using both locks stops movement of the wheel and swivel.
