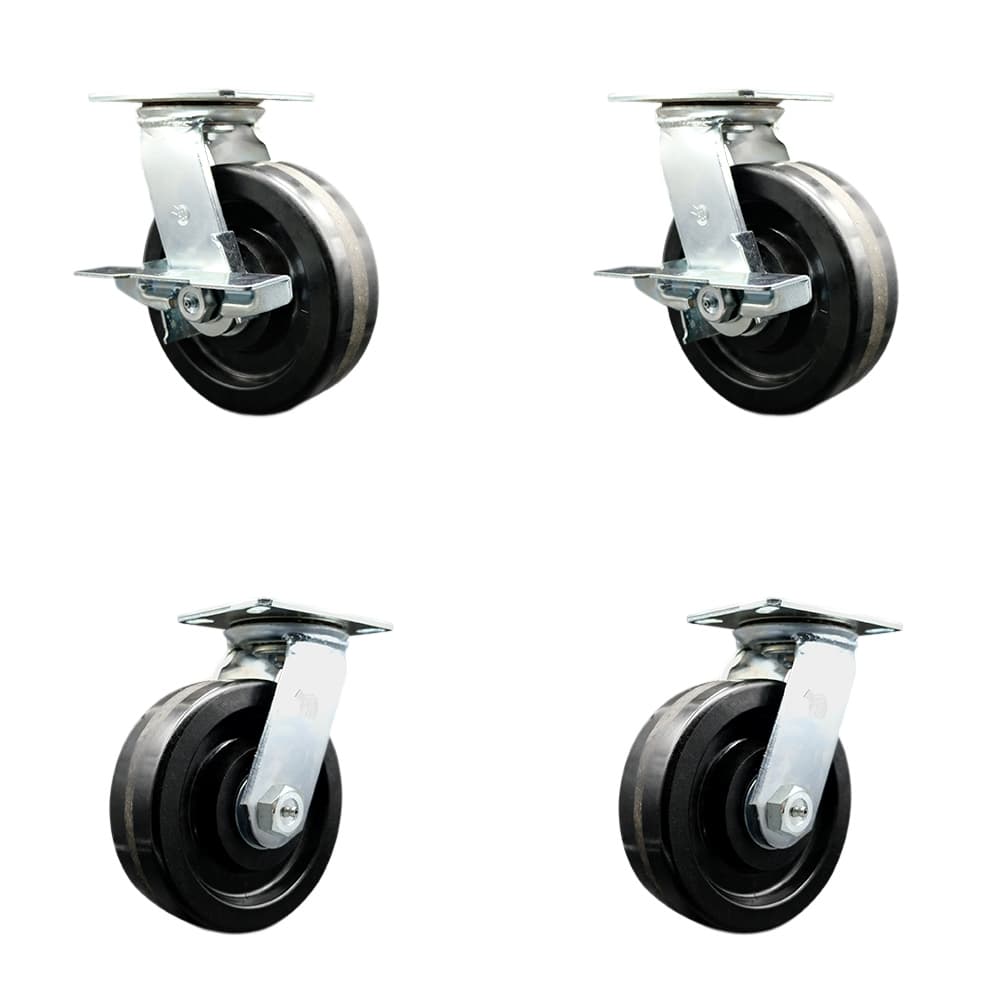

8 Inch Phenolic Wheel Heavy Duty Top Plate Swivel Caster Set with 2 Brakes SCC

These Service Caster Series #55 Phenolic casters offer various wheel sizes and mounting heights: 6” Wheel: 7-1/2” mounting height & 8” wheel: 10-1/8” mounting height. Weight capacity ranges from 1,800 lbs on the 8” caster. Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on. Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely.
