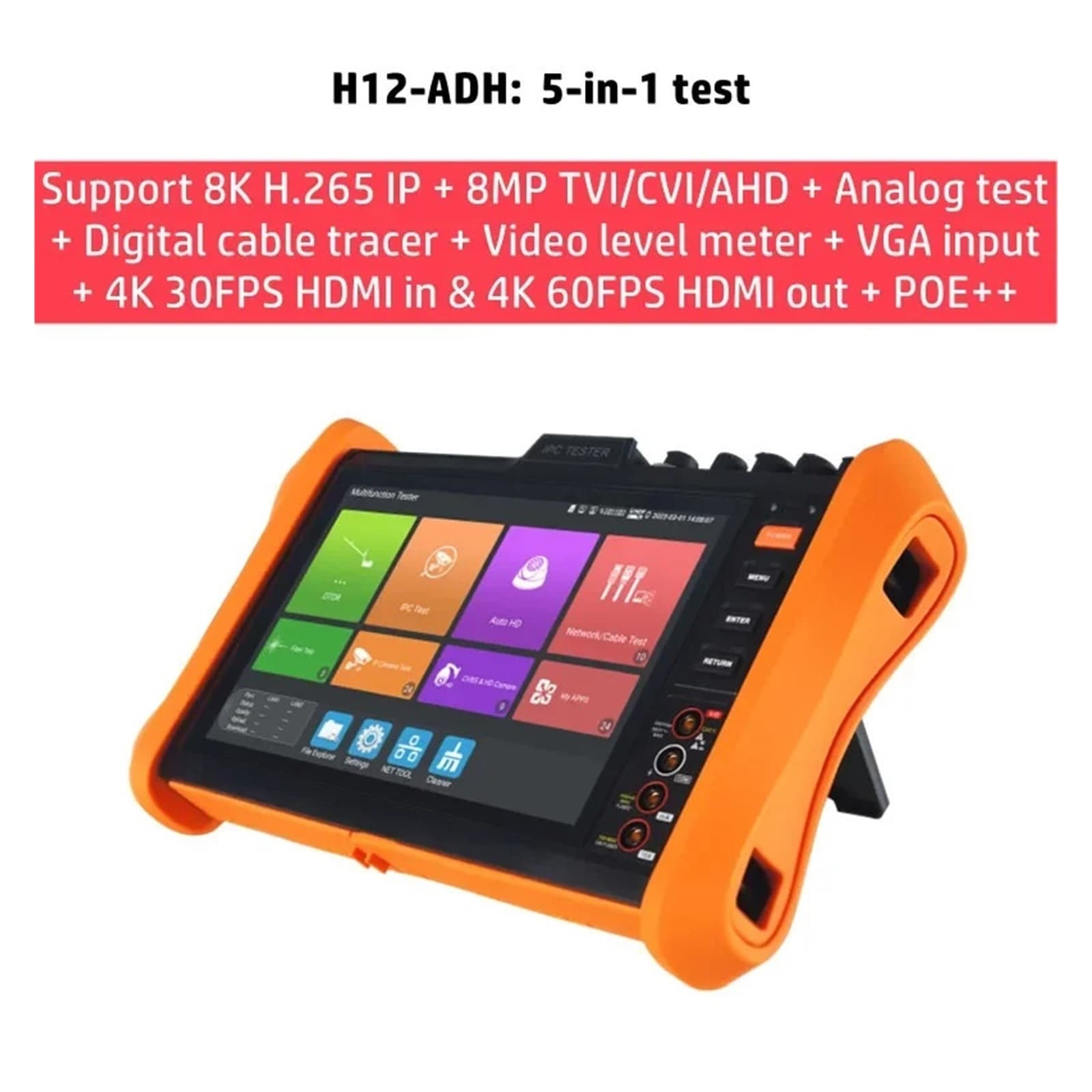

8" H.265 IP Camera Tester 8K CCTV Tester SFP PoE++ AHD TVI CVI Test Optical Fiber Network Test VGA Cable Tester

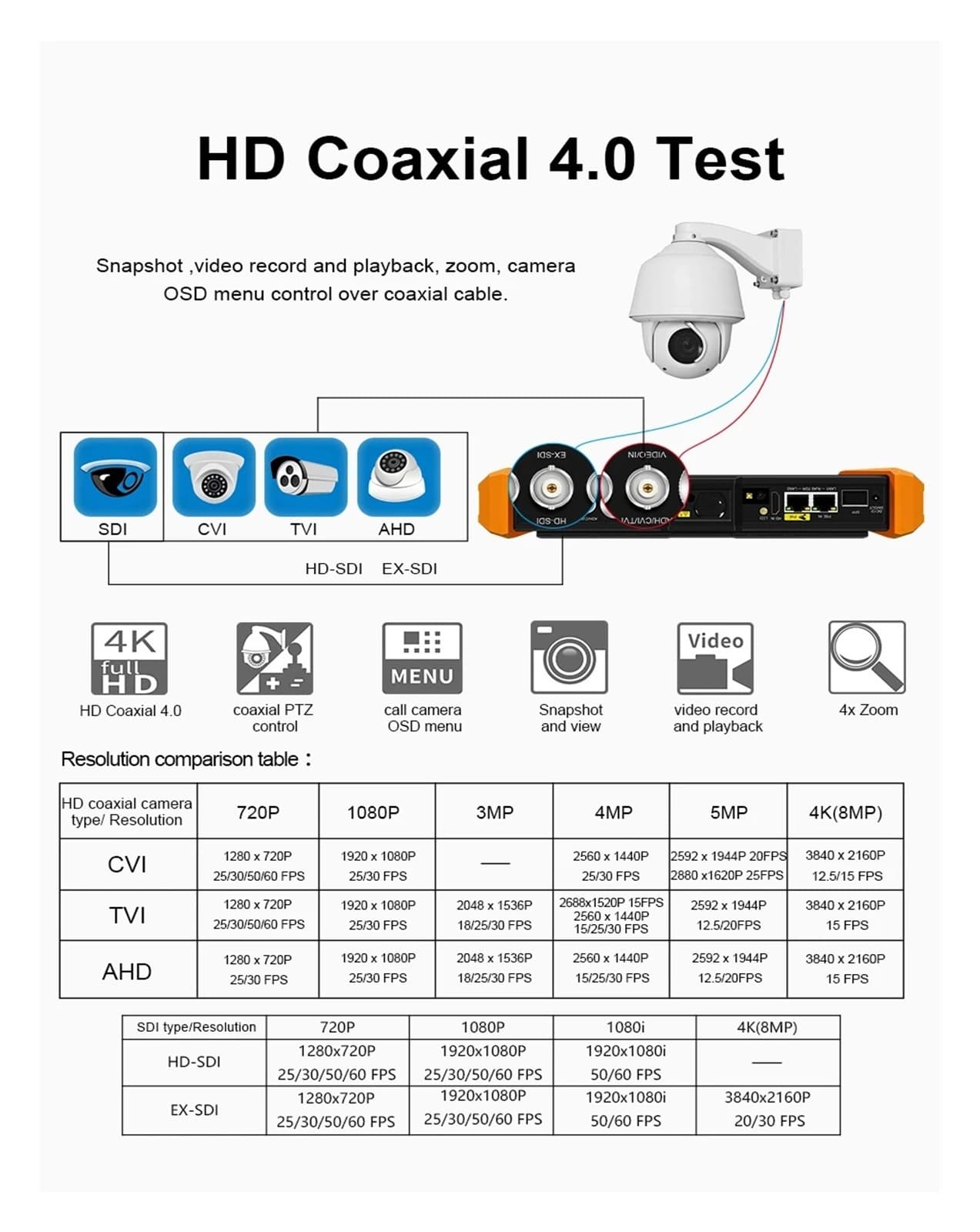

Optical fiber network test/fiber test: Focal length of the lens calculating, recommend lens by testing and monitoring the distance, display real-time images, simulating the display area of different lens sizes of 2.8 /3.6 /4 /6 /8 /12 /16 /25mm,for reference in lens purchase. Camera test: 8 inch IPS touch screen, 1920*1200 resolution 8K H.265 video display via mainstream Support TVI 5.0 test TVI 5.0 test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback coaxial PTZ control call OSD menu 8MP AHD test, 3840 x 2160P 15 FPS,4xzoom, video record & playback coaxial PTZ call OSD menu 8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback coaxial PTZ call OSD menu 8MP EX-SDI test, 3840 x 2160P 25/30 FPS,4xzoom, video record & playback coaxial PTZ call OSD menu (Optional) HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback coaxial PTZ call OSD menu (Optional) 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback coaxial PTZ call OSD menu (Optional)
