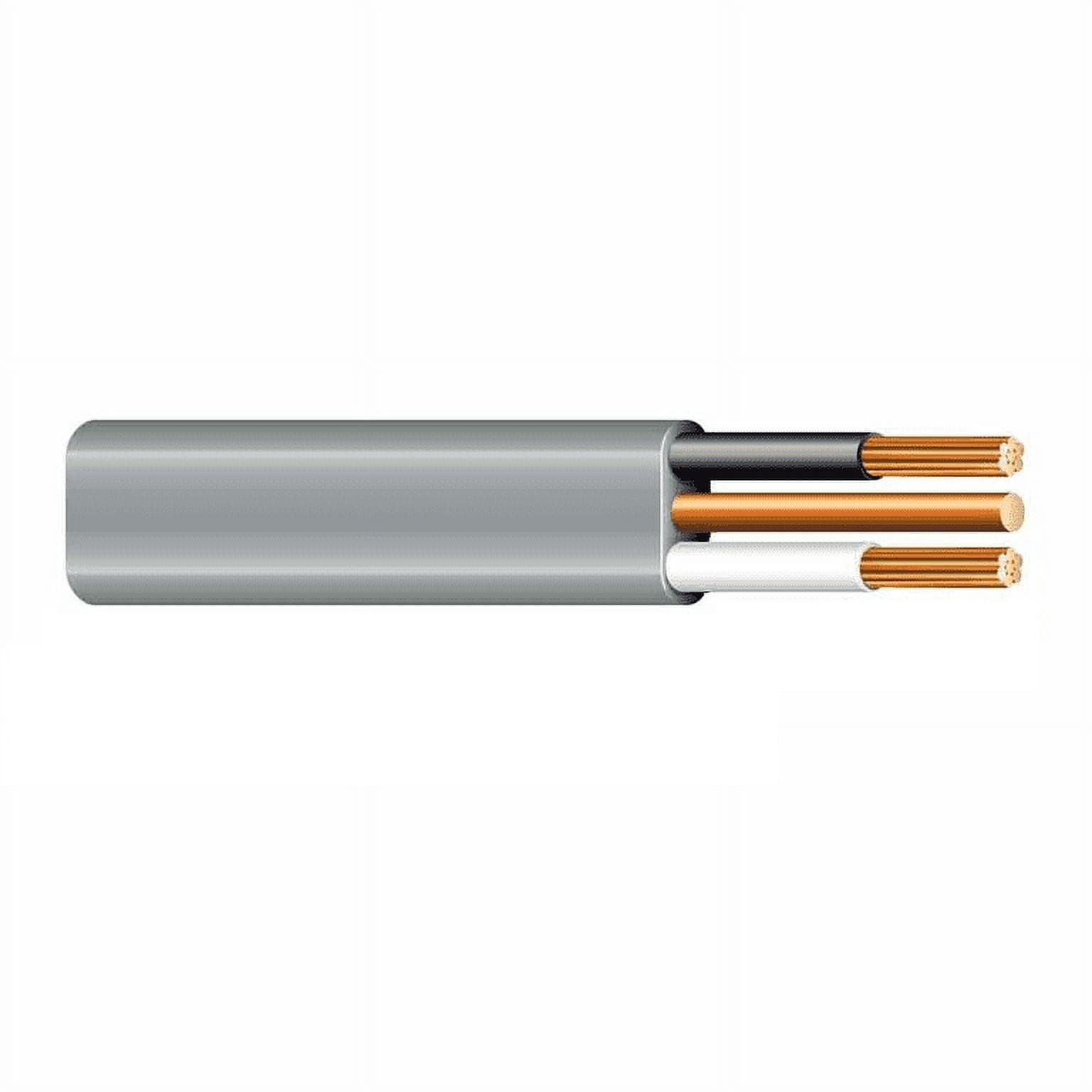

75' 6/2 UF-B Underground Feeder Cable with 10 AWG Ground, Gray, 600V

75' UF-B underground feeder cable — 6 AWG conductors, 2 conductors plus a 10 AWG ground. Conductors are copper with 7 strands each and the cable carries a 600V rating with an allowable ampacity of 55 Amps. Jacket material is PVC in gray. Electrical and physical specifications: Size AWG: 6; Conductors: 2; Conductor Material: Copper; Ground Wire Size AWG: 10; Number of Strands: 7; Jacket: PVC. Insulation and jacket measurements: Insulation Thickness (inches): 0.035; Insulation and Jacket Thickness: 35 mils; Jacket Thickness: 45 mils. Outside Diameter: 770X338. Weight figures: Weight (Lbs/1000ft): 305; Weight per 1,000 ft: 303 lbs.

Shipping & Returns

Product image 1
Price unavailable
75' 6/2 UF-B Underground Feeder Cable with 10 AWG Ground, Gray, 600V
$463.00
