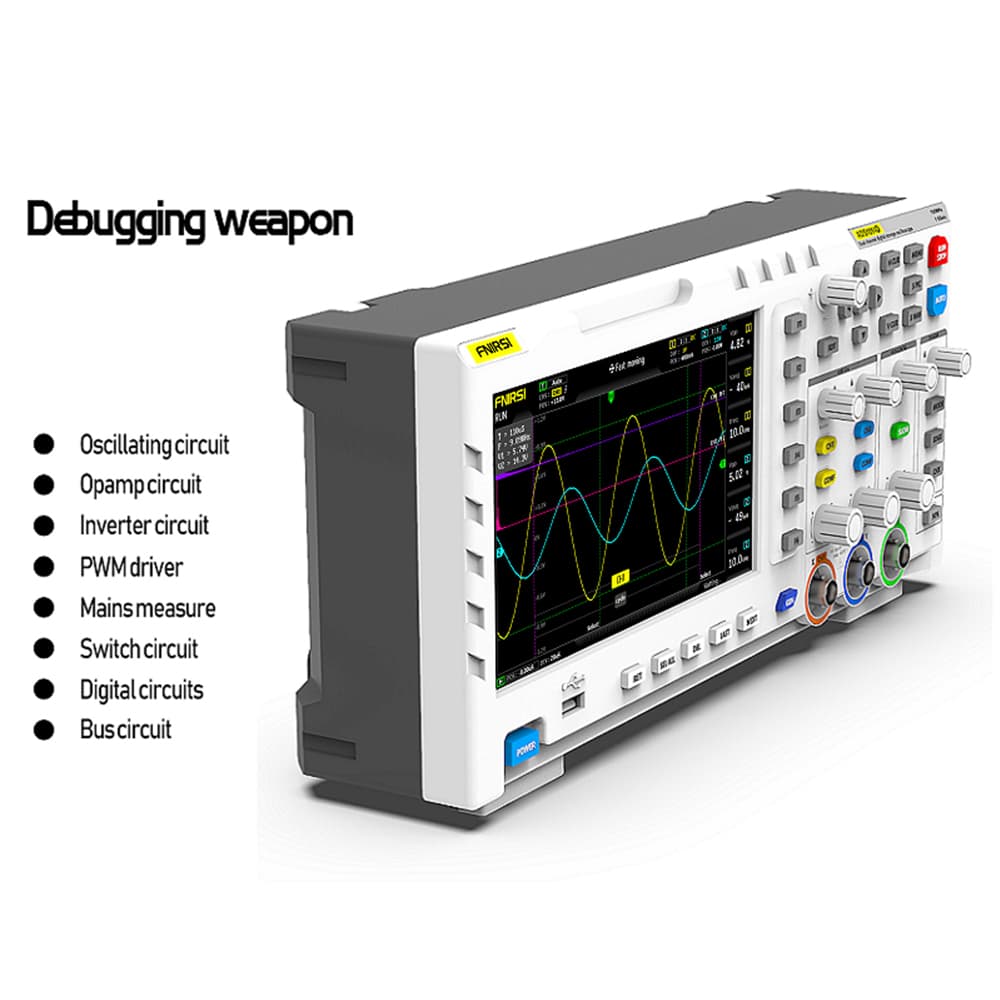

7 inch LCD 2-Channel Digital Oscilloscope DDS Signal Generator 100MHz* 2 Analog Bandwidth 1GSa/S Sampling Rate

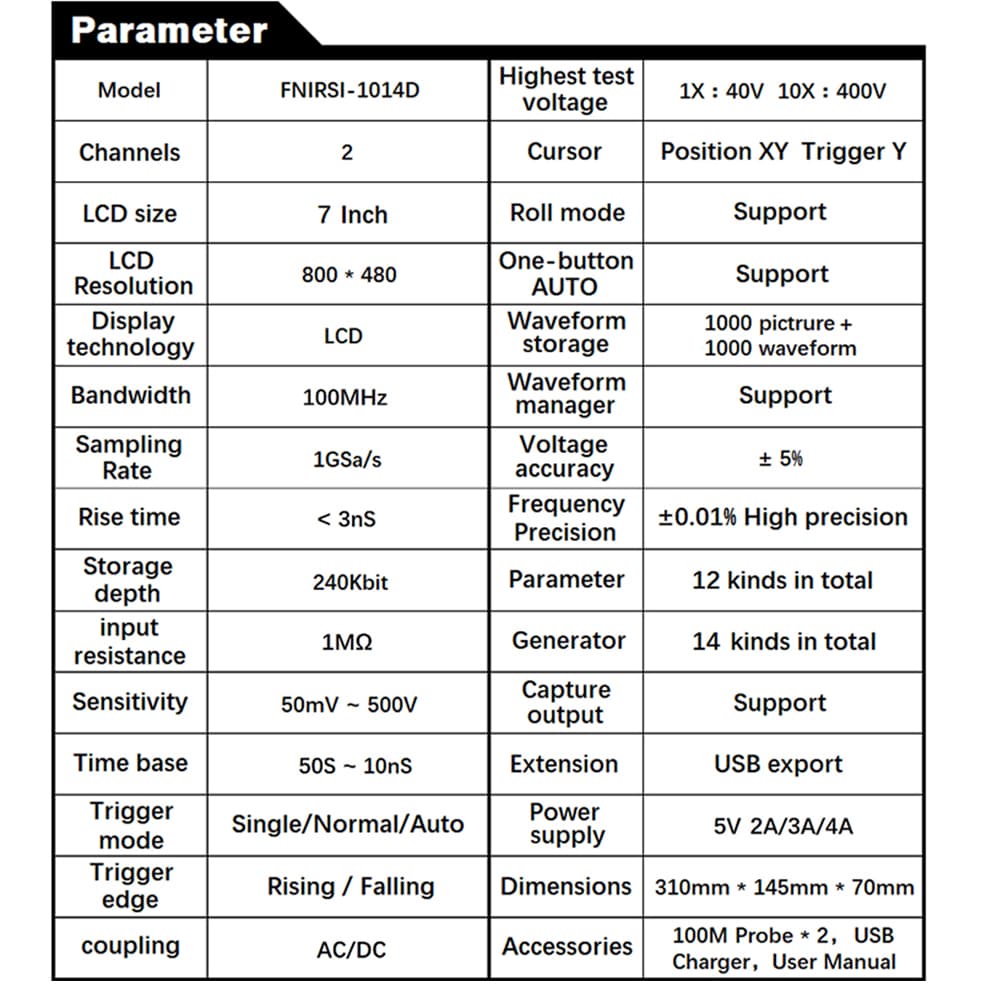

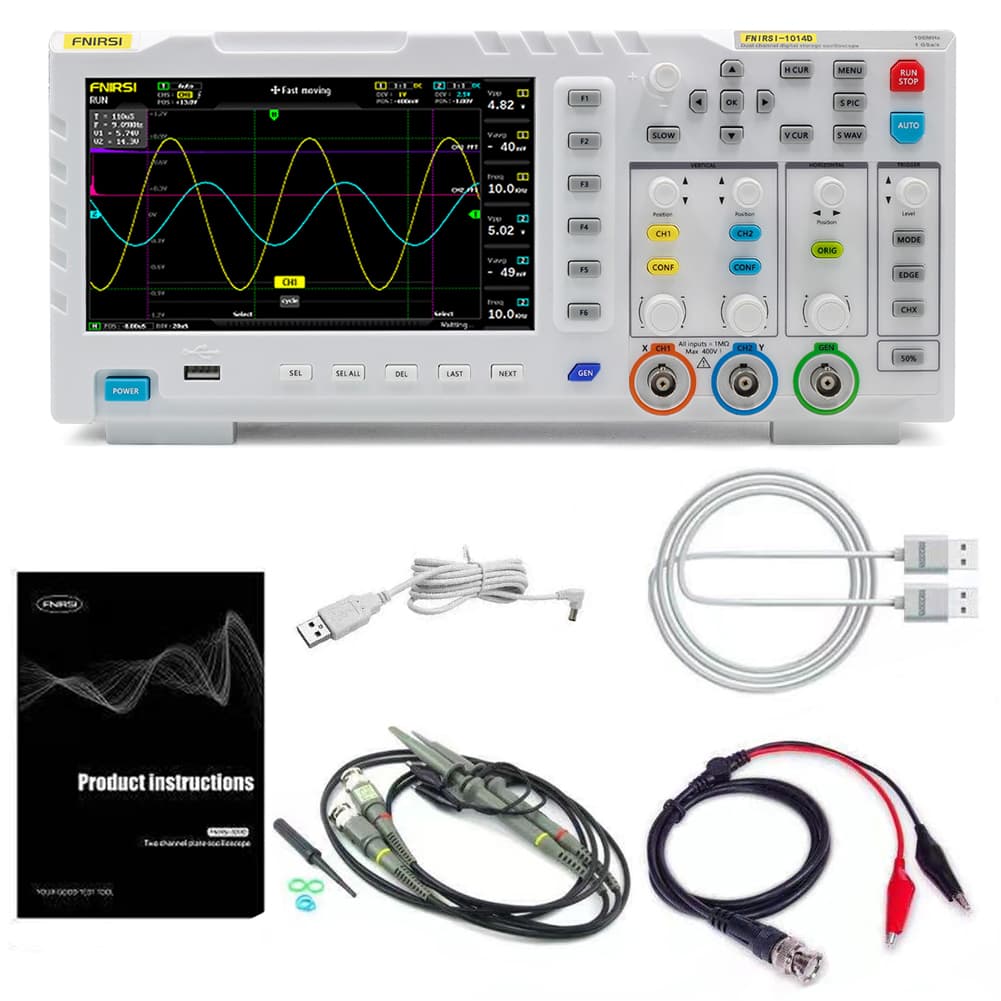

Features: Easily Measuring Original Capture Output Professional Designed Specifications: Material: ABS Analog bandwidth: 100MHz * 2 Number of channels: 2 channels Maximum real-time sampling rate: 1GSa/s Vertical sensitivity: 50 mV/div ~ 500 V/div Horizontal time base range: 50S/div ~ 10nS/div Maximum test voltage: 40 V (1X probe), 400 V (10X probe) Storage depth: 240Kbit Input resistance: 1MΩ ADC precision: 8bits Coupling mode: AC/Direct Current Trigger mode: Single, Normal, Auto Trigger edge: Rising edge/Falling edge External trigger voltage 0~40 V Extension ports: USB picture export Package size: 340 x 140 x 70 mm / 13.4 x 5.5 x 2.8 in Package weight: 1949 g / 4.3 lb Packing list: 1 x FNIRSI-1014D Oscilloscope host 2 x Matching 100MHz Probe (1x and 10x） 1 x Clip 1 x USB data line 1 x English user manual
