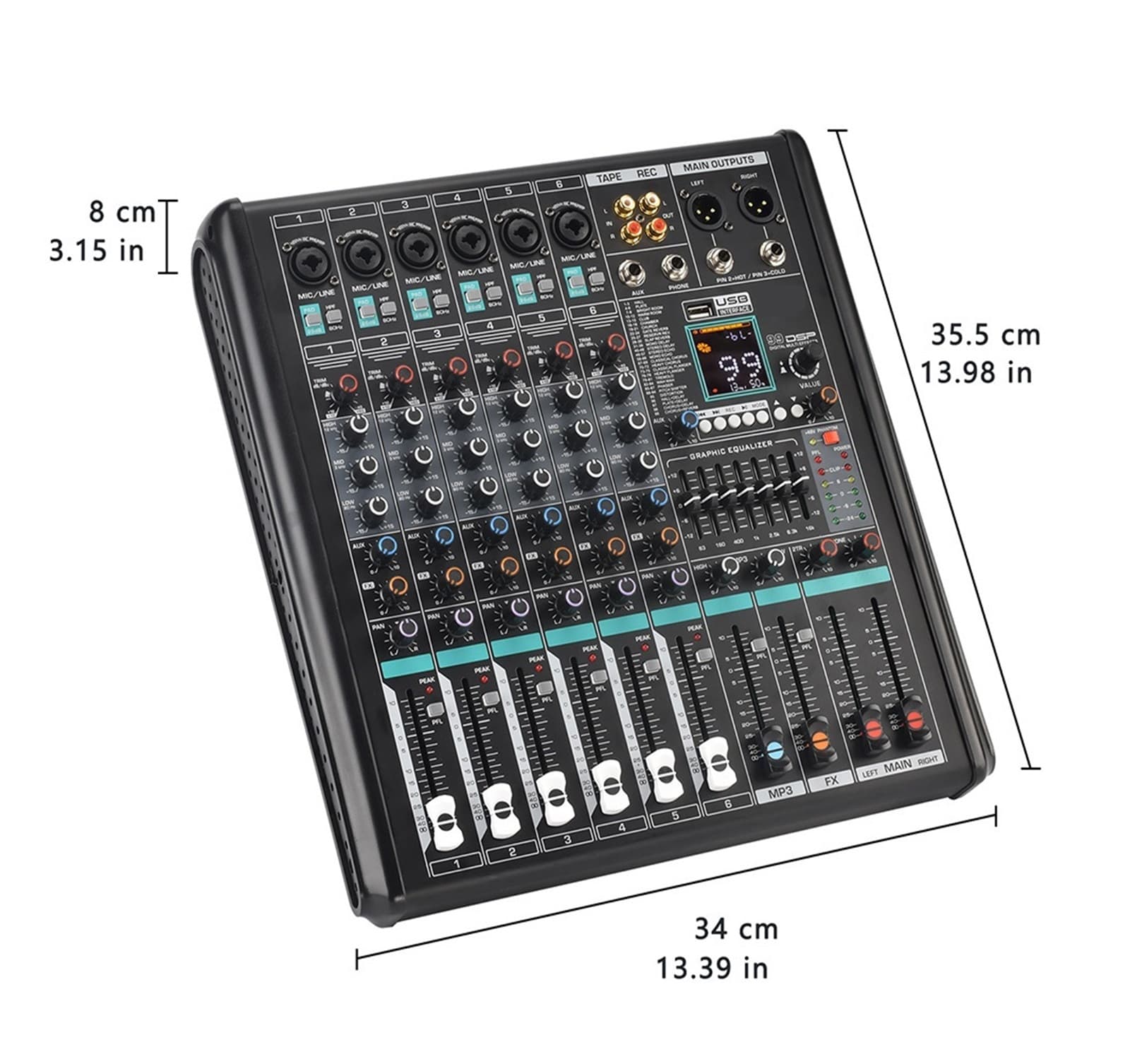

6 Mono Channel Mixing Console Monitor Low Cut 99 DSP Effect PAD Audio Sound Mixer 7 Band EQ USB Record

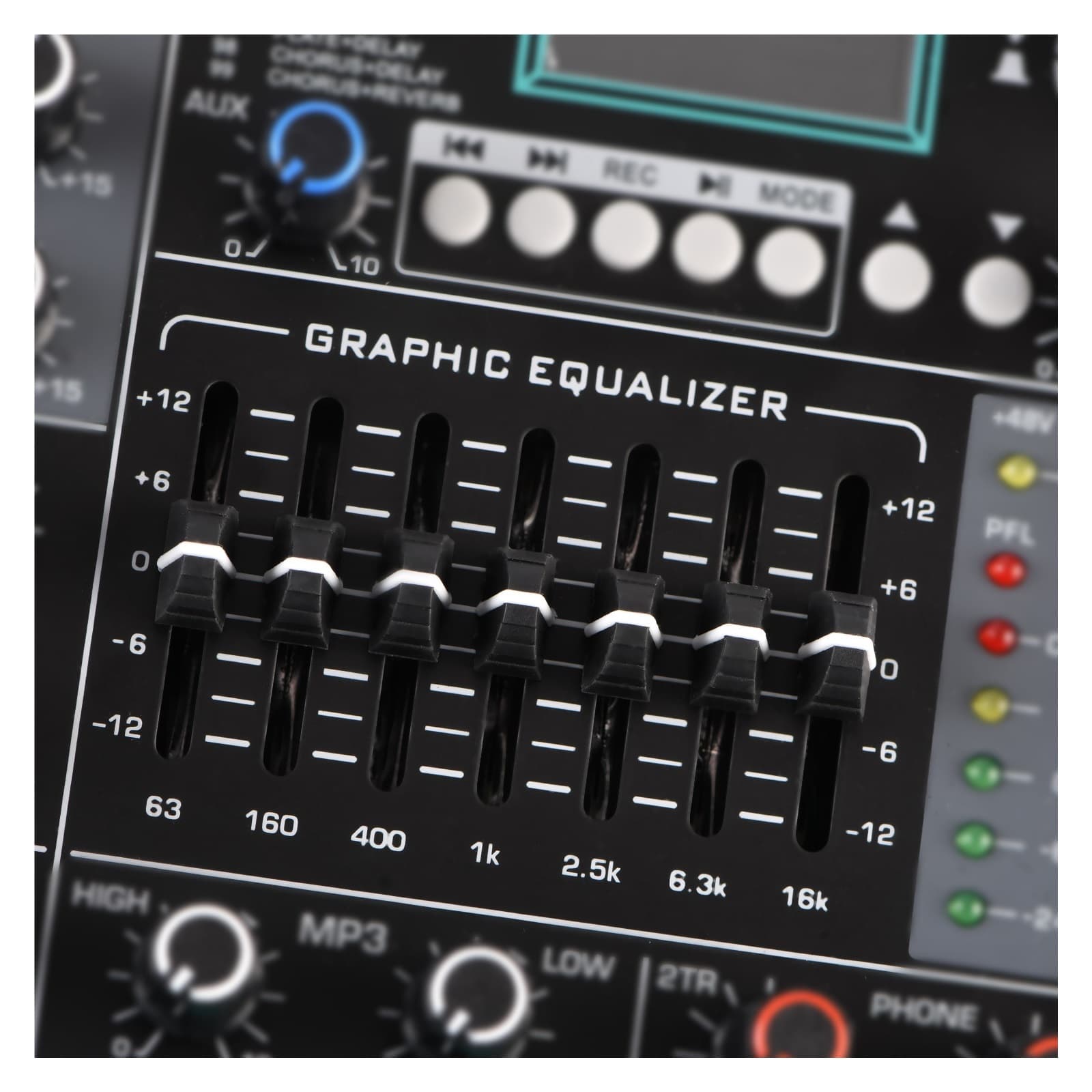

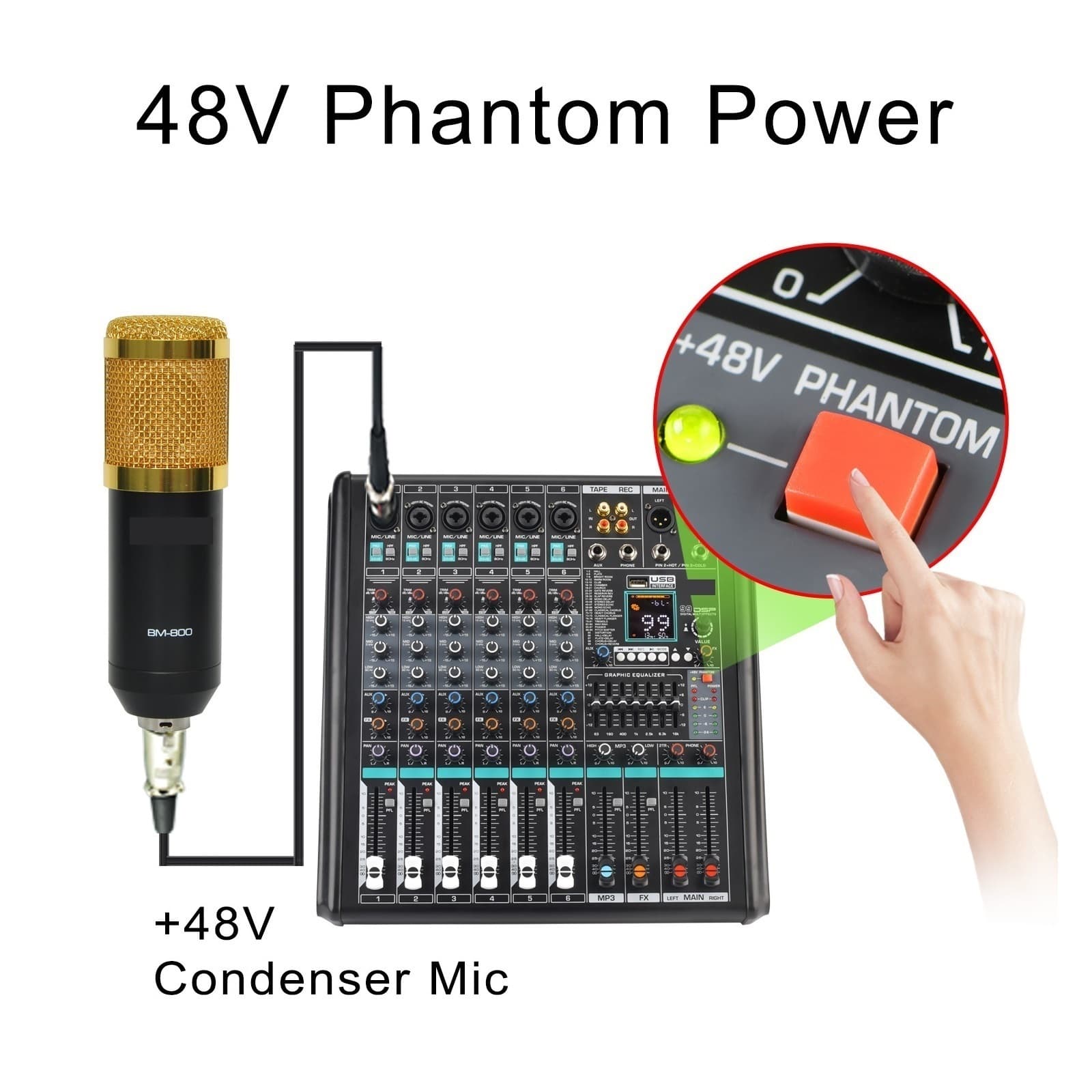

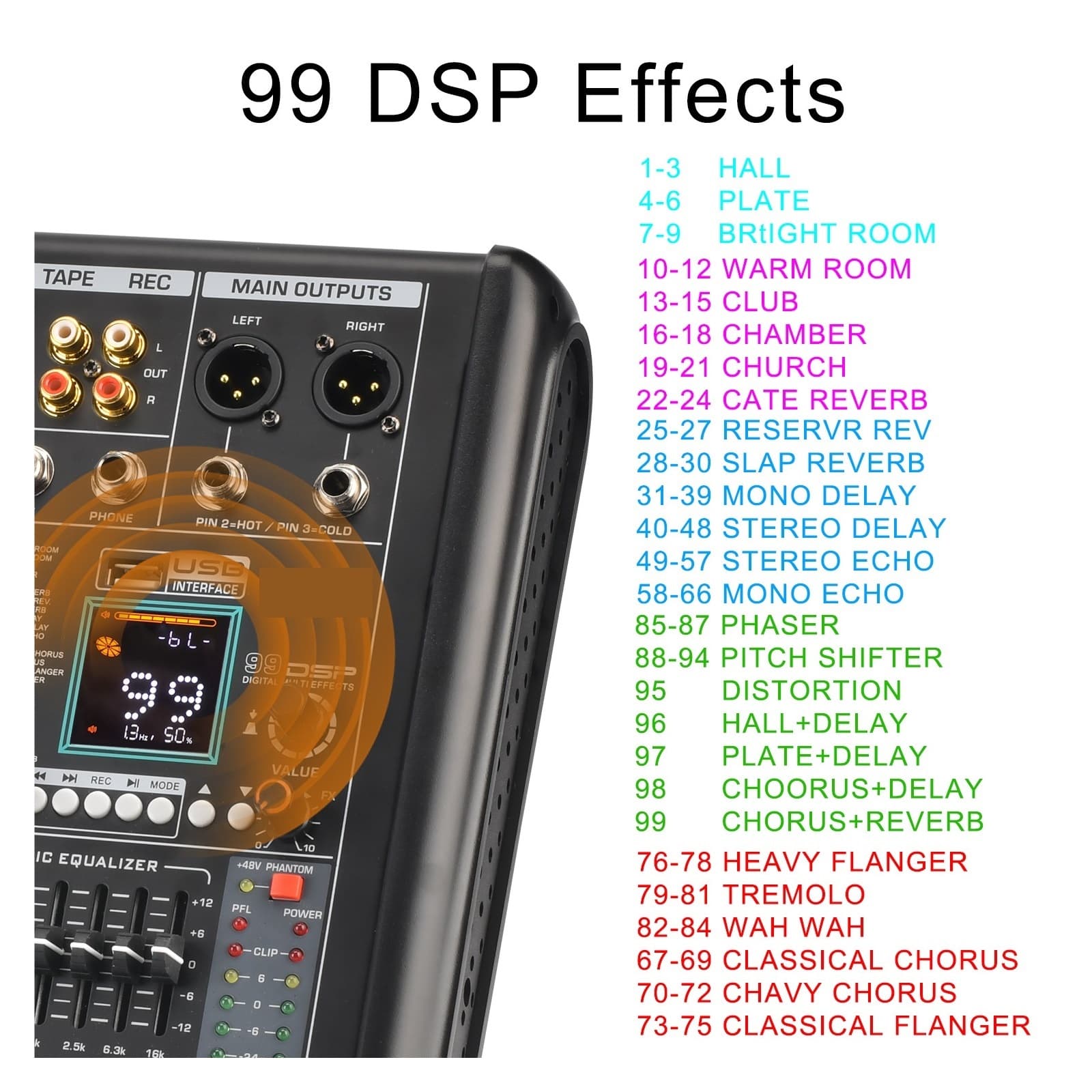

PFL Monitor Function If you want to monitor the channels signal via headphone, please press down the "PFL" button. HPF Low-cut Function When connect to microphone, if there is noise, such as saliva, wind, etc. Please press down the HPF low cut button to reduce them. -Compatibility 1. Volume adjustment 1) Push MP3 fader, adjust the channel volume to main out 2) Adjust MAIN output fader 99 Digital Effects (1) Choose effects A) Press the Up/Down button to the number of the effect you want, then the selected effect will be determined automatically. (2) Adjust effect parameters: "VALUE" Knob. A) Press the VALUE knob B) Rotate to the parameter you want, then press "VALUE" knob to confirm your selection. (3) Output the effect A) Rotate the FX knob of channel. B) Rotate master FX knob. C) Push the FX fader. Please note: Some effects only can adjust the parameter 1, no parameter 2 7-Band Main EQ 48V Phantom Power (1) Press down "+48V" button, LED light is on, +48V phantom power works. (2) +48V phantom power is only for XLR socket, not for 6.3 socket. Dynamic Microphone When you connect dynamic microphone to audio mixer with XLR cable, please don't power on +48V phantom power. Condenser Microphone If your microphone is +48V condenser microphone, please connect it to mixer via XLR cable, and power on +48V phantom power. Please note: For this model, it does not support non-48V condenser microphone. (such as 3.5mm condenser computer microphone) Protective film on the display There is a protective film on the display to prevent the display from being scratched. If the protective film is not clear, you can tear off the protective film. USB Port Application (1)USB port is not for USB microphone, you can't connect USB microphone to audio mixer. (2) U-disk format: FAT32 A) USB port can't recognize NTFS U-Disk B) There is at least one song in the FAT32 U-Disk (3) U-disk record: A) Insert a FAT32 U-Disk, and there is at least one song in the U-Disk B) Record format: WAV C) Record operation: (a) Long press "REC" button to start recording. (b) Short press "REC" to exit the recording and start playing the latest recording file. (c) When recording, you can short press "pause (continue)" button to pause (continue) record. D) Record volume adjust: Same as volume control U-disk Play (1) Play format: MP3, FLAC, WAV, WMA (2) Insert U-Disk into USB port, U-Disk will play automatically (3) Volume adjustment (same as volume control) PC Play Please note: When connect to the computer to record, the sound will small. PAN Knob Rotate the PAN knob, adjust the headphone and main out volume to the right/left channel. And the PAN knob only for play, not for recording PAD Button If the channel signal is too lar, please press the PAD button to reduce 26dB. Gain Rotate the TRIM knob, the signal level will increase, and the noise level will increase at the same time. RCA Jack It can connect to the CD player, e phone, active speaker, etc. 70mm Volume Control Fader
