Service Caster SCC-GR20S615-PHS-TLB-716138-4 sku-1309961600

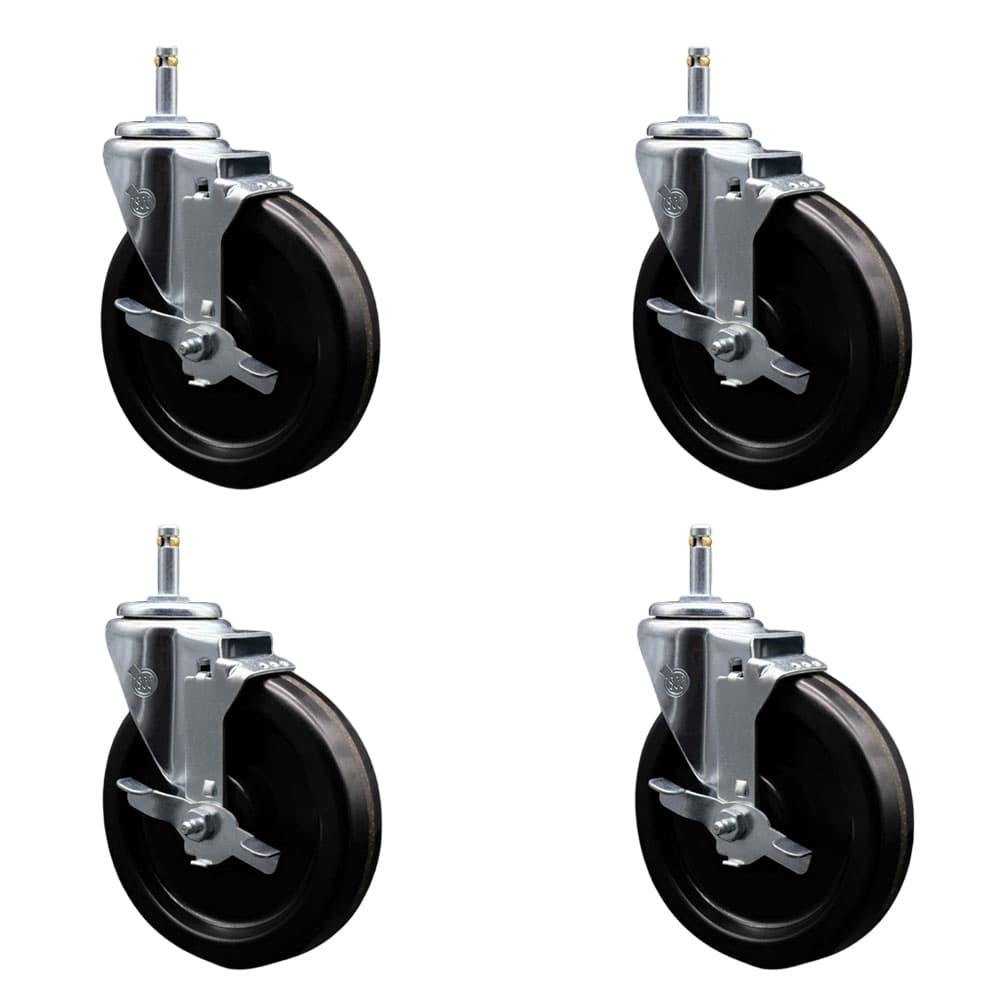

Service Caster Series #20 phenolic swivel caster, model SCC-GR20S615-PHS-TLB-716138-4, is Black Furniture Hardware with a 6 Inch wheel and a total lock brake. The 6" Wheel has a 7-1/8" mounting height. Other wheel and mounting-height options are 3" and 4-1/8", 3.5" and 4-5/8", 4" and 5-1/8", and 5" and 6-1/8". Each listed size has a 300 lbs capacity per caster.

All use a 7/16 Inch diameter grip ring stem that is 1-3/8" long. To check the stem diameter, Service Caster recommends a drill or hardware gauge, a 7/16" wrench, or the paper-wrap method: wrap a narrow strip tightly around the stem, mark the overlap, and measure from the start to the mark. It should measure 1-3/8".

Brake options include top lock, which locks the wheel; total lock, which locks the wheel and swivel; and posi lock, which locks the wheel with a pedal above the tread rather than at its side. SKU: sku-1309961600. UPC: 734005091090.
