Service Caster SCC-KP92S630-PHR-2-SLB-2 sku-717102362

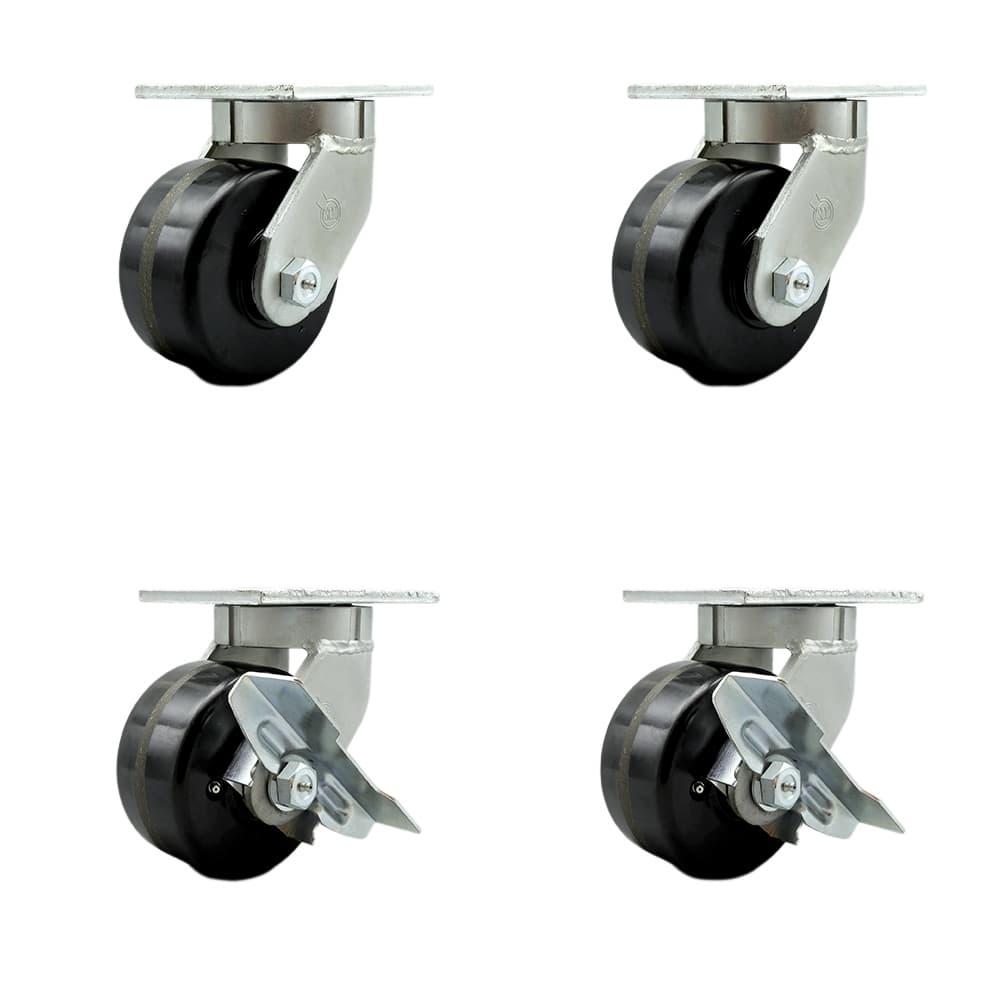

Service Caster's Kingpinless Series 92 phenolic caster set is listed as Furniture Hardware in the color Other. This set of 4 has a 6 Inch wheel, listed as size 6" Wheel, and 2 brakes per caster. Series 92 wheel and mounting-height options are 6" and 8", 8" and 10-1/2", 10" and 12-1/2", and 12" and 15-1/2", respectively.

The phenolic wheels resist impact, water, oil and grease, help protect floors, and are non-metallic and spark proof. Weight capacities are 2000 lbs for the 6" caster, 2500 lbs for the 8", 3000 lbs for the 10" and 3500 lbs for the 12". The 5-1/4" x 7-1/4" top plate has a bolt-hole pattern from 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can be bolted or welded on.

The side lock brake holds the wheel hub; the bolt-on swivel lock fits into 1 of 4 raceway notches to hold the swivel for straight-line tracking at a 90 degree angle. Used together, the brakes stop both wheel and swivel movement. Model: SCC-KP92S630-PHR-2-SLB-2. SKU: sku-717102362. UPC: 670533881126.
