56HT300-II 2-Speed 56-Frame SPA Pump AC220-240V 60Hz — 3HP/200GPM/65.61ft High or 0.4HP/100GPM/16.07ft Low, 2" Port, 90° Rotational Interface, UL Tested

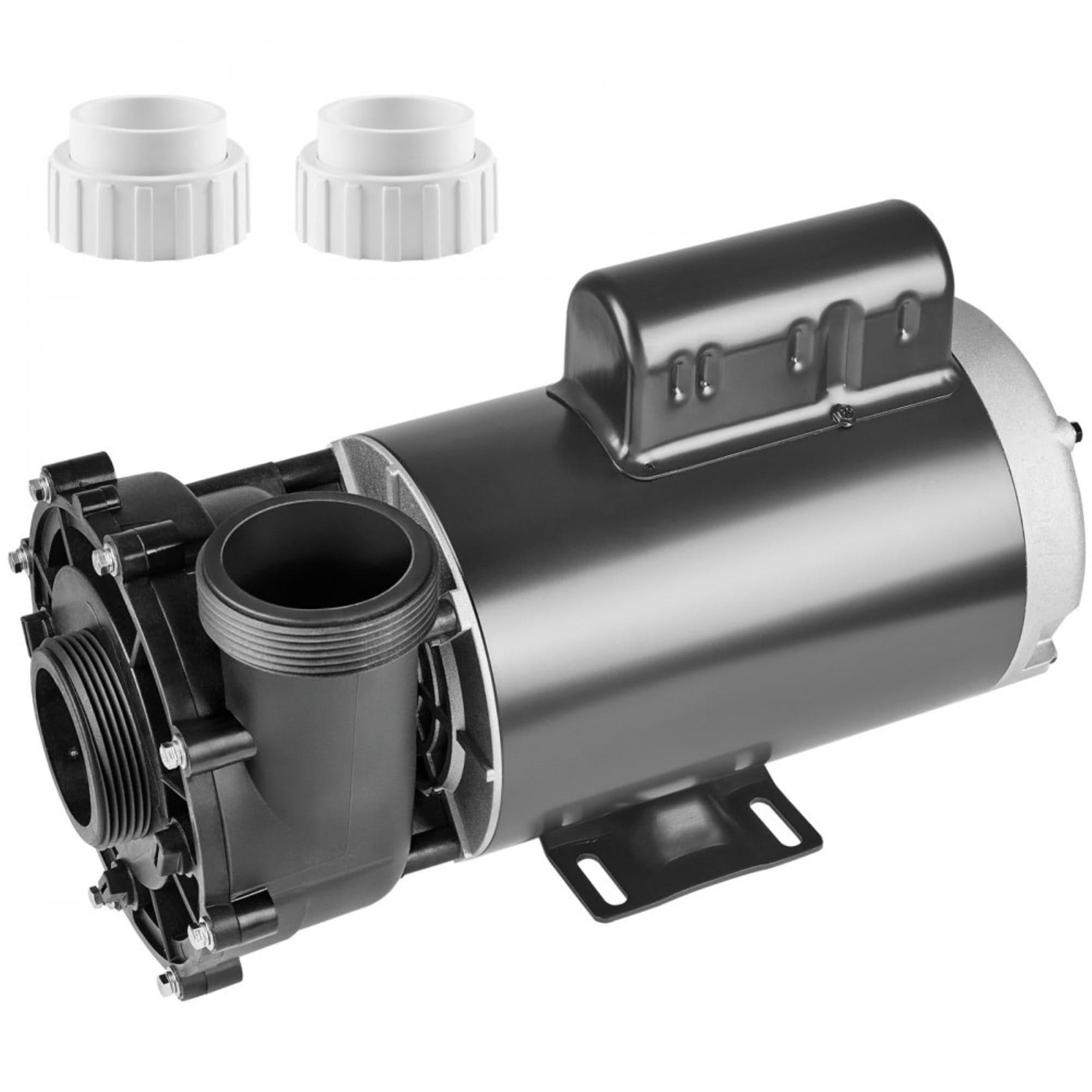

Overview: Replacement-quality 56 Frame SPA pump (Item Model Number: 56HT300-II) designed for hot tubs. This unit runs on AC220-240V, 60Hz and includes two 2 in/5.6 cm connectors to accommodate a range of bathtub fittings. Note: the pump’s performance is determined by input power, so verify your original pump’s parameters before ordering. Two-Speed Performance: Engineered with dual speeds to suit varied needs — High speed delivers 3.0 HP with 200 GPM and a head lift of 65.61 ft (20 m). Low speed operates at 100 GPM with a head lift of 16.07 ft (4.9 m); the low-speed horsepower is listed as 0.46 HP in one section and 0.4 HP in the specification block. Both flow and head values match the original specifications. Durable Motor Design: The motor uses pure copper windings and anti-creep bearings to maintain stable impeller rotation. Each motor has been verified through an 80,000-cycle electrical endurance test to ensure long-term, reliable operation. Leak-Proof Construction: Fluororubber shaft seals provide resistance to high temperatures, corrosion, oil, and aging, delivering robust sealing performance in demanding spa environments and minimizing the risk of fluid or particle infiltration during use. Flexible Installation: The pump head and interface can be rotated up to 90° by removing the mounting screws, allowing angle adjustments for tight spaces or special plumbing layouts. The 2" port and the 90° rotational capability simplify piping runs and future maintenance. Safety Features and Certification: Integrated Thermal Protection monitors motor temperature and will automatically open the circuit if an over-temperature condition occurs, safeguarding the motor. The unit has been tested to UL standards for additional assurance. Key Specifications: Item Model Number: 56HT300-II; Voltage/Frequency: AC220-240V, 60Hz; Speed Type: Two Speed; High Speed: 3.0 HP / 200 GPM / 65.61 ft (20 m); Low Speed: 0.46 HP (also listed as 0.4 HP) / 100 GPM / 16.07 ft (4.9 m); Interface Rotation Angle: 90°; Included Connectors: two 2 in / 5.6 cm; Net Weight: 35.27 lbs / 16 kg. Tested to UL Standards.
