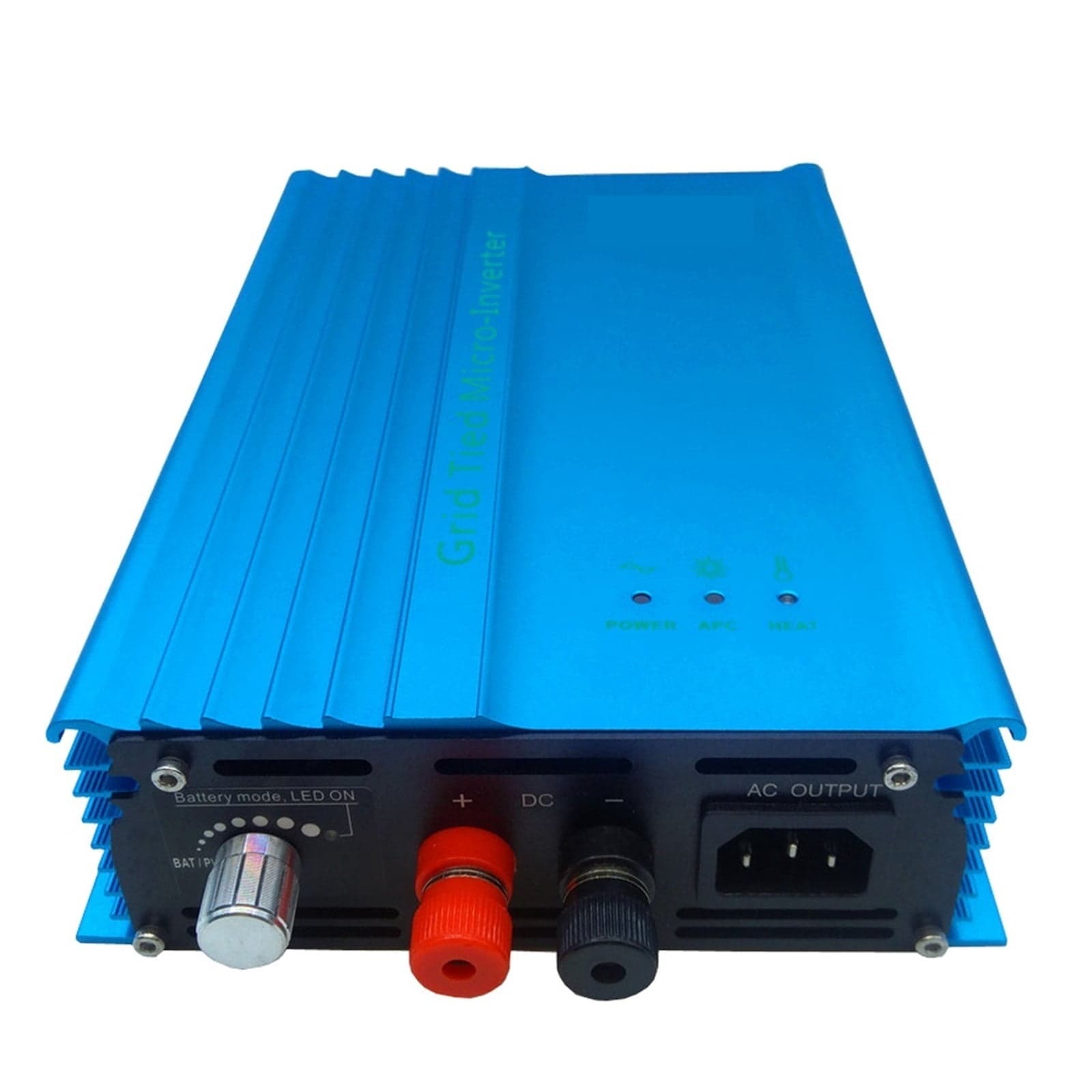

500W Micro Grid-Tie Inverter MPPT Pure Sine Wave for Solar PV Panels — Adjustable Battery Discharge 12V/24V/36V/48V/72V, Prolong Lifespan - PV 50-90V BAT 60V

This 500W grid-tied inverter works fully automatically and requires no continuous monitoring. It continuously assesses the DC input from PV panels and only begins conversion when the solar input is sufficient. The conversion sequence is organized into five operating modes: Startup, Grid-tied begin, Standby, Stop, and Fault-find. Startup: When the start button is activated and both the solar array and utility grid are connected under normal conditions, the inverter transitions into its active operating state. Grid-tied begin: In this mode the unit converts the DC supplied by the PV modules into stable AC and feeds it into the utility grid. To maximize harvested energy, the inverter uses MPPT control technology to track sun rays and maintain optimal efficiency across varying light and temperature conditions. Standby: The inverter switches to standby if it detects insufficient PV input or any abnormal condition (out-of-range voltages, frequencies, or temperatures). Standby preserves the unit until normal conditions return. Stop: If low sunlight causes PV power to remain insufficient and DC voltage drops below 12V for more than 1 minute, the inverter moves from standby into Stop mode. Fault-find: Included as one of the five modes for handling and diagnosing fault conditions. Overall, the device automates mode selection based on input power and system status, using MPPT for peak energy extraction while protecting the inverter from abnormal electrical or thermal conditions.
