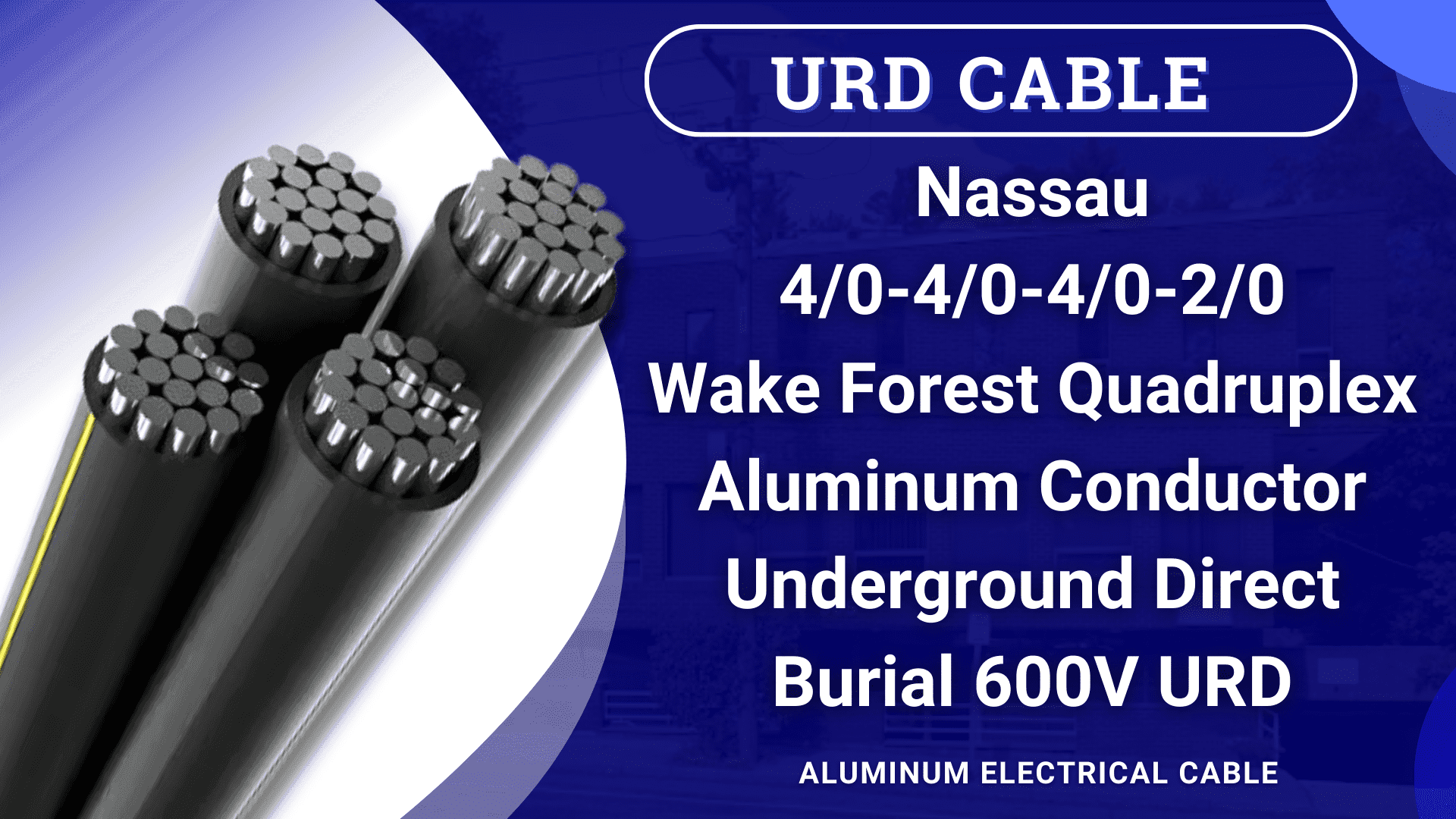

500' Aluminum URD Wake Forest XLP USE Cable — 4/0 4/0 4/0 + 2/0 Neutral (Direct Burial)

500-foot Aluminum URD cable from Wake Forest with XLP insulation, designed for USE applications and direct burial. Conductor layout: three 4/0 phase conductors plus a 2/0 neutral. Conductor stranding: 19. Insulation thickness: 80 mils. Single-phase conductor diameter: 0.658 inches. Overall cable O.D.: 1.588 inches. Weight: 1036 lbs per 1000 ft. Ampacity: 290 Amps for direct burial and 225 Amps when installed in duct.
