Service Caster SCC-SS20S314-SPUS Blue 3" Wheel Caster

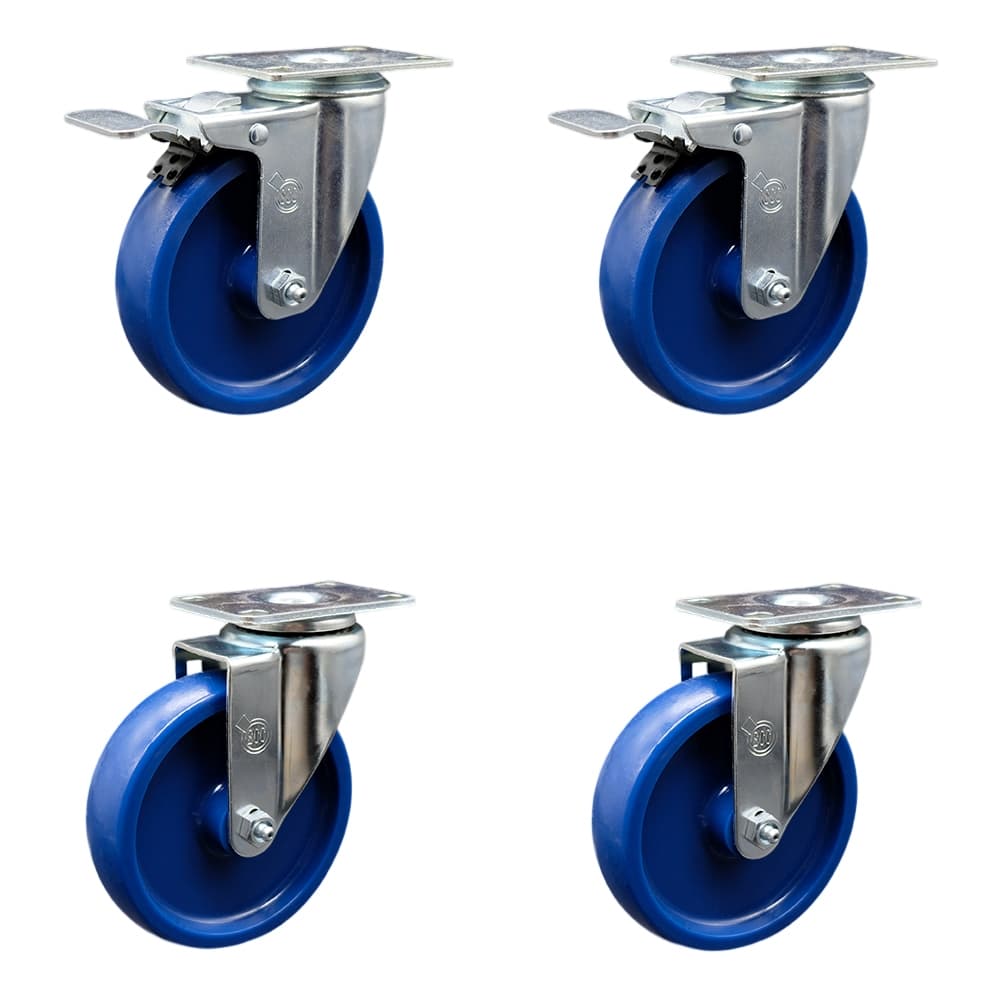

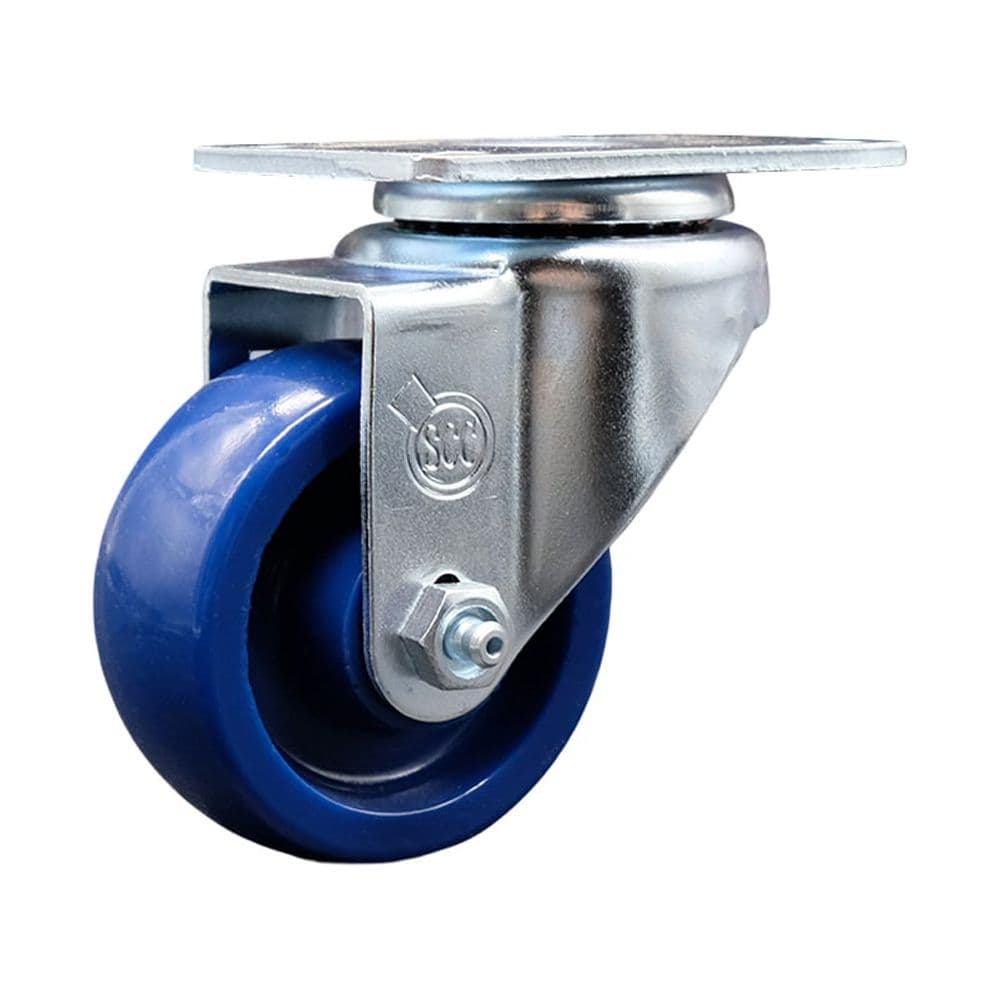

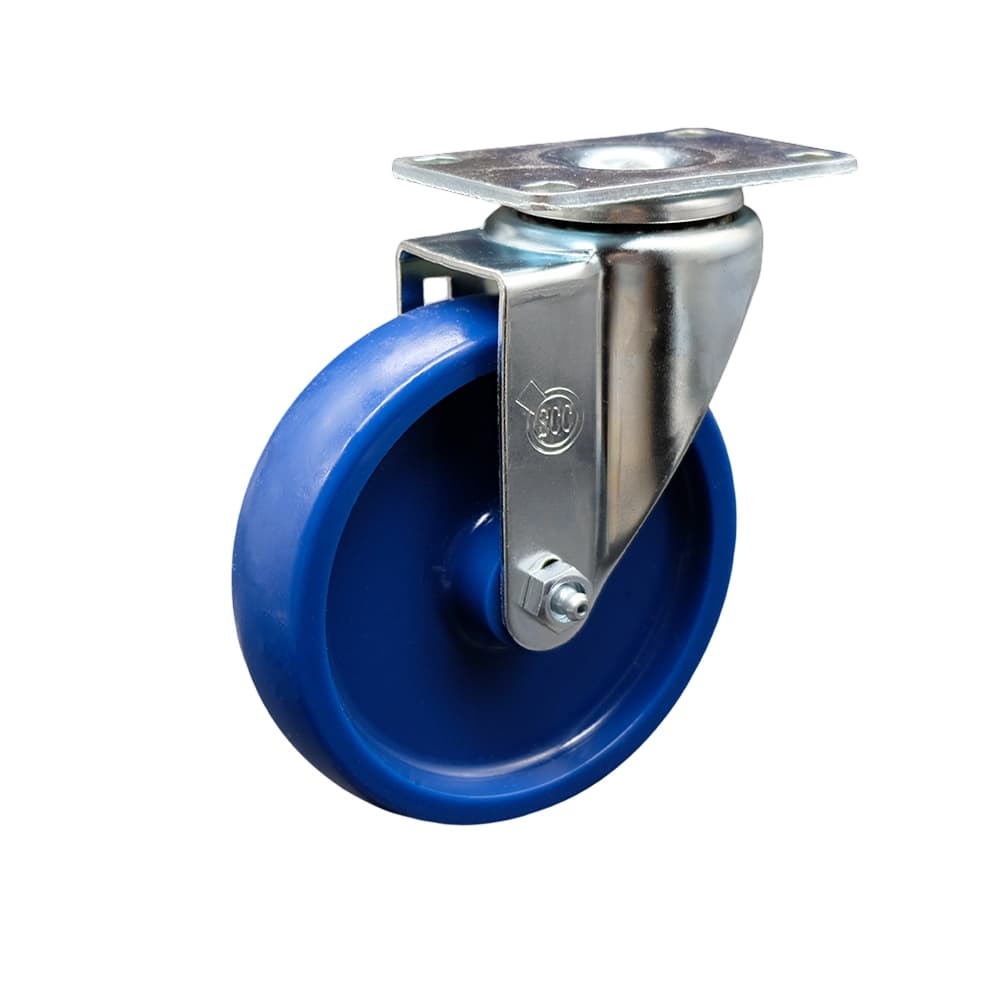

Service Caster SCC-SS20S314-SPUS is a Blue 3" Wheel solid polyurethane swivel caster listed under Furniture Hardware. UPC: 670533919362. Series #20 offers a 3 Inch wheel with a 4-1/8" mounting height; a 3-1/2" wheel has a 4-5/8" height, a 4" wheel has a 5-1/8" height, and a 5" wheel has a 6-1/8" height. The 3", 3.5", 4", and 5" sizes each have a 300 lbs capacity per caster.

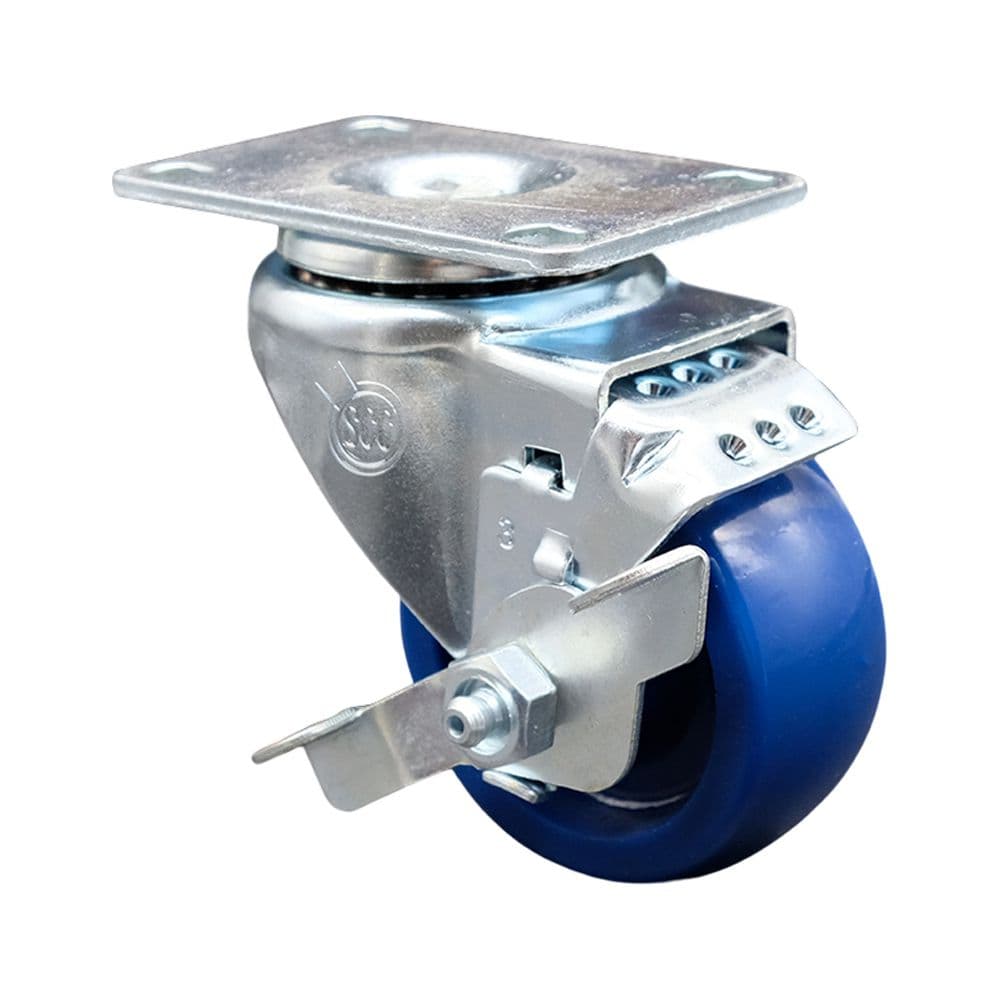

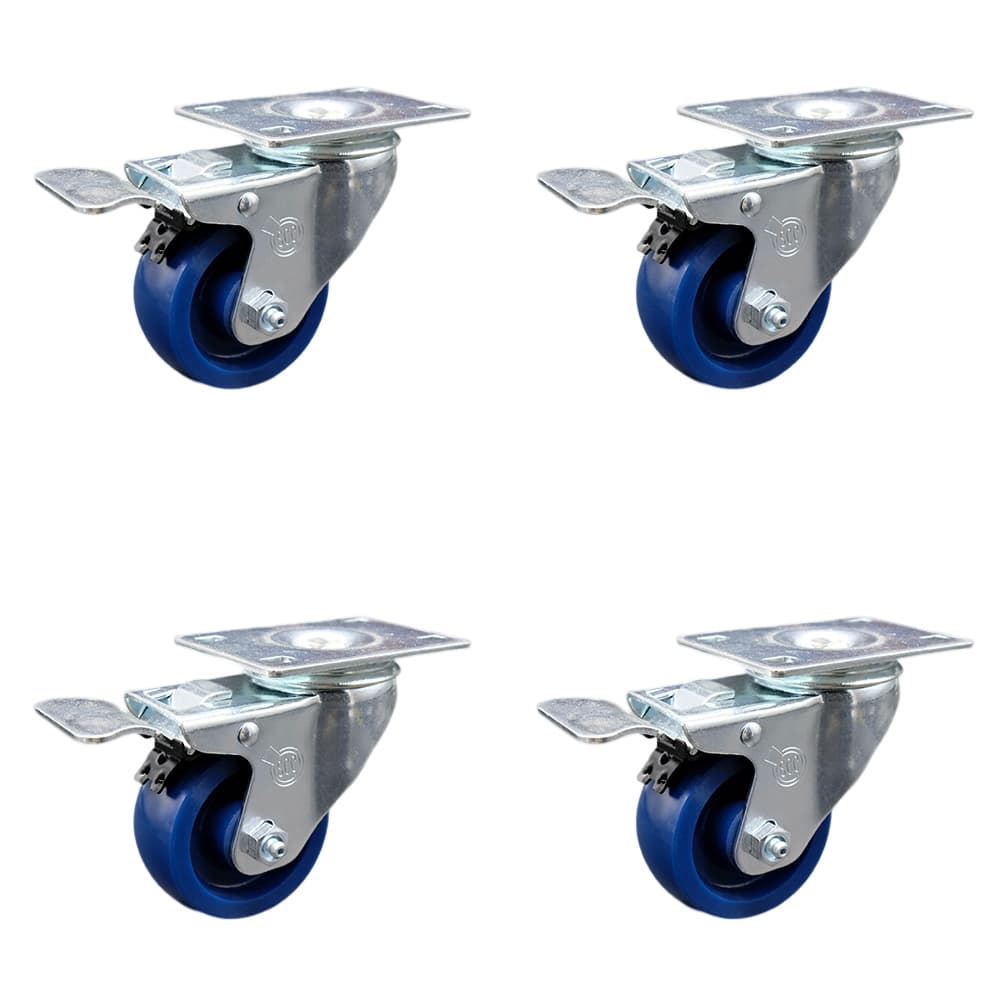

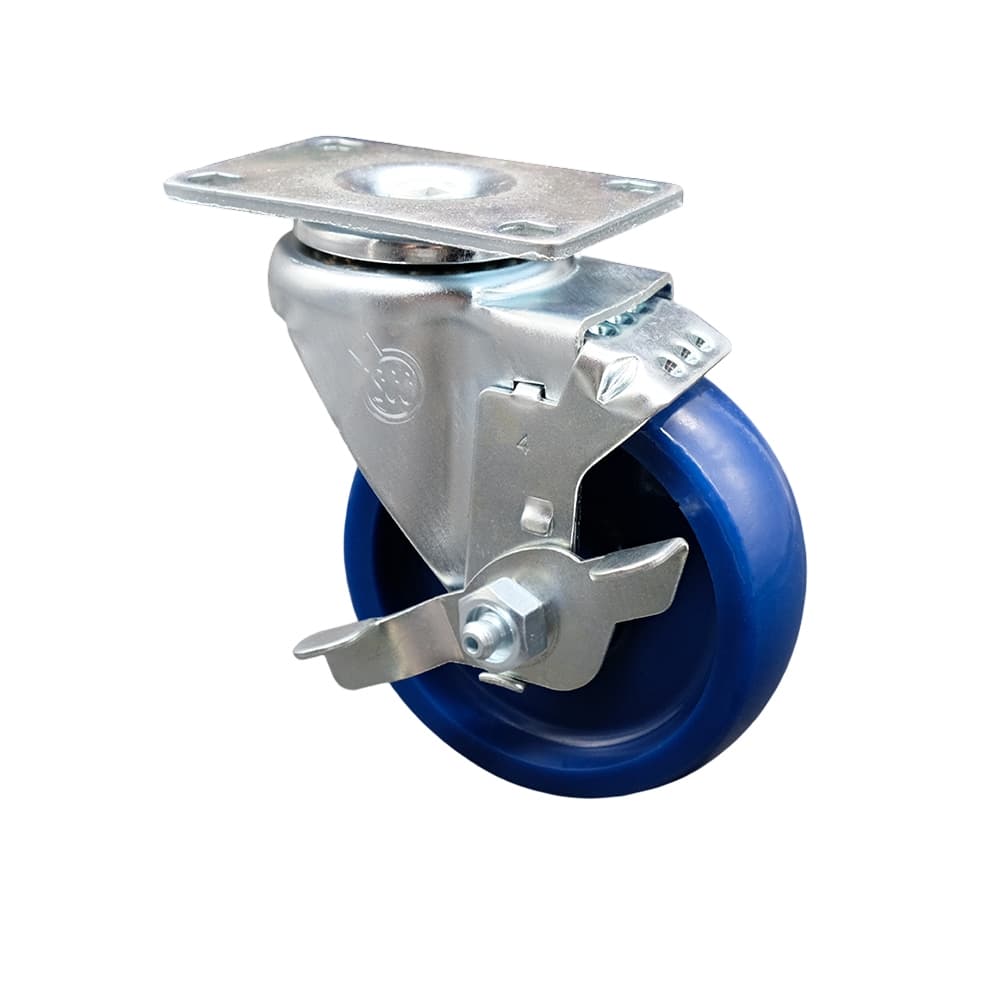

The 2-1/2" x 3-5/8" top plate has a bolt-hole pattern of 1-3/4" x 2-7/8" to 3" and can be bolted or welded on. Brake options are top lock (TLB), which locks the wheel, and total lock (TTL), which locks both the wheel and swivel.
