Service Caster SCC-EX20S514-SRS-TLB-78-4 sku-5490715759

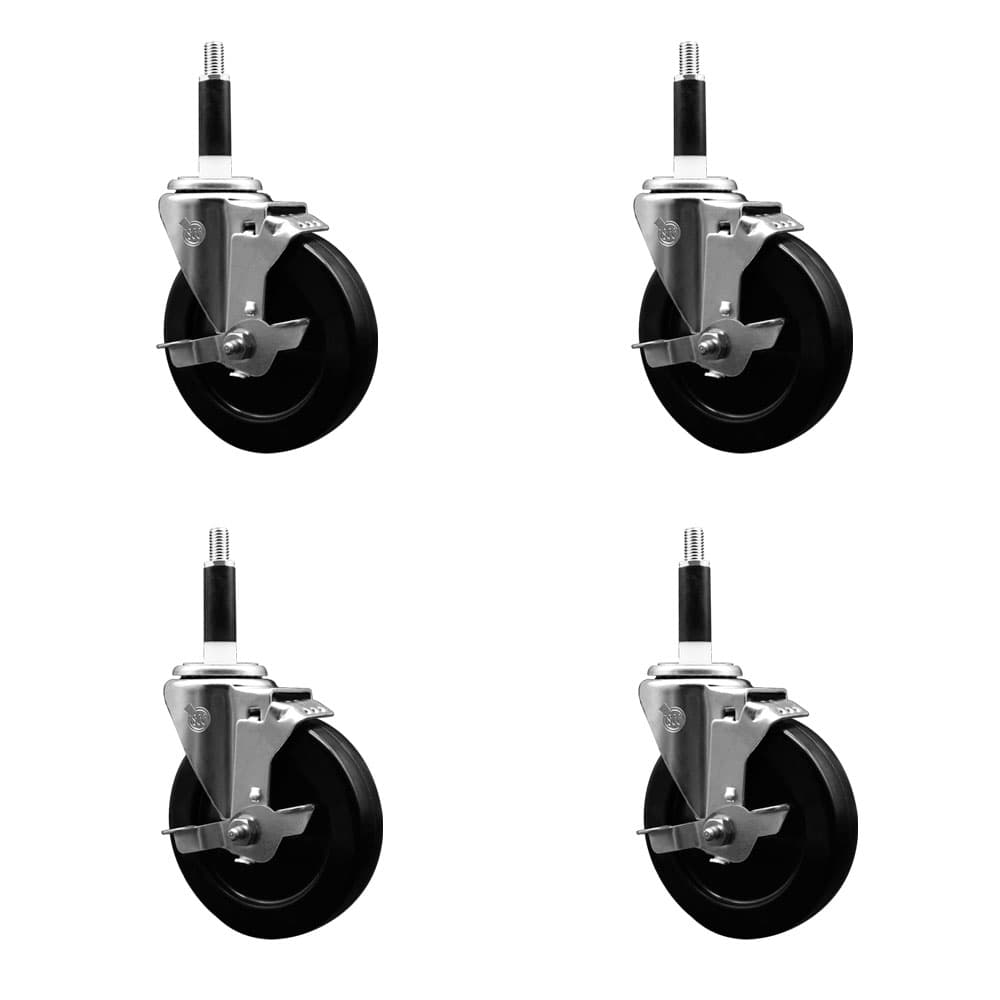

This Service Caster Furniture Hardware item is a soft rubber swivel caster with a brake, listed in color Other with a 5" Wheel. Its model is SCC-EX20S514-SRS-TLB-78-4, SKU sku-5490715759, and UPC 734005200867. The set is described as a 5 Inch caster with a 7/8 Inch expanding stem.

In the Series #20 range, a 3" wheel has a 4-1/8" mounting height; a 3-1/2" wheel has a 4-5/8" mounting height; a 4" wheel has a 5-1/8" mounting height; and a 5" wheel has a 6-1/8" mounting height. Capacity per caster is 175 lbs for 3", 200 lbs for 3.5" and 4", and 275 lbs for 5". Each expanding stem is 2-11/16" long.

The 10 available diameters are 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-5/8", 1-3/4", and 1-7/8". Service Caster recommends measuring the inside diameter of the tubing before ordering to choose a matching stem. Brake options are top lock (TLB), total lock (TTL), and posi lock (PLB).

Top lock and posi lock press against the wheel tread to lock the wheel; total lock secures both the wheel and swivel. Service Caster can be contacted for measuring help or a size that is not listed.
