Service Caster SCC-35S520-PUR-RS-BSL-2-R-2 sku-521957718

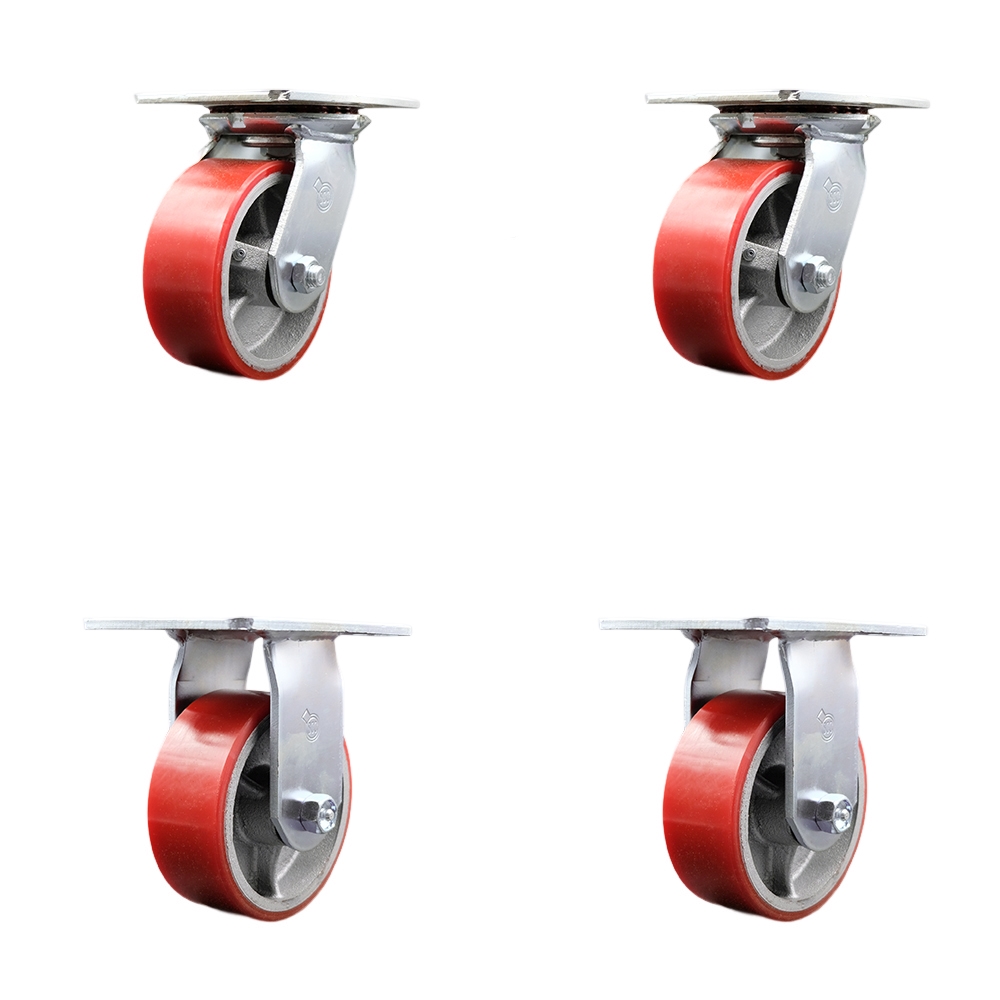

Service Caster Series #35 polyurethane-on-cast-iron Furniture Hardware, model SCC-35S520-PUR-RS-BSL-2-R-2, SKU sku-521957718, UPC 011586585386, is listed in color Other and size 5" Wheel. The 5 Inch caster set has roller bearings, 2 swivel locks and 2 rigid casters.

Across the series, a 4" wheel has a 5-5/8" mounting height and a 700 lbs capacity; a 5" wheel has a 6-1/2" height and a 1000 lbs capacity; a 6" wheel has a 7-1/2" height and a 1200 lbs capacity; and an 8" wheel has a 9-1/2" height and a 1250 lbs capacity. The 4-1/2" x 6-1/4" top plate can be bolted or welded on. Its bolt-hole pattern ranges from 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4".

The side lock brake (SLB) locks against the wheel hub. A bolt-on swivel lock (BSL) fits into one of 4 raceway notches to make the swivel caster rigid for straight-line tracking at any 90 degree angle. Using both brake types prevents movement of the wheel and swivel.
