Service Caster SCC-EX20S514-PHR-PLB-158-4 sku-5356184230

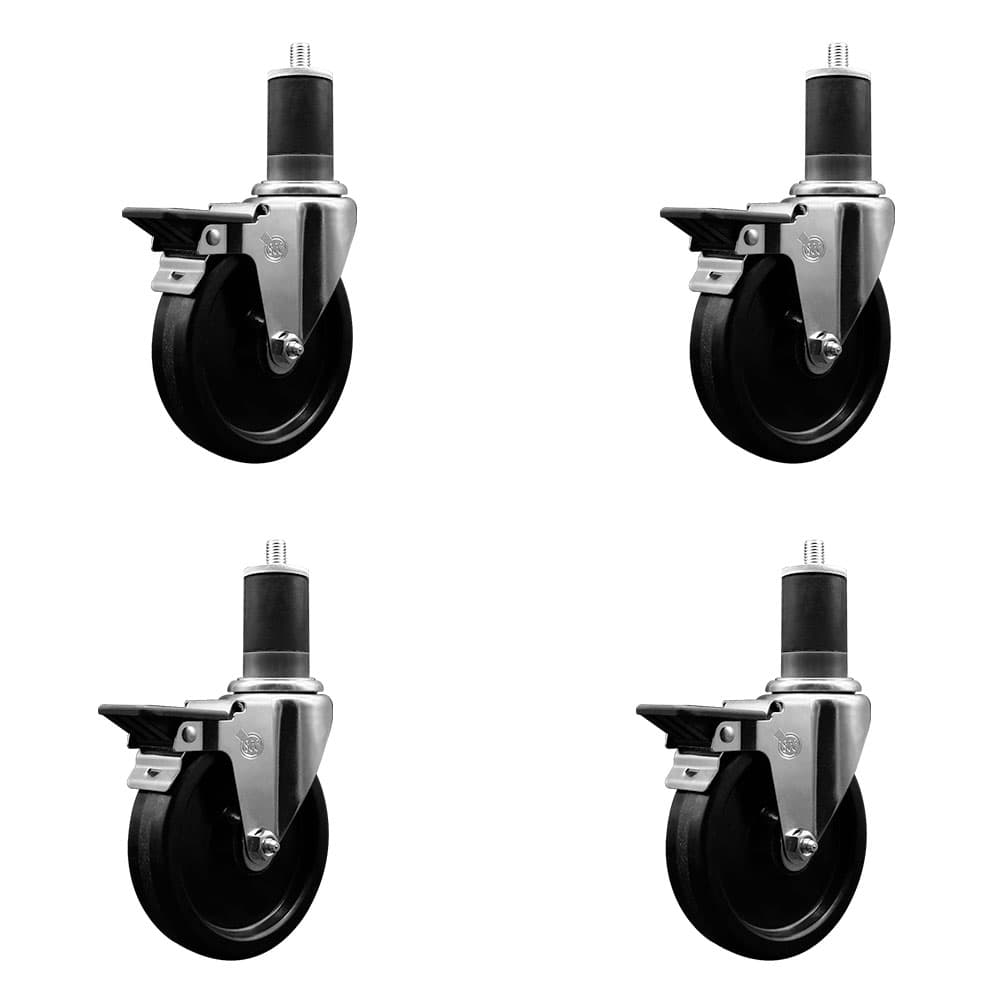

This Service Caster Series #20 phenolic swivel caster set has a 5 Inch wheel, a 1-5/8 Inch expanding stem and a posi lock brake. Model SCC-EX20S514-PHR-PLB-158-4; SKU sku-5356184230; UPC 734005136616. It is listed as Furniture Hardware, color Other, size 5" Wheel.

Across the series, a 3" wheel has a 4-1/8" mounting height; a 3.5" wheel has a 4-5/8" height; a 4" wheel has a 5-1/8" height; a 5" wheel has a 6-1/8" height; and a 6" wheel has a 7-1/8" height. Each listed wheel size has a 300 lbs capacity per caster. The expanding stem is 2-11/16" long and comes in 10 diameters: 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-5/8", 1-3/4" and 1-7/8".

Measure the inside diameter of the tubing to choose a stem; Service Caster recommends contacting it for measuring help or an unlisted size. Available brake types are top lock (TLB), total lock (TTL) and posi lock (PLB). TLB and PLB lock the wheel tread; TTL locks both the wheel and swivel.
