Service Caster SCC-EXTTL20S514-PHS-112-4 sku-5356394979

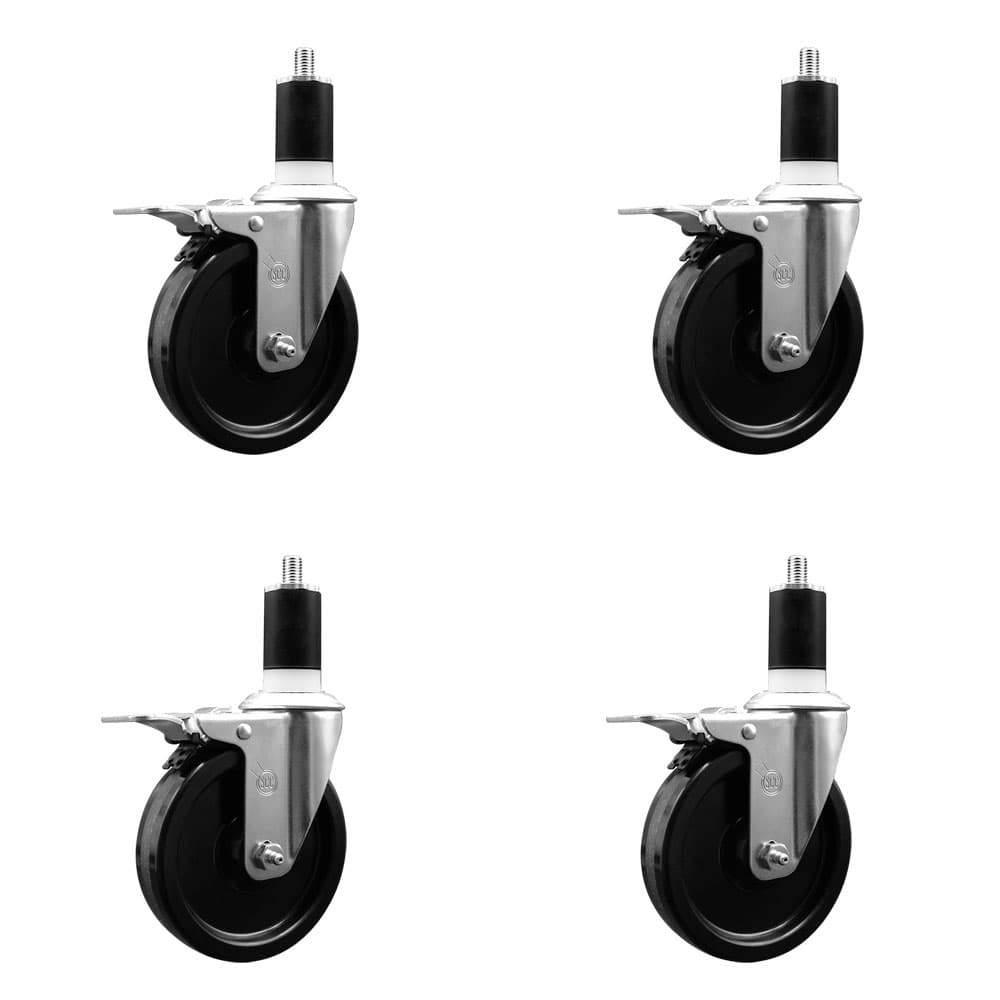

Service Caster SCC-EXTTL20S514-PHS-112-4 is a Furniture Hardware listing in color Other and size 5" Wheel. This 5 Inch phenolic swivel caster set has a 1-1/2 Inch expanding stem and a total lock brake. Series #20 phenolic casters are described with these wheel sizes and mounting heights: a 3" wheel has a 4-1/8" mounting height; a 3-1/2" wheel has a 4-5/8" mounting height; a 4" wheel has a 5-1/8" mounting height; a 5" wheel has a 6-1/8" mounting height; and a 6" wheel has a 7-1/8" mounting height.

The listed 3", 3.5", 4", 5" and 6" wheels each have a 300 lbs capacity per caster. The expanding stem is 2-11/16" long and comes in 10 diameters: 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-5/8", 1-3/4" and 1-7/8".

Service Caster recommends measuring the inside diameter of the tubing before ordering to choose the corresponding stem diameter; customers can call or send a message for measuring help or an unlisted size. Brake options include top lock (TLB), total lock (TTL) and posi lock (PLB). Top lock and posi lock apply locking force to the wheel tread and lock the wheel only.

Total lock applies force to the wheel tread and locks both the wheel and swivel for a stationary position. SKU sku-5356394979; UPC 734005139235.
