Service Caster SCC-35S520-PUB-GB-2-SLB-2 sku-686313816

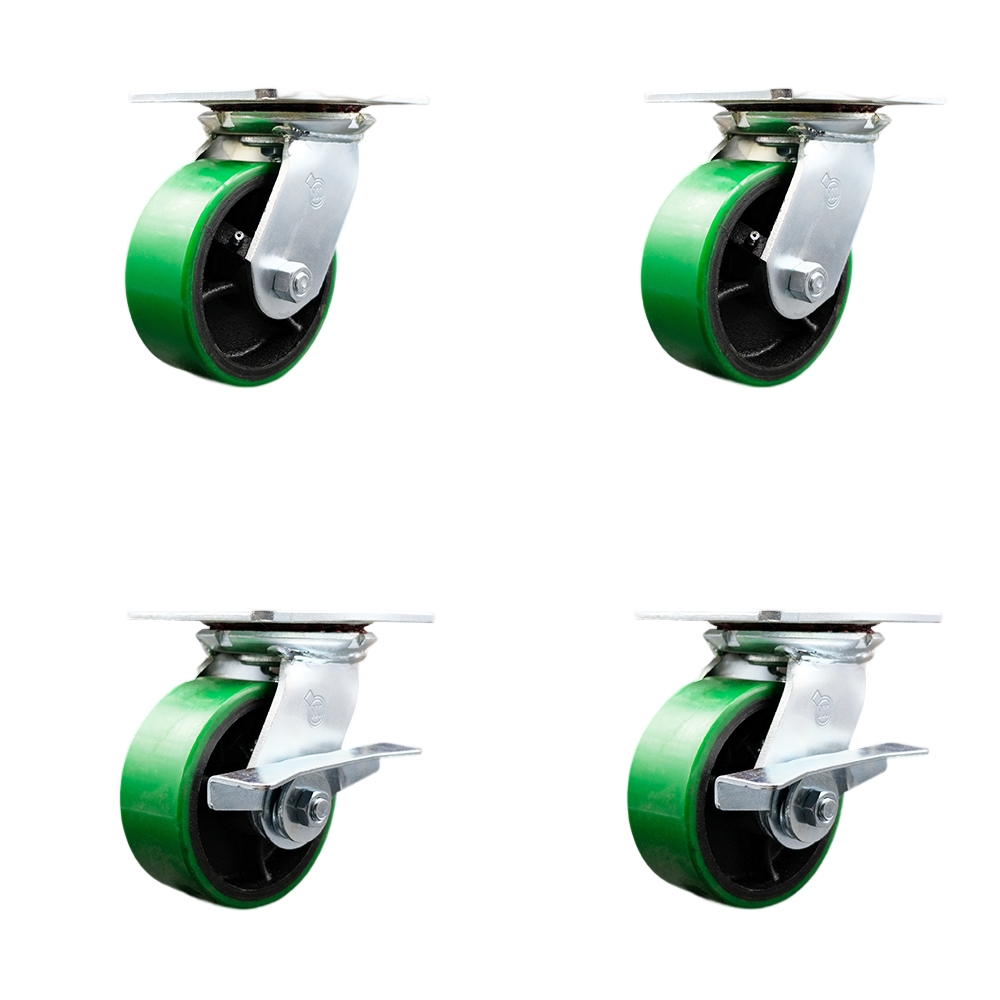

No rating yet(0 ratings)Service Caster Series #35 polyurethane-on-cast-iron casters come in several sizes. The 4" wheel has a 5-5/8" mounting height and a 700 lbs capacity; the 5" wheel has a 6-1/2" height and a 1000 lbs capacity; the 6" wheel has a 7-1/2" height and a 1200 lbs capacity; and the 8" wheel has a 9-1/2" height and a 1250 lbs capacity.
The 4-1/2" x 6-1/4" top plate has a bolt-hole pattern ranging from 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can be bolted or welded on. The side lock brake applies locking force against the wheel hub. The bolt-on swivel lock fits into one of 4 notches in the swivel raceway, converting the caster to rigid for straight-line tracking at any 90 degree angle.
Using both locks prevents wheel and swivel movement. This 5 Inch green, ball-bearing swivel caster set has 2 brakes. Service Caster model SCC-35S520-PUB-GB-2-SLB-2 is listed as Furniture Hardware in color Other, size 5" Wheel. SKU: sku-686313816. UPC: 011586594890.
