Service Caster SCC-SS316TTL30S520-POR-2-S-2 sku-13908410056

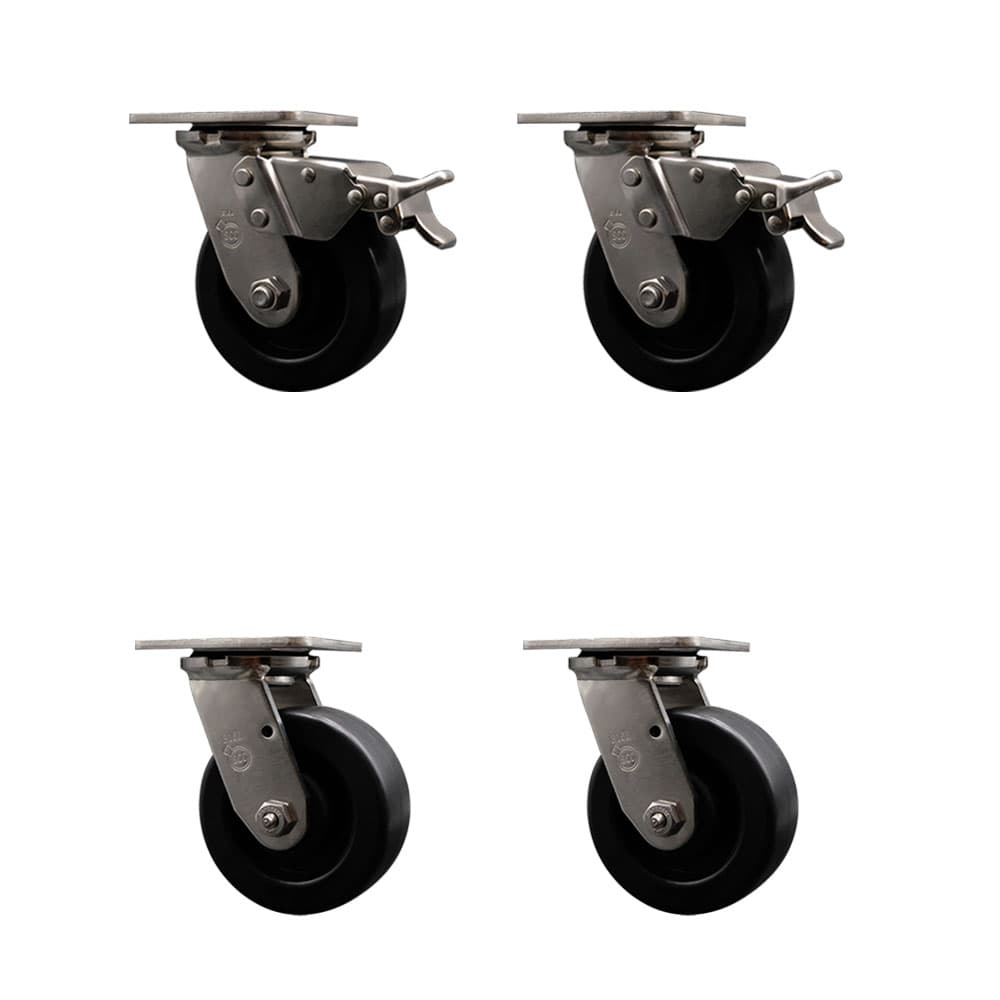

No rating yet(0 ratings)The 5 Inch Service Caster SCC-SS316TTL30S520-POR-2-S-2 is a Series #30 316SS polyolefin swivel caster set with roller bearings and 2 brakes. It is listed as Furniture Hardware, color Other, size 5" Wheel, sku-13908410056, UPC 734005508079.
The 4" wheel has a 5-5/8" mounting height and a 500 lbs capacity per caster; the 5" wheel has a 6-1/2" mounting height and a 650 lbs capacity; the 6" wheel has a 7-1/2" mounting height and a 700 lbs capacity; and the 8" wheel has a 9-1/2" mounting height and a 900 lbs capacity. The top plate measures 4" x 4-1/2", with a bolt-hole pattern from 2-5/8" x 3-5/8" to 3" x 3".
It can be bolted or welded on. Brake options are a top lock brake (TLB), which locks the wheel by applying force to the tread; a total lock brake (TTL), which locks the wheel and swivel; and a bolt-on swivel lock (BSL), which fits into one of four raceway notches to allow straight-line movement at 90-degree angles.
