Service Caster SCC-SS31630S520-GFNR-TLB-4 sku-13869350361

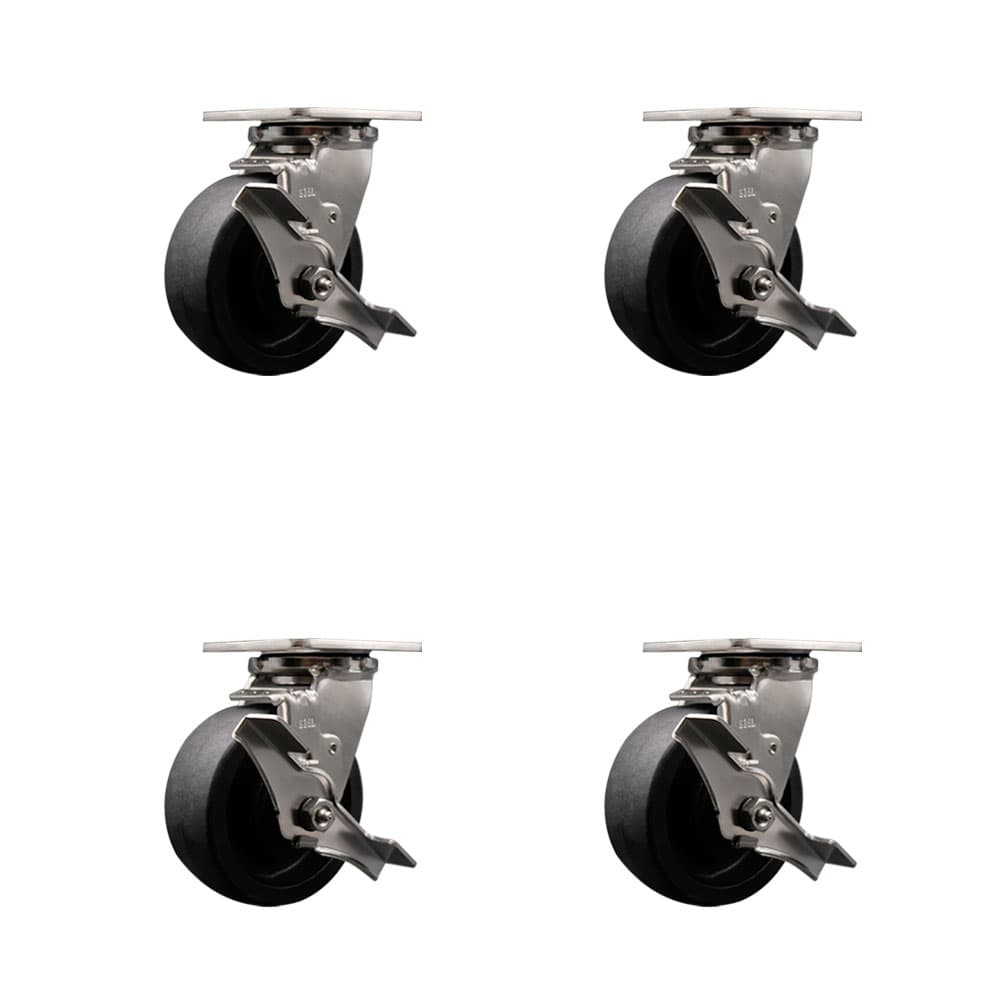

Service Caster Furniture Hardware, model SCC-SS31630S520-GFNR-TLB-4, SKU sku-13869350361, UPC 734005500035. This Black 5" Wheel swivel caster set has glass-filled nylon wheels, roller bearings and brakes. It is listed as a 5 Inch 316SS set in the Series #30 range. The 4" wheel has a 5-5/8" mounting height and a 1200 lbs capacity per caster.

The 5" wheel has a 6-1/2" mounting height; the 6" wheel has a 7-1/2" mounting height; and the 8" wheel has a 9-1/2" mounting height. The 5", 6" and 8" wheels each have a 1250 lbs capacity per caster. The top plate measures 4" x 4-1/2", with a bolt-hole pattern ranging from 2-5/8" x 3-5/8" to 3" x 3". It can be bolted or welded on.

Brake options are a top lock brake (TLB), which locks the wheel by pressing on its tread; a total lock brake (TTL), which locks both wheel and swivel; and a bolt-on swivel lock (BSL). Inserting the BSL into 1 of the 4 notches on the swivel raceway converts the caster to a rigid caster for straight-line movement at 90-degree angles.
