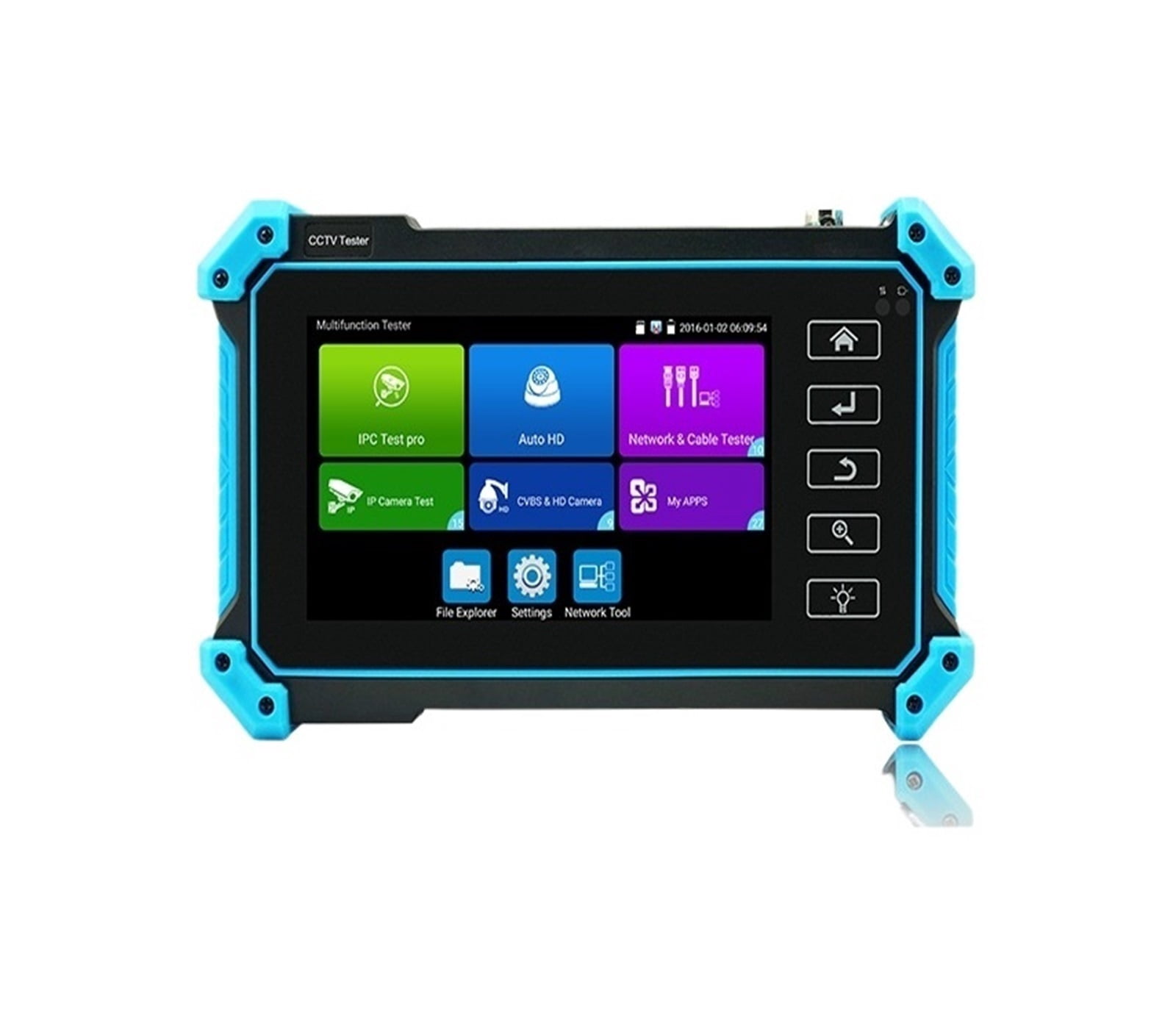

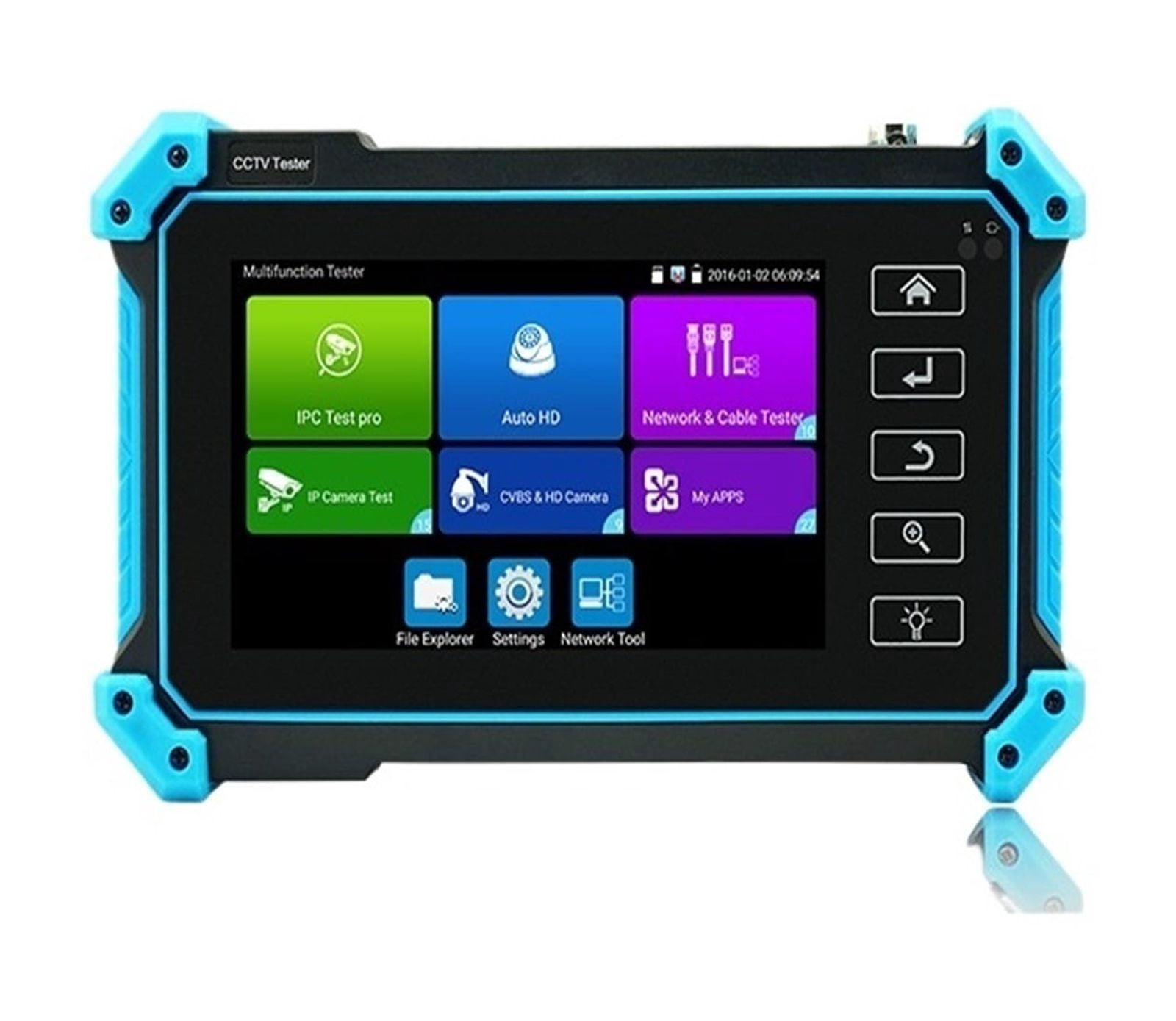

Eugene Color Surveillance Equipment, Other, Size A

This Eugene Color Surveillance Equipment tester is listed in color Other and size A. It tests 8MP AHD cameras at 3840 x 2160P and 15 FPS, and 8MP CVI cameras at the same resolution and 12.5/15FPS. Both modes support 4x zoom, recording and playback, coaxial PTZ calls and OSD menus.

The Auto HD app detects HD coax camera type and resolution, supports snapshots, and provides recording, playback, coaxial PTZ calls and OSD menus. Built-in UTP and telephone cable testing checks pair order and connectivity, can save reports, and locates faults near the cable ends or in the middle; special numbers require customization.

RJ45 TDR testing reports pair status, length, attenuation, reflectivity, impedance and skew, and can generate reports. Network tools include Ping, IP scan, Port Flash, DHCP server and Trace Route. A media player handles 4K files and MKV/MP4 playback, and the tester displays the actual resolution of IP camera images.

The listing also identifies it as a CCTV IPC tester for TVI and 12MP IP cameras, with VGA PTZ, PoE, a UTP cable tracer and a battery.
