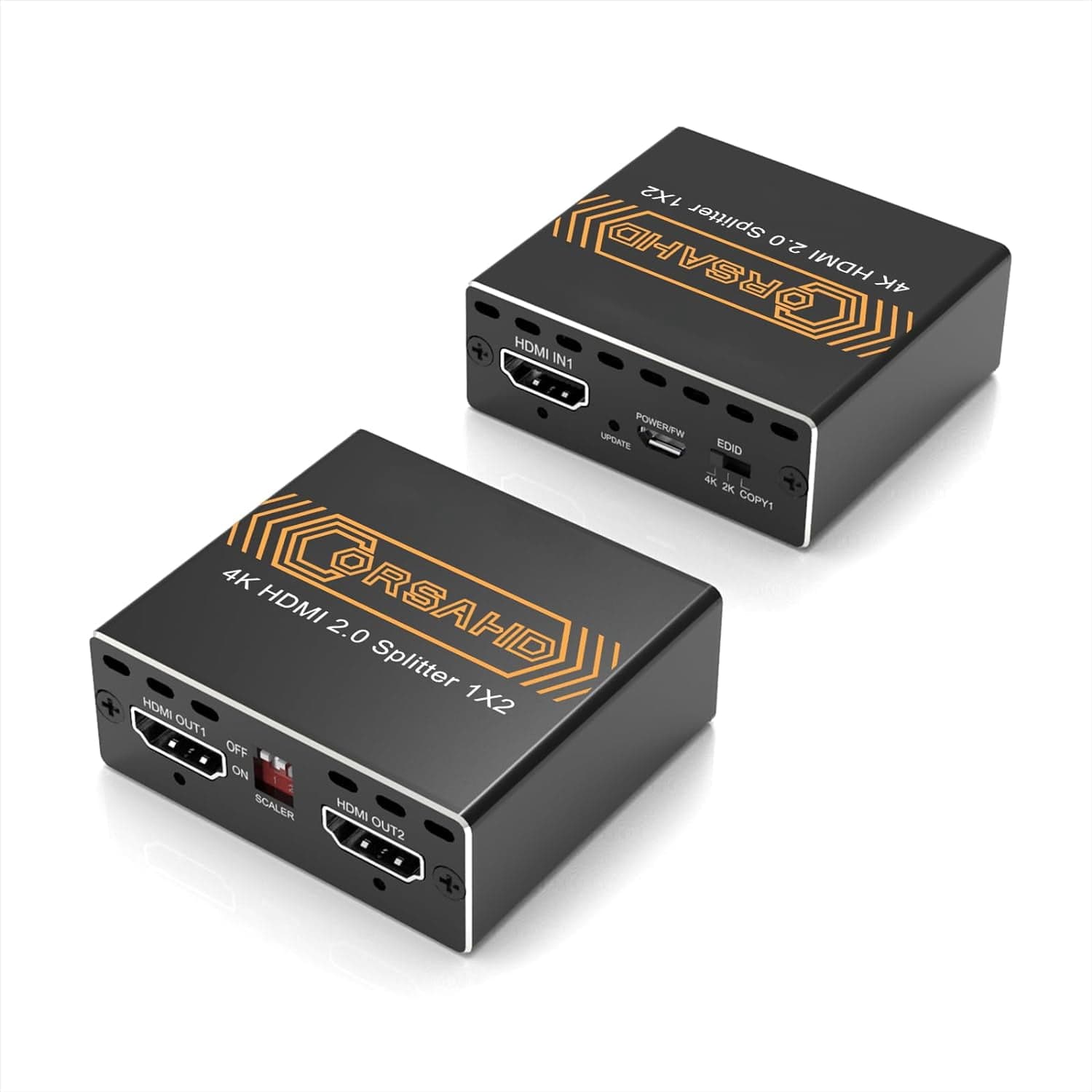

4K@60Hz HDMI Splitter 1x2 4:4:4 18 Gbps — Duplicate/Mirror/Copy, Downscale, HDR, HDCP Bypass, EDID, Dolby Vision & Atmos, Soundbar Support

Overview: This 1-in 2-out HDMI splitter delivers clean 4K video and multi-channel audio distribution for dual displays and audio systems. It supports 4K@60Hz output with 4:4:4 chroma and 18 Gbps bandwidth while preserving HDR and advanced audio formats for home theater and gaming setups. Video formats supported: 4K@60Hz; 3840x2160@60Hz; 1440p@60Hz; 1080p@120Hz/60Hz 3D; HDR; Dolby Vision; IMAX DIGITAL(2K/4K); 4:4:4 8bit. HDCP compatibility includes HDCP2.2 with HDCP2.3 bypass available. Audio formats supported: Dolby Atmos; Digital 7.1CH; Dolby True HD; DTS-HD Master Audio. Soundbar support is included so high-resolution audio can be passed to external receivers. Common usage examples (EDID and scaler guidance): - 4K + 1080P displays in sync: Set EDID to COPY. Connect the 4K TV to Splitter OUT1 and the 1080P TV to OUT2. Then set the OUT2 scaler to 1080P. - 4K HDR video with soundbar: Configure the HDMI source to output 4K HDR/HDR10/Dolby Vision and set audio to bitstream (Dolby Atmos). Set the splitter EDID to 4K, connect the 4K TV to OUT1 and the soundbar to OUT2. - Two 1080P TVs in sync: Set EDID to 2K mode. Compatibility: Works with UHD TVs and HDMI 2.0 devices supporting HDCP2.2/HDCP2.3. Compatible with gaming consoles (Xbox, PS4, PS5, Nintendo Switch) and streaming devices (Apple TV, Fire Stick, Roku). Plug-and-play — no drivers required. Notes: To receive both Dolby Atmos audio and Dolby Vision video simultaneously, ensure both the TV and receiver/soundbar support those formats. This splitter also supports syncing 4K 60Hz HDR video to a TV while delivering 7.1ch audio to a soundbar.
