450W Six-Port CNC Shell Fast Desktop Charger A — Six-Way Quick-Charge Indicator, Mechanical Style

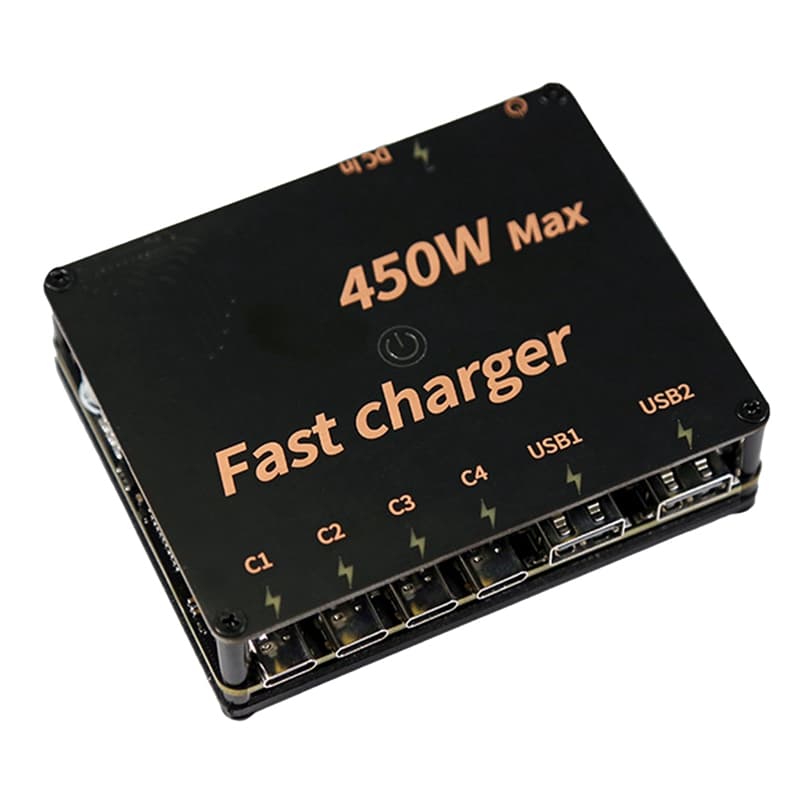

Power input: the unit accepts DC via a 5.5 x 2.5mm circular socket. When buying a power adapter, be sure to choose a matching plug for normal operation. Port layout and input behavior: there are four Type-C ports and two USB ports (six total). Two of the four Type-C ports are capable of voltage up/down operation — with a 12V input those two left-hand C ports can provide up to 20v5a.

Aside from those two ports, the other four outputs require a 24V supply to reach their maximum rated power. Output specifications: C1–C2 maximum output 100w (20v5a); C3, C4, USB1 and USB2 each have a maximum output of 65w. For full 450W performance it is recommended to use a 24V power supply.

Internal power design: the dual-circuit voltage conversion uses the LM5175+sw2303 scheme, with each of those circuits employing four TPH3R704 MOSFETs for lower heat. The remaining four circuits use an sw3526 voltage-reduction design. Product summary: this new tabletop fast charger provides six simultaneous outputs and a total power budget of 450W, suitable for most charging needs.

Type-C connectivity also allows linking another charger — for example, you can expand a single-port or dual-port PD100W charger into a multi-port solution.
