Kemblawolf tl123 Black DC Motor Kit | sku-15670200730

Kemblawolf tl123 (sku-15670200730, UPC 722302929208) is a Black brushless motor kit listed under Dirt Bike Parts & Accessories. The motor model is MY1020D. It takes 60V DC input, produces 2500W, and has a rated current of ≤ 43A, rated speed of 4500 RPM and maximum speed of 6500 RPM. Its T8F-11 sprocket has 11 teeth.

Other specifications are 4.07 HP, rated torque of 849.67 oz.in / 6 N.m, maximum current of 65A, no-load current of ≤ 4.0A, peak efficiency of ≥ 85%, and working temperature below 120 °C / 248 ℉. The motor has a 100% copper core for low-noise operation and speed regulation, a precision rotor finished for water resistance, and an aluminum alloy shell that resists heat, cold, corrosion and rust.

It supports forward and reverse rotation. The source describes the brushless design as more efficient, quieter and longer-lived than a brushed motor. Listed uses include electric scooters, motorcycles, e-bikes, bicycles, e-tricycles, mid-drive and DIY engine kits, go-karts, ATVs, mopeds, mini and pocket bikes.

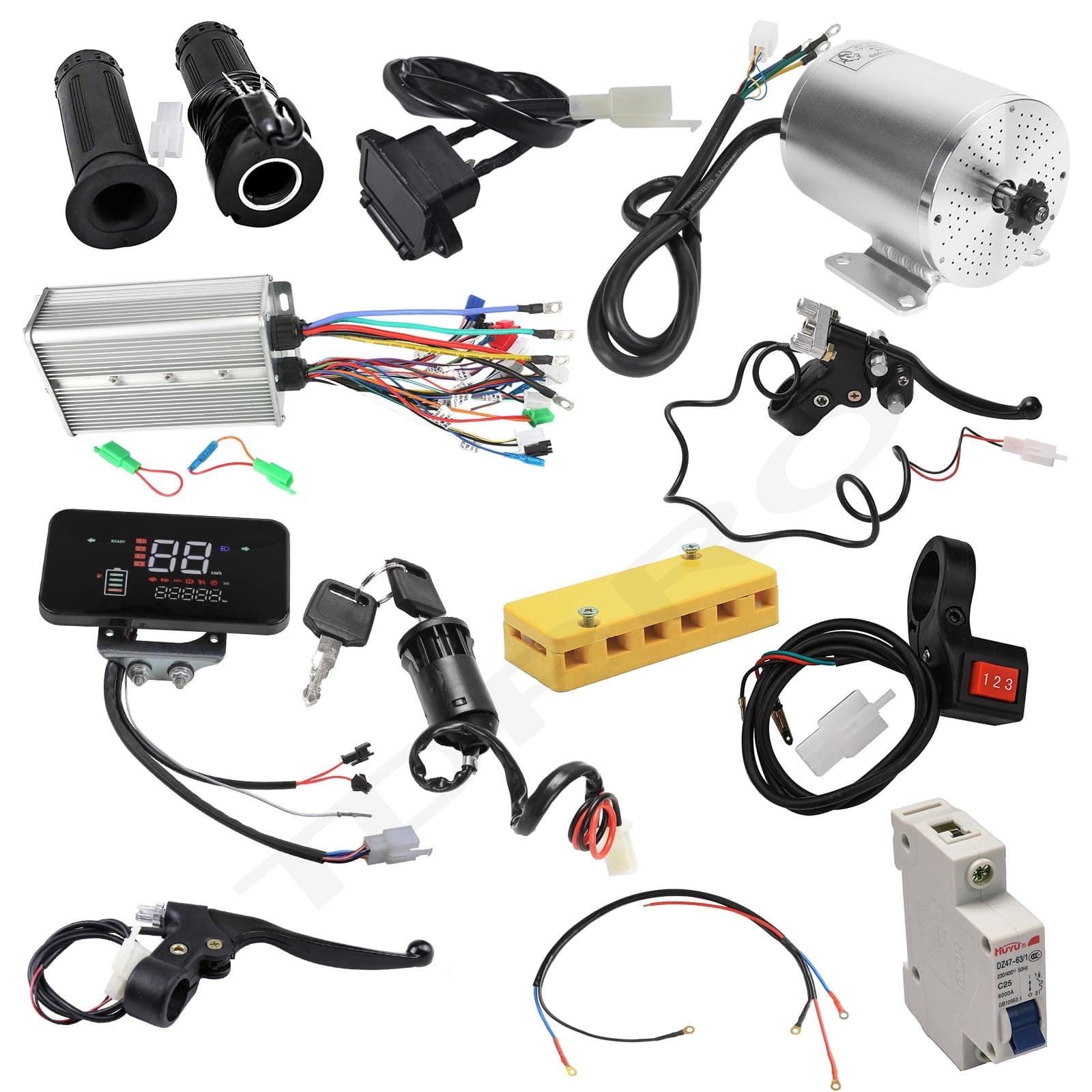

The package contains a motor, 60A speed controller, LCD display, key on/off switch, throttle grips, left and right brake levers, charging port, air switch and terminal board.
