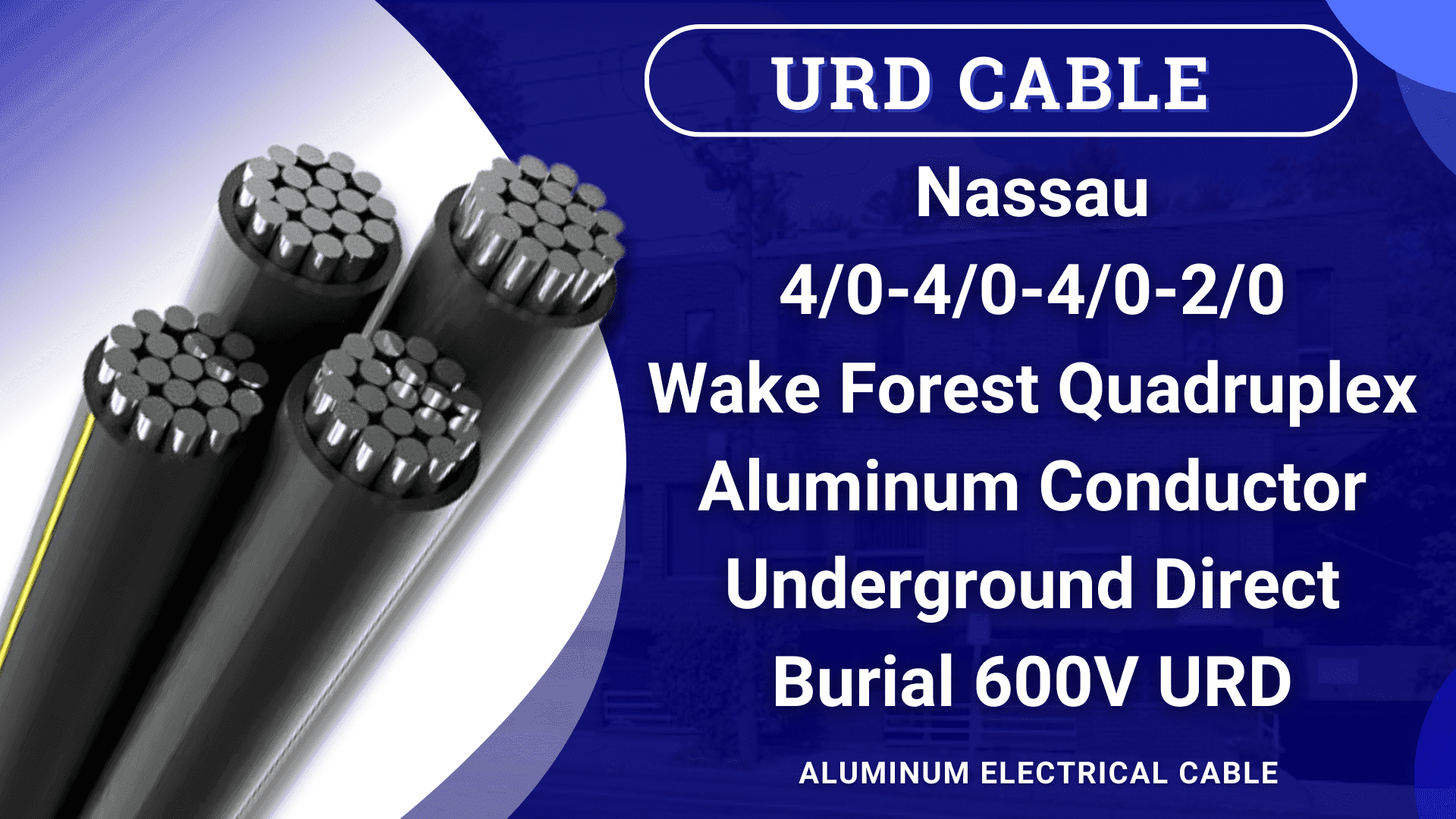

400' Wake Forest Aluminum URD XLP USE Cable — 4/0-4/0-4/0 with 2/0 Neutral

400-foot Wake Forest aluminum underground residential distribution (URD) cable with XLP insulation designed for USE applications. Conductor configuration: three 4/0 AWG phase conductors with a 2/0 AWG neutral. Conductor construction: 4/0 AWG, 19-strand. Insulation thickness: 80 mils. Single-phase conductor diameter: 0.658 inches. Overall cable O.D.: 1.588 inches. Weight: 1036 lbs per 1000 ft. Ampacity ratings: 290 Amps for direct burial and 225 Amps when installed in duct.
