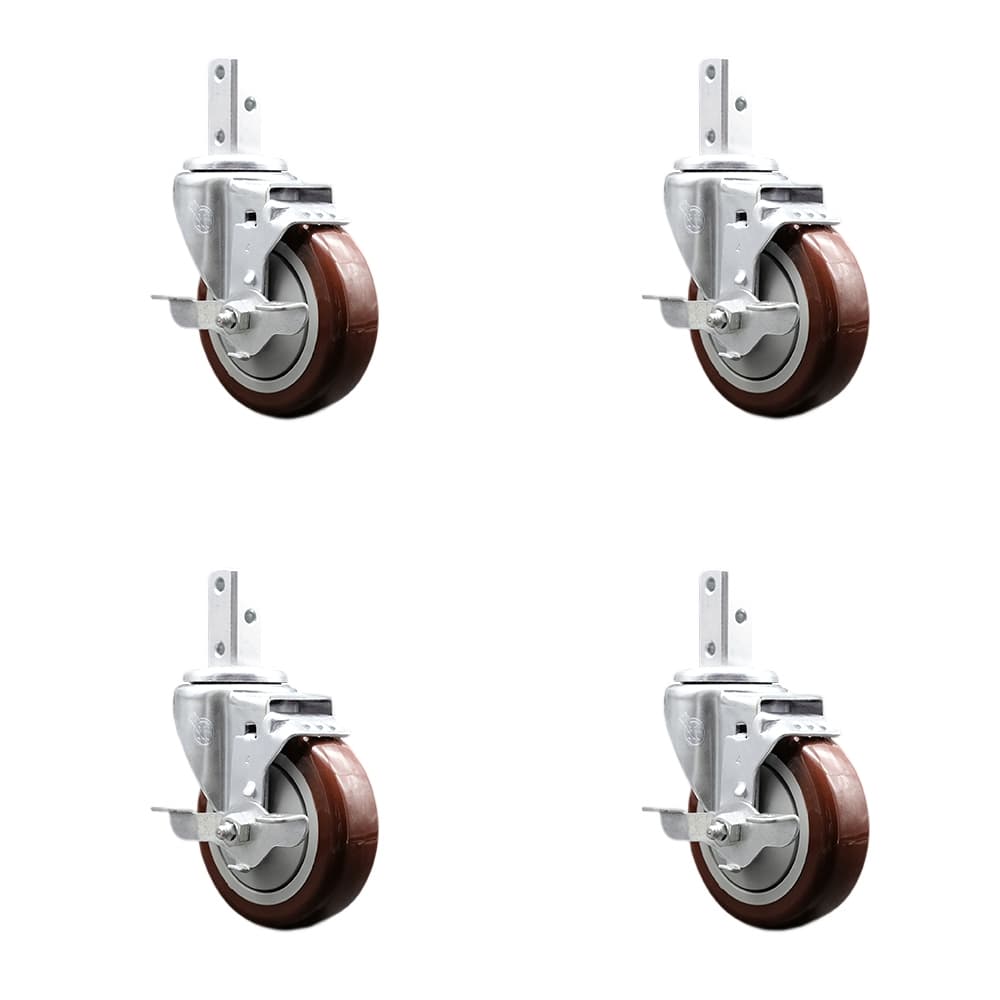

Service Caster SCC-SQ20S414-PPUB-MRN-TLB-78-4 sku-181300370

Service Caster Series #20 polyurethane swivel casters are Furniture Hardware. This Red listing, model SCC-SQ20S414-PPUB-MRN-TLB-78-4, is size 4" Wheel - 7/8" Stem; SKU sku-181300370 and UPC 011586604155. Wheel colors offered are Gray, Blue, Black, Maroon and Red.

The 3" wheel has a 4-1/8" mounting height; the 3-1/2" or 3.5" wheel has a 4-5/8" height; the 4" wheel has a 5-1/8" height; the 5" wheel has a 6-1/8" height; and the 6" wheel has a 7-1/8" height. Capacity per caster is 300 lbs for 3" and 3.5" wheels, and 350 lbs for 4", 5" and 6" wheels. Each caster has a 7/8" x 2" square stem with 3 mounting holes of 17/64" diameter.

The top lock brake (TLB), offered on 3", 3-1/2", 4" and 5" wheels, locks the wheel by pressing against its tread. The total lock brake (TTL), offered on all wheel sizes, locks both the wheel and swivel. For other sizes, contact Service Caster Corporation through the seller link beneath the buy or add-to-cart button and select the ask-a-question option.

The source title describes a 4 Inch Maroon wheel with a 7/8 Inch square stem and brake.
