Service Caster SCC-EX20S414-PPUB-MRN-TLB-1-4 sku-5364481483

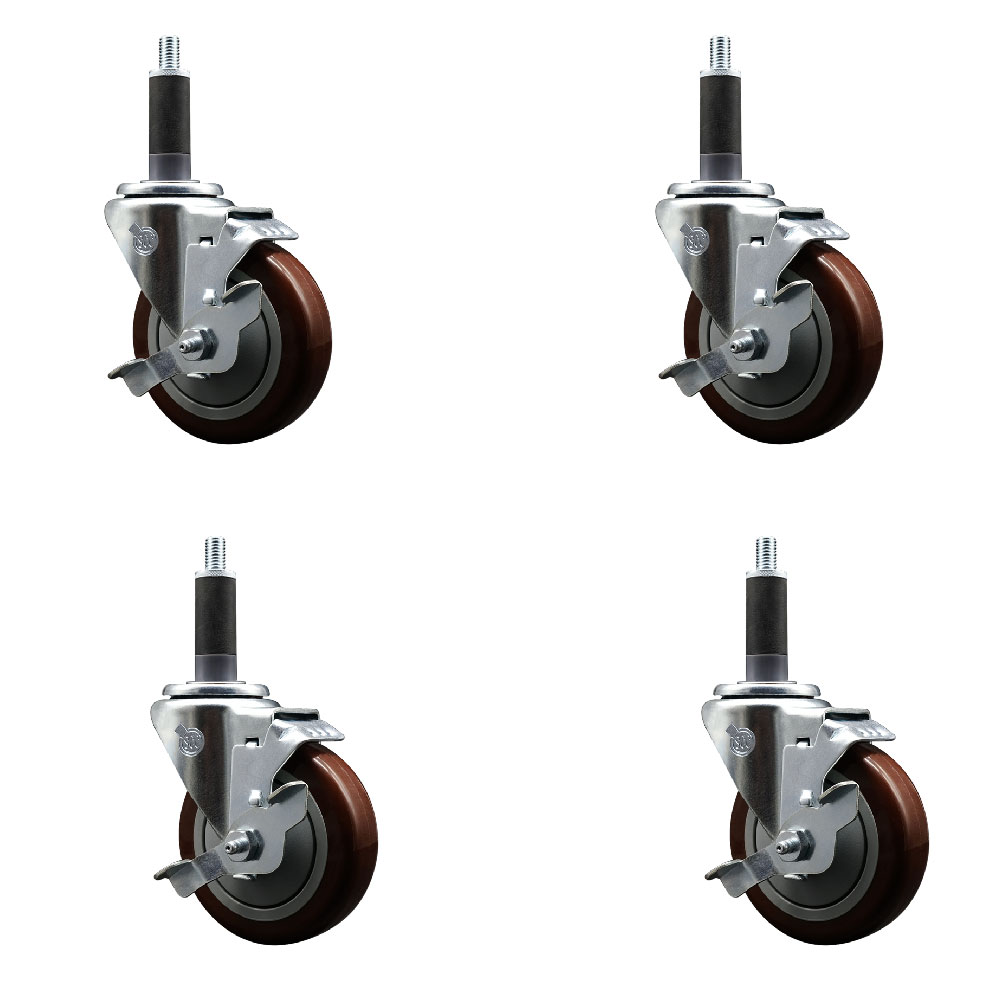

Service Caster model SCC-EX20S414-PPUB-MRN-TLB-1-4 is a maroon polyurethane swivel caster set with a top lock brake, a 4 Inch wheel (4" Wheel) and a 1 Inch expanding stem. It is listed as Furniture Hardware in the color Other. SKU: sku-5364481483. UPC: 734005176438.

In Series 20, the 3-inch wheel has a 4-1/8-inch mounting height; the 3.5-inch wheel has a 4-5/8-inch height; the 4-inch wheel has a 5-1/8-inch height; the 5-inch wheel has a 6-1/8-inch height; and the 6-inch wheel has a 7-1/8-inch height. Available wheel colors are gray, blue, black, maroon and red.

The 3- and 3.5-inch wheels support 300 lbs per caster; the 4- and 5-inch wheels support 350 lbs per caster. The expanding stem is 2-11/16 inches long and comes in 10 diameters, from 3/4 inch through 1-7/8 inches. Measure the inside diameter of the tubing to select a stem. Brake options include top lock, posi lock and total lock.

Top lock and posi lock secure the wheel; total lock secures both the wheel and swivel.
