Service Caster SCC-SS316TTL30S420-POR-2-S-2 sku-13853451972

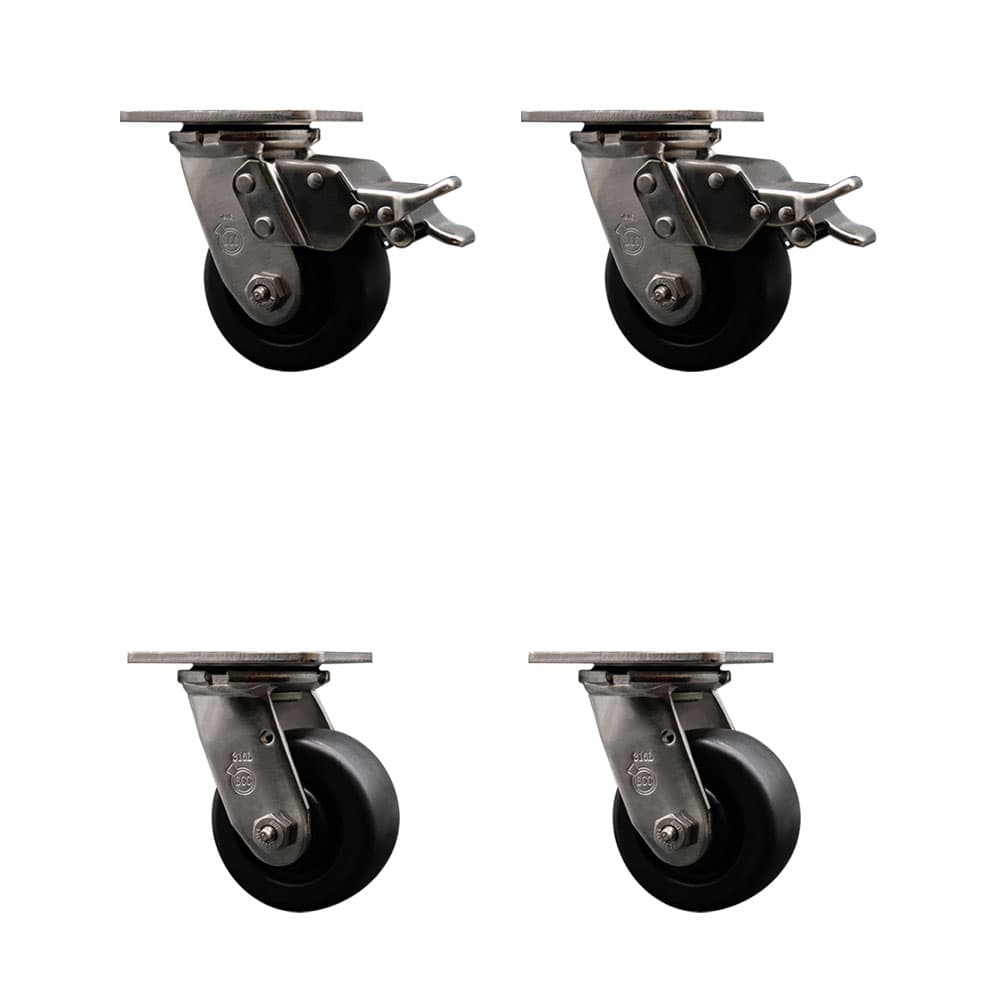

No rating yet(0 ratings)Service Caster model SCC-SS316TTL30S420-POR-2-S-2, SKU sku-13853451972, UPC 734005507850, is listed as Furniture Hardware in color Other and size 4" Wheel. The title describes a 4 Inch 316SS polyolefin swivel caster set with roller bearings and 2 brakes.
Series #30 polyolefin caster options include a 4" wheel with 5-5/8" mounting height and 500 lbs capacity per caster; a 5" wheel with 6-1/2" mounting height and 650 lbs capacity; a 6" wheel with 7-1/2" mounting height and 700 lbs capacity; and an 8" wheel with 9-1/2" mounting height and 900 lbs capacity.
The top plate measures 4" x 4-1/2", with a bolt-hole pattern ranging from 2-5/8" x 3-5/8" to 3" x 3"; it can be bolted or welded on. Brake options are top lock brake (TLB), total lock brake (TTL) and bolt-on swivel lock (BSL). The TLB locks the wheel by pressing on its tread. The TTL locks both wheel and swivel.
Inserted into 1 of 4 swivel-raceway notches, the BSL holds the caster for straight-line movement at 90-degree angles.
