Service Caster SCC-SS316TTL30S420-POB-2-R-2 sku-13885063971

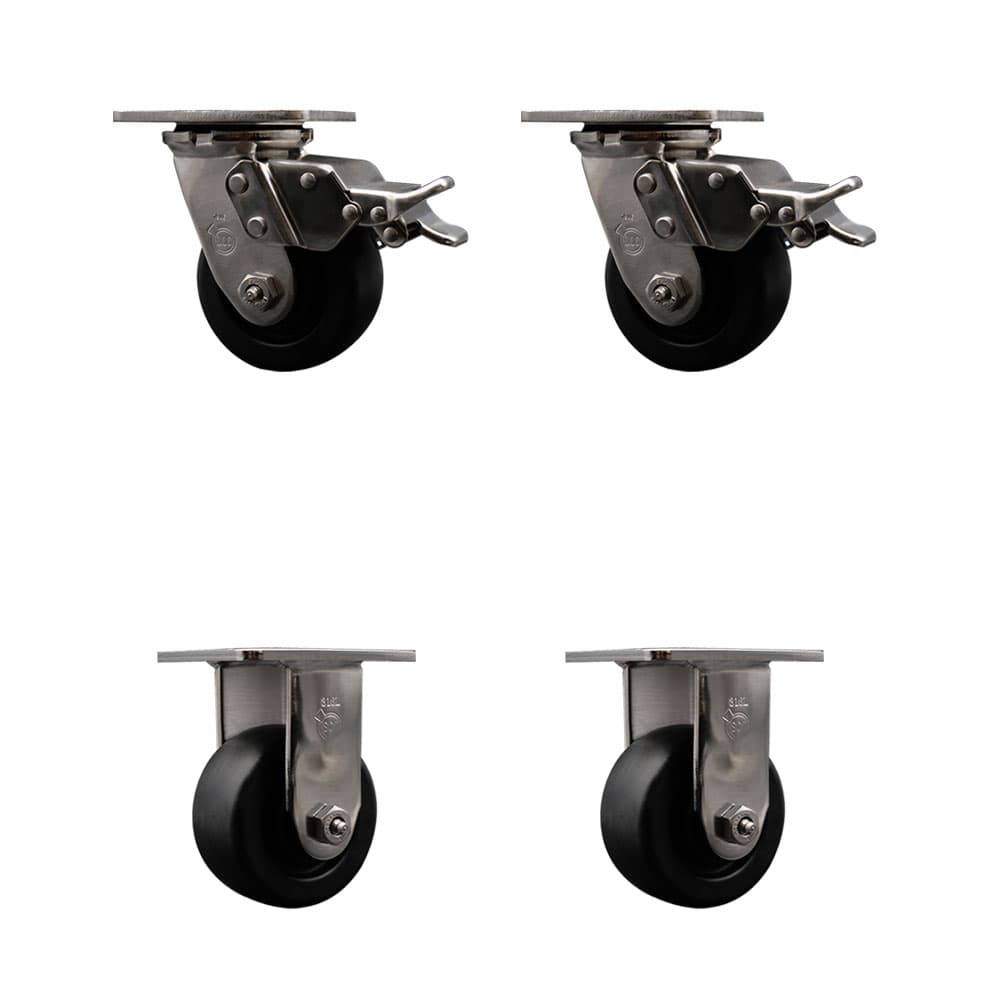

No rating yet(0 ratings)Service Caster SCC-SS316TTL30S420-POB-2-R-2, SKU sku-13885063971 and UPC 734005506082, is a Furniture Hardware caster set listed in color Other and size 4" Wheel. The title specifies a 4 Inch 316SS polyolefin set with ball bearings, 2 brakes and 2 rigid casters.
The Series #30 polyolefin caster specifications list these wheel sizes and mounting heights: 4" wheel at 5-5/8", 5" at 6-1/2", 6" at 7-1/2", and 8" at 9-1/2". Listed capacity per caster is 500 lbs for 4", 650 lbs for 5", 700 lbs for 6" and 900 lbs for 8". The top plate measures 4" x 4-1/2"; its bolt-hole patterns range from 2-5/8" x 3-5/8" to 3" x 3". It can be bolted or welded on.
Available brake options are a top lock brake (TLB), which locks the wheel at the tread; a total lock brake (TTL), which locks the wheel and swivel; and a bolt-on swivel lock (BSL). Inserting the BSL into one of four swivel-raceway notches makes the caster rigid for straight-line movement at 90-degree angles.
