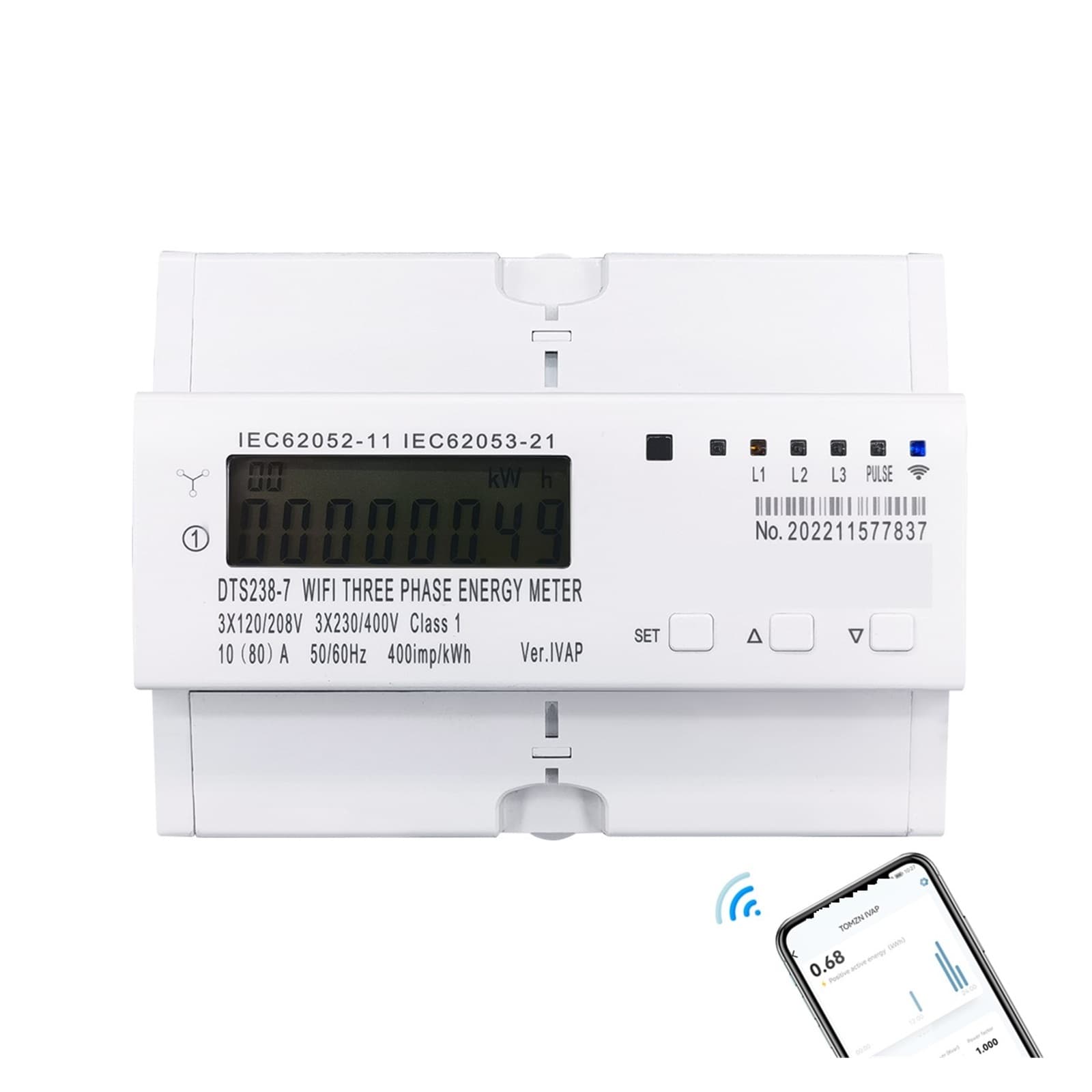

3 Phase 80A Tuya Smart Bidirectional Energy Meter Timer Power Consumption Monitor KWh Meter Wattmeter -------- ,Long Lasting

Description: Please noted, this TUYA energy meter will update the Kwh data when disconnect with , other type Metering circuit breaker will not increase the Kwh when discounnect with . Display each phase voltage, current 1. Remote Control ON/OFF by Tuya APP or APP at anytime from anywhere 2. Total active energy kWh measure 3. APP can read kWh , R.M.S current , voltage , active power 4.

Timer control function 5. Delay time cut off function 6. LCD display, Real-time display of Voltage, Current, Active Power, reactive Power, power factory ,frequence, total Energy kWh 7. Power Supply: 3*120V, 3*230V AC, 50/60Hz 8. Rated Current: 80A10.

Pulse Frequency: 400imp/kWh 11. 35mmDin Rail install 12. can use same TUYA APP , compatible with other TUYA product such socket , led ,fans and so on 13. Active energy accurate is class 1 , IEC62053-21 Push the button last more than 10s , the led will flash quickly , then use APP to operation Note:This meter Only supports 2.4GWireless Network, NOT for 5G NEW function: 1.

Positive and negative phase power + historical power 2. Power email export function 3. PV difference power display 4. Electricity bill display 5. Carbon emissions 6. Note that there is no temperature display, leakage protection, unbalance protection function, external power failure, the meter will not be switched off for protection 7. Manual button switch control 8.

The function of comparing the power with the power of the total meter 9. Power curve display every 15 minutes for 24 hours of the day 1 0. Overvoltage and overcurrent protection 11. Operation records and failsafe records 12. Password protected 13. Three phase voltage unbalance protection 14.

Three phase current unbalance protection Related Products:smart breaker,smart circuit breaker,wifi metering circuit breaker,energy monitor,power monitor,power consumption monitor,electric meter,smart meter
