Unbranded CAT 1 Tractor Attachments sku-17847912798

This Unbranded 3 Pack TK95029 CAT 1 quick-hitch adapter bushing kit is listed under Tractor Attachments. It replaces TK95029 and S14114400 and contains 6 shoulder bushings, 6 top-link bushings, 6 roll pins, 3 S07070200 Cat 1 top-link pins, and 3 lynch pins with rings.

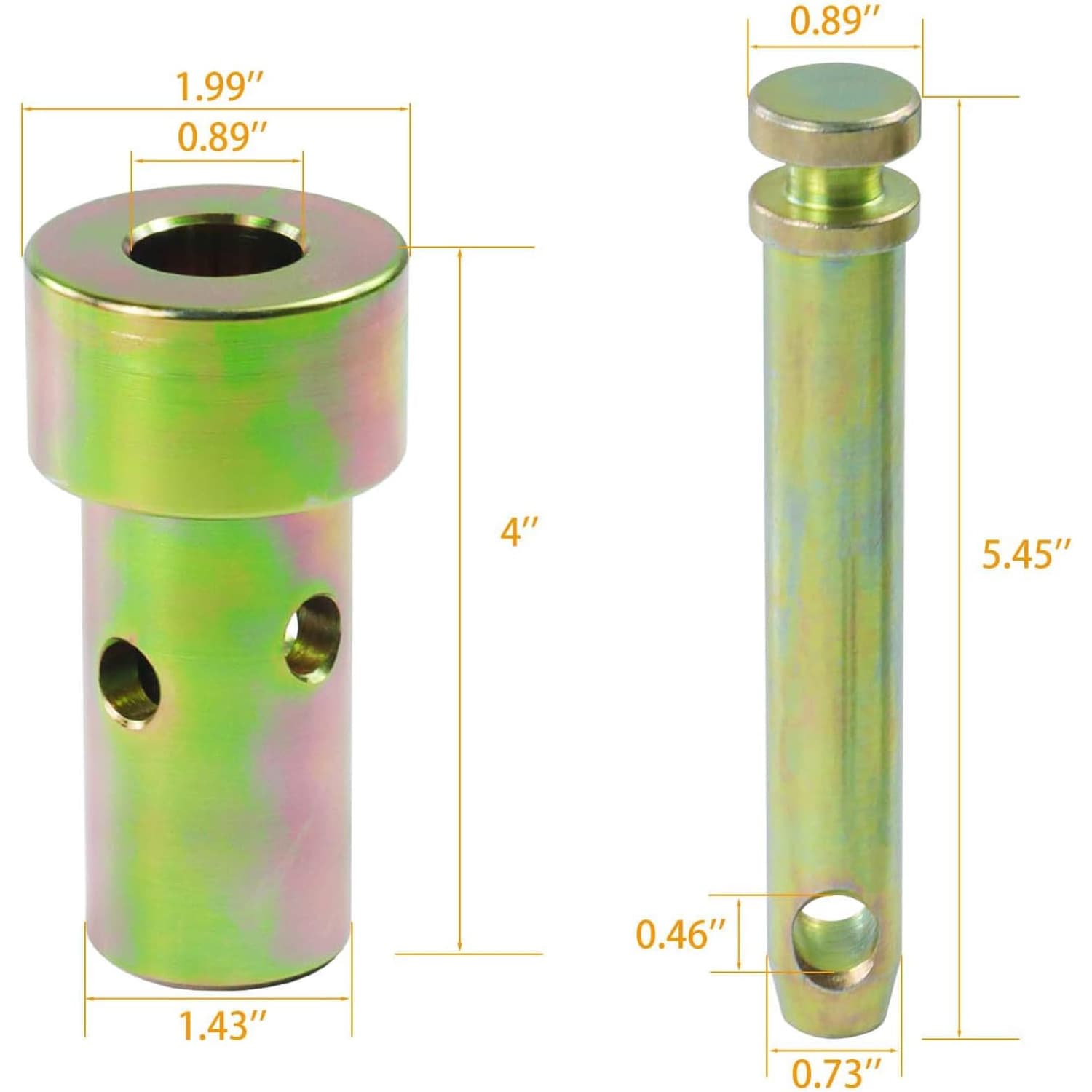

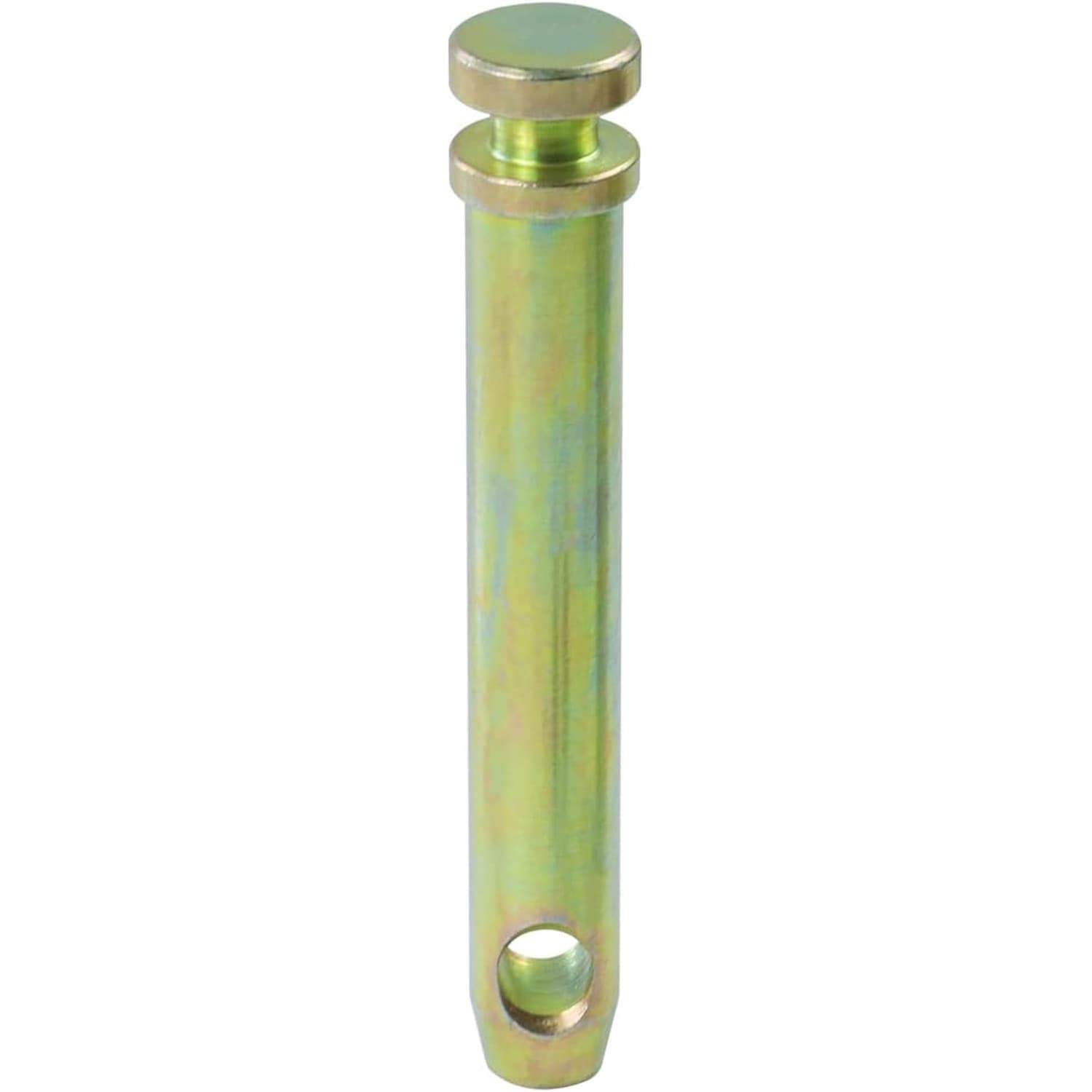

The S07070200 pin replaces Massey Ferguson 195589M1 and AC339942; it has a 3/4-inch diameter, 3-3/4-inch usable length, and 5-1/2-inch overall length. The lynch pin has an 11mm/0.433inch diameter and a 45mm/1.77inch length; the ring ID is 45mm/1.77 inch. The kit is made of zinc-plated steel for CAT 1 (Category 1) quick-hitch implements.

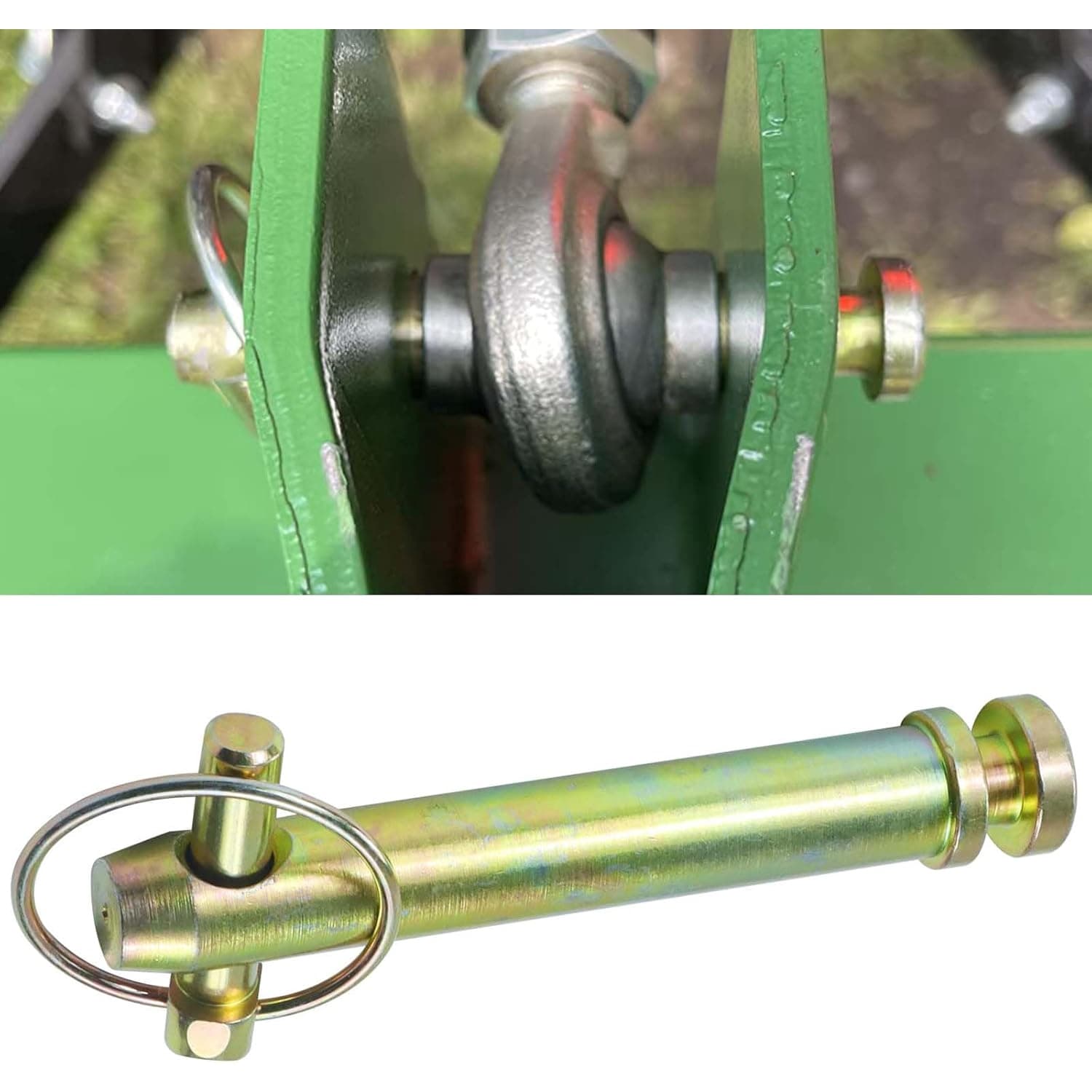

To install it, slide the shoulder bushings over the lower links, secure them with roll pins using a hammer, and fit the top-link bushings over the top-link pin. The title also identifies it for Category I 3-Point Hitch tractors. SKU: sku-17847912798.
