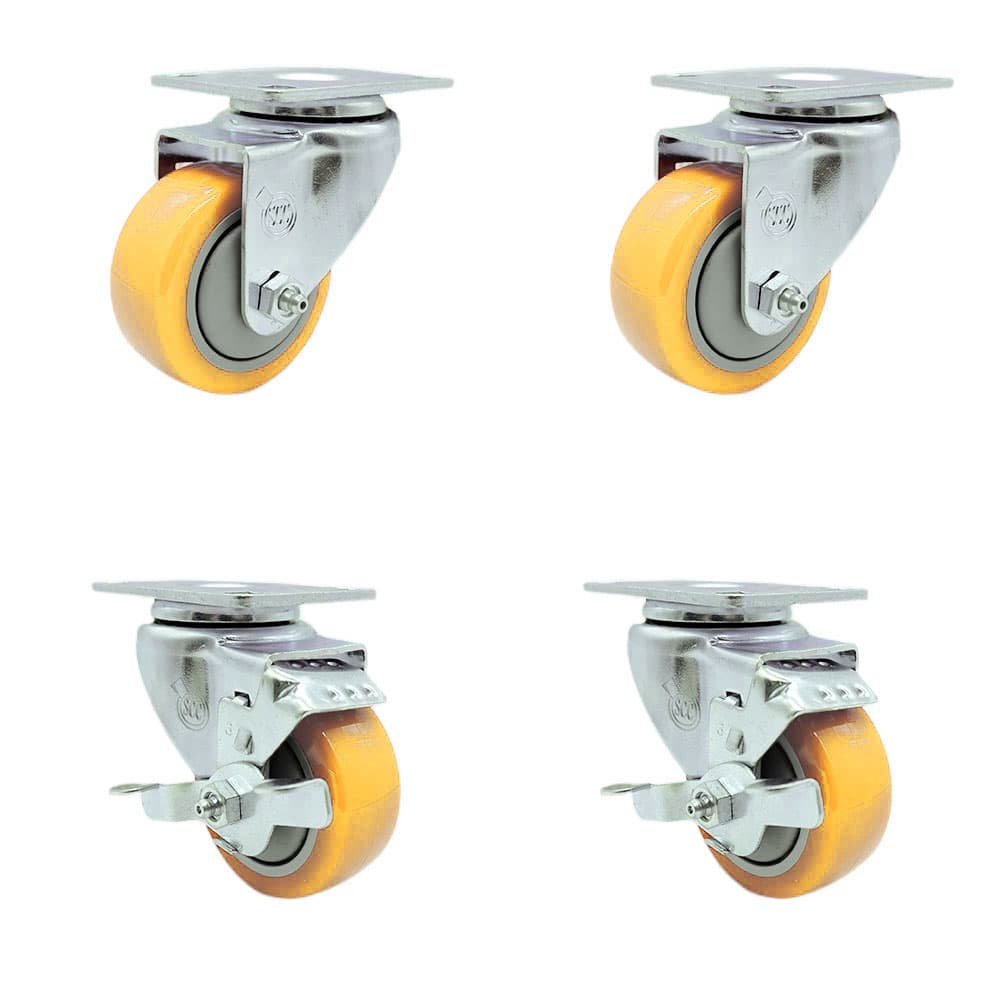

Service Caster SCC-20S314-PPUB-YEL-2-TLB-2 sku-13894220692

Service Caster model SCC-20S314-PPUB-YEL-2-TLB-2, sku-13894220692, is a yellow polyurethane swivel caster set with 2 brakes. It is listed as Furniture Hardware, color Other, size 3" Wheel, UPC 734005417104. The Series #20 offers these wheel and mounting-height combinations: 3 Inch and 4-1/8"; 3-1/2" and 4-5/8"; 4" and 5-1/8"; 5" and 6-1/8"; 6" and 7-1/8".

Other offered wheel colors are Gray, Blue, Black, Maroon and Red. Capacity is 300 lbs per caster for 3" and 3.5" wheels, and 350 lbs per caster for 4", 5" and 6" wheels. The top plate measures 2-1/2" x 3-5/8", with a bolt-hole pattern of 1-3/4" x 2-7/8" to 3"; it can be bolted or welded on. Brake options are top lock, total lock and posi lock.

Top lock presses against the wheel tread to lock the wheel only. Total lock secures both the wheel and swivel. Posi lock also presses against the tread, but its pedal sits above the wheel rather than beside it.
