Service Caster SCC-EX20S314-TPRB-PLB-112-4 sku-5363238226

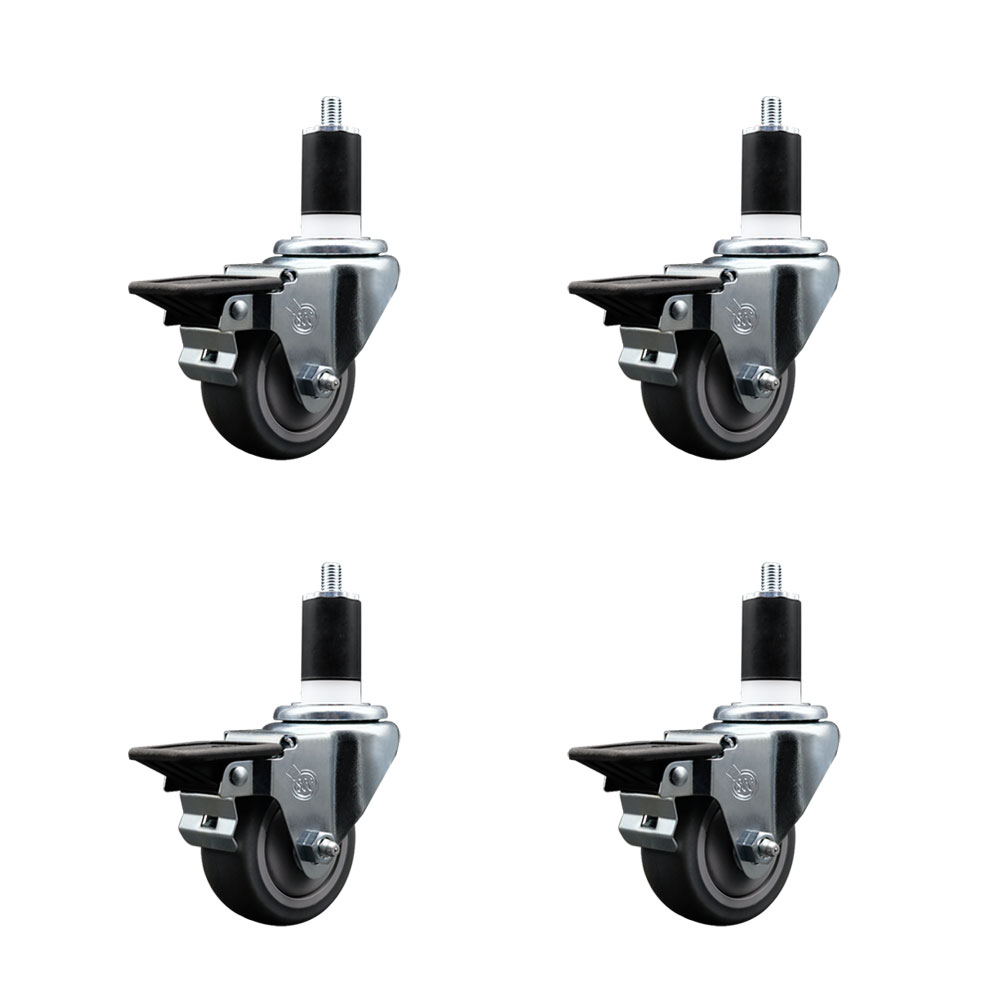

Service Caster Series #20 thermoplastic rubber casters are Furniture Hardware; this set has a 3 Inch wheel and a 1-1/2 Inch expanding stem. Model SCC-EX20S314-TPRB-PLB-112-4, SKU sku-5363238226, UPC 734005207880. The listed color is Other and the size is 3" Wheel.

Across the series, the 3" wheel has a 4-1/8" mounting height, the 3-1/2" wheel 4-5/8", the 4" wheel 5-1/8", the 5" wheel 6-1/8" and the 6" wheel 7-1/8". Capacity per caster is 210 lbs for 3", 230 lbs for 3.5", 250 lbs for 4", and 300 lbs for 5" and 6". The expanding stem is 2-11/16" long and comes in 10 diameters: 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-5/8", 1-3/4" and 1-7/8".

Service Caster recommends measuring the tubing’s inside diameter before ordering to select the stem; contact the seller if you need help measuring or cannot find your size. Available brake options are top lock (TLB), total lock (TTL) and posi lock (PLB). TLB and PLB lock the wheel tread only; TTL locks both the wheel and swivel.
