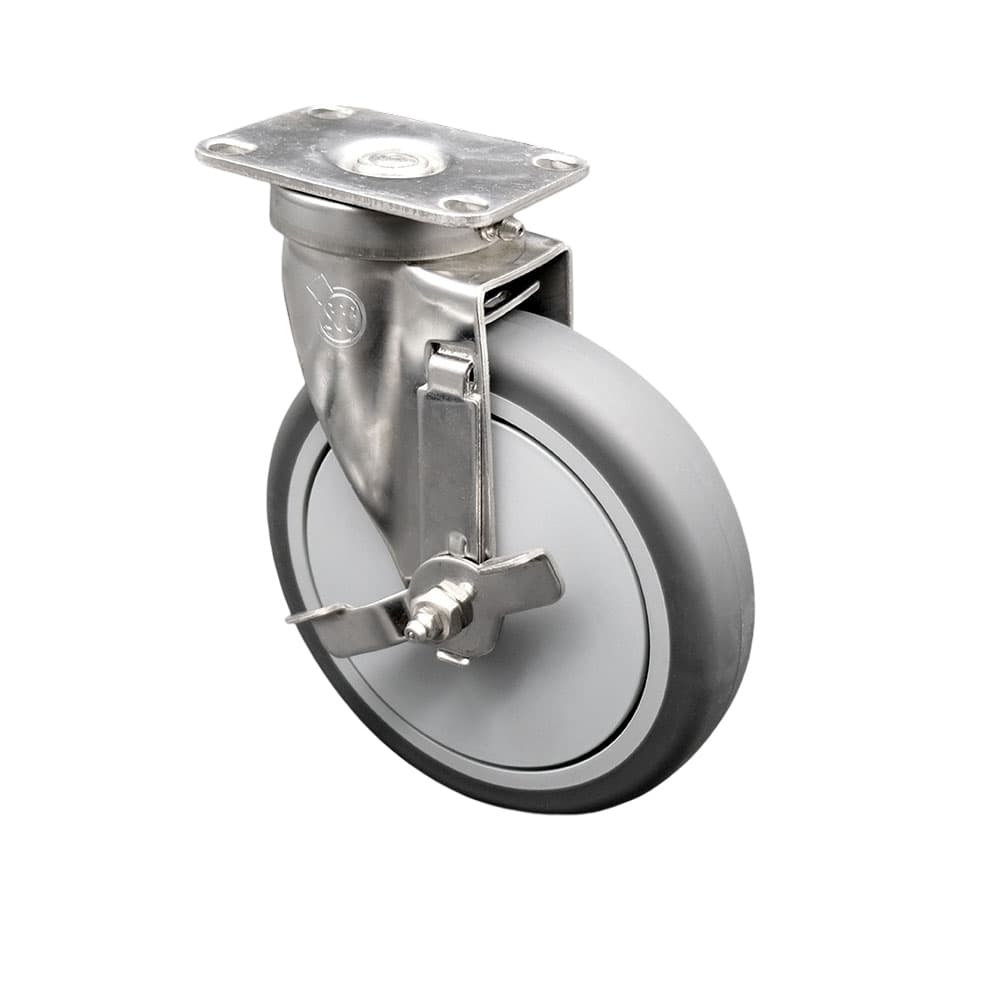

Service Caster SCC-SS20S314-TPRB-TLB Gray Swivel Caster

Service Caster SCC-SS20S314-TPRB-TLB is Gray Furniture Hardware with a 3" Wheel, UPC 670533928234. Series #20 thermoplastic rubber casters have these wheel and mounting-height options: 3 Inch wheel, 4-1/8" height; 3-1/2" wheel, 4-5/8" height; 4" wheel, 5-1/8" height; 5" wheel, 6-1/8" height; and 6" wheel, 7-1/8" height.

Capacity per caster is 210 lbs for 3", 230 lbs for 3.5", 250 lbs for 4", and 300 lbs for 5" and 6". The 2-1/2" x 3-5/8" top plate has a bolt-hole pattern of 1-3/4" x 2-7/8" to 3" and can be bolted or welded on. Brake options are top lock (TLB), total lock (TTL), and posi lock (PLB). TLB and PLB lock the wheel tread; TTL locks both the wheel and swivel.
