Service Caster SCC-SSTTL20S414-HRS-4 Black 4in Casters

Service Caster SCC-SSTTL20S414-HRS-4 is Black Furniture Hardware with a 4" Wheel (4 Inch); UPC 011586528062. These Series #20 hard rubber casters have the following wheel sizes and mounting heights: 3” wheel, 4-1/8”; 3-1/2” wheel, 4-5/8”; 4” wheel, 5-1/8”; and 5” wheel, 6-1/8”. Capacity per caster is 275 lbs for the 3” wheel, 285 lbs for the 3.5” wheel, and 300 lbs for the 4” and 5” wheels.

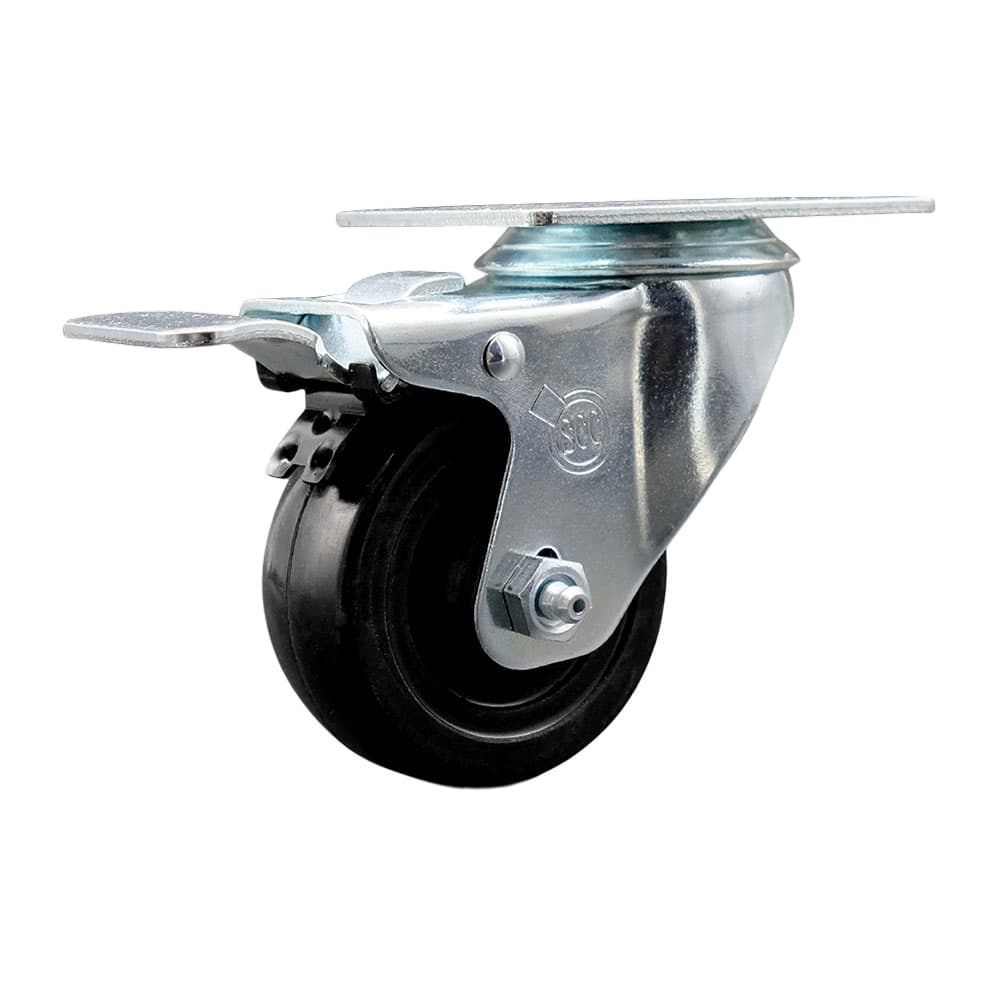

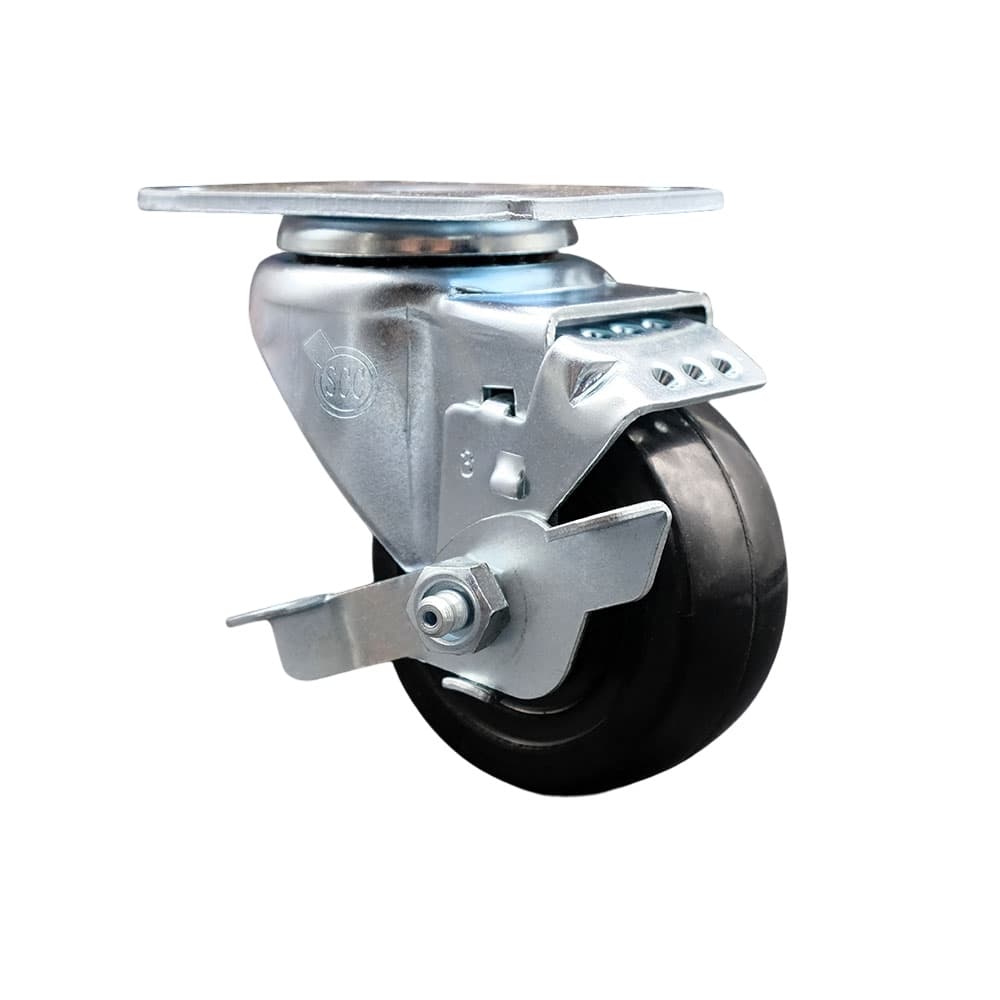

The top plate measures 2-1/2" x 3-5/8", with a bolt-hole pattern of 1-3/4" x 2-7/8" to 3". It can be bolted or welded on. A top lock brake (TLB) holds the wheel tread; a total lock brake (TTL) holds both the wheel and swivel.
